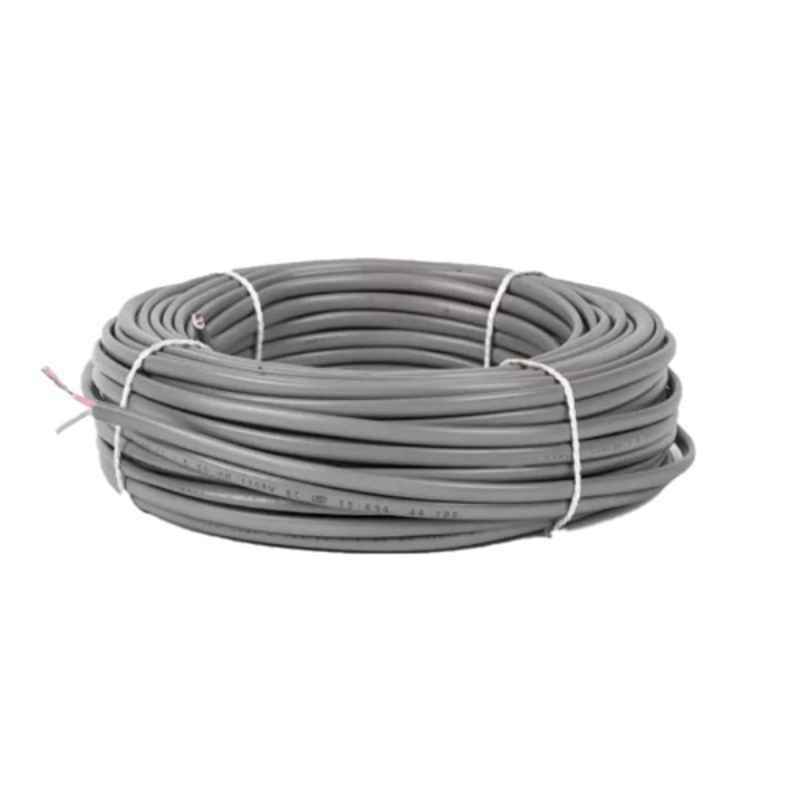

APAR Shakti 0.75 Sqmm Grey FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m

Name: APAR Shakti 0.75 Sqmm Grey FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m
Brand: Apar
SKU: MSN2KM1MJZXX9V
Price: 1228 INR
Availability: OutOfStock

₹1,228 (Incl. of all taxes)

₹1,040 + ₹188 GST

MRP ₹1,629 24% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

50 Years-Powered By E-Beam Technology.
50% More Current Carrying Capacity.
Heat-Resistant at 105 deg C: The Insulation with a Higher Operating Temperature of 105 deg C.
Short Circuit Resistant: With E-Beam Irradiated FR PVC Insulation, it Avoids Short Circuits & Electric Shock.
Flame-Retardant: High Oxygen & Temperature Index Make it Fire Retardant & Self-Extinguishing. it Doesn't Catch Fire on its Own.
Melt-Resistant: The Insulation Does Not Quickly Melt While in Contact with a Hot Object.
Anti-Termite: Effective Defense Against Termites with Advanced Anti-Termite Solutions.
Very Low Leakage: Minimal Leakage, Maximizing Efficiency & Sustainability.
Energy Saving: Energy-Efficient Cable, Powering Sustainability with Every Connect.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (light absorption): 60% Acid gas generation: 20% Service life years: > 25 Years
Cable Length	100 m
Colour	Grey
Conductor Diameter	0.2 mm
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 6 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 7 Amp
Insulation Material	PVC
Insulation Thickness	0.6 mm
Maximum Conductor Resistance at 20 C	26 Ohms
Model	Shakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Conductors	24
Number of Cores	Single
Overall Diameter	2.2 mm
Size(Cross Sectional Area)	0.75 Sq.mm
Standards	IS: 694: 1990
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	750 g

Show All Specifications

Product Details

Introducing the 'APAR Shakti 0.75 Sqmm Grey FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m' from Apar. This high tension cable is designed for industrial use and is perfect for high voltage applications. With a length of 100m, it provides flexibility in installation without compromising on performance.

The cable features a conductor diameter of 0.2mm, ensuring efficient electrical conductivity. It is insulated with grey FR PVC, which offers excellent flame resistance and durability. The unsheathed single core design makes it easy to handle and install.

Please note that the images shown here are for illustration purposes only, and the actual product size may vary. Additionally, this cable has a temperature index of 250 degrees Celsius, making it suitable for use in high-temperature environments.

The conductor material used in this cable is copper, known for its superior conductivity and corrosion resistance. The model name of this cable is Shakti, representing its strength and reliability.

With an overall diameter of 2.2mm, this cable is compact and space-saving. Whether it's for industrial applications or commercial settings, the 'APAR Shakti 0.75 Sqmm Grey FR PVC Insulated Unsheathed Single Core industrial Cable' is a reliable choice. Upgrade your electrical system with this high-quality cable from Apar.
