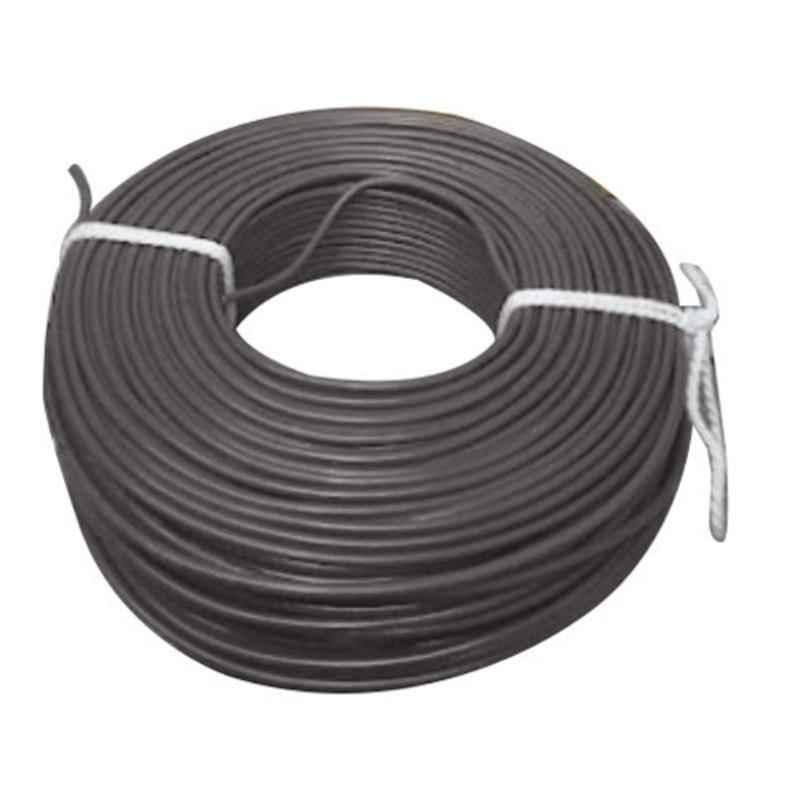

APAR Shakti 1 Sqmm Black FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m

Name: APAR Shakti 1 Sqmm Black FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m
Brand: Apar
SKU: MSN8KLPOJODR5V
Price: 1588 INR
Availability: OutOfStock

₹1,588 (Incl. of all taxes)

₹1,345 ₹243 GST

MRP ₹2,094 24% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

50 Years-Powered By E-Beam Technology.
50% More Current Carrying Capacity.
Heat-Resistant at 105 deg C: The Insulation with a Higher Operating Temperature of 105 deg C.
Short Circuit Resistant: With E-Beam Irradiated FR PVC Insulation, it Avoids Short Circuits & Electric Shock.
Flame-Retardant: High Oxygen & Temperature Index Make it Fire Retardant & Self-Extinguishing. it Doesn't Catch Fire on its Own.
Melt-Resistant: The Insulation Does Not Quickly Melt While in Contact with a Hot Object.
Anti-Termite: Effective Defense Against Termites with Advanced Anti-Termite Solutions.
Very Low Leakage: Minimal Leakage, Maximizing Efficiency & Sustainability.
Energy Saving: Energy-Efficient Cable, Powering Sustainability with Every Connect.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (light absorption): 60% Acid gas generation: 20% Service life years: > 25 Years
Cable Length	100 m
Colour	Black
Conductor Diameter	0.2 mm
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 11 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 12 Amp
Insulation Material	PVC
Insulation Thickness	0.6 mm
Maximum Conductor Resistance at 20 C	19.5 Ohms
Model	Shakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Conductors	32
Number of Cores	Single
Overall Diameter	2.4 mm
Size(Cross Sectional Area)	1 Sq.mm
Standards	IS: 694: 1990
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	1000 g

Show All Specifications

Product Details

The APAR Shakti 1 Sqmm Black FR PVC Insulated Unsheathed Single Core industrial Cable is specifically designed for high tension applications. With a length of 100m, this cable provides a reliable and efficient solution for industrial use. The conductor diameter measures at 0.2mm, ensuring optimal electrical conductivity. The cable is insulated with black FR PVC material, adding durability and fire resistance to the product. Please note that the images shown are for illustrative purposes only, and the actual product size may vary. This cable is part of the Apar brand, known for its quality and performance. The temperature index of this cable is an impressive 250 degrees Celsius, making it suitable for use in extreme conditions. The conductor material is copper, which guarantees excellent conductivity. The model name of this cable is Shakti. Its overall diameter is 2.4mm, ensuring convenient installation. Trust the APAR Shakti cable for high tension applications that require a reliable and durable solution.
