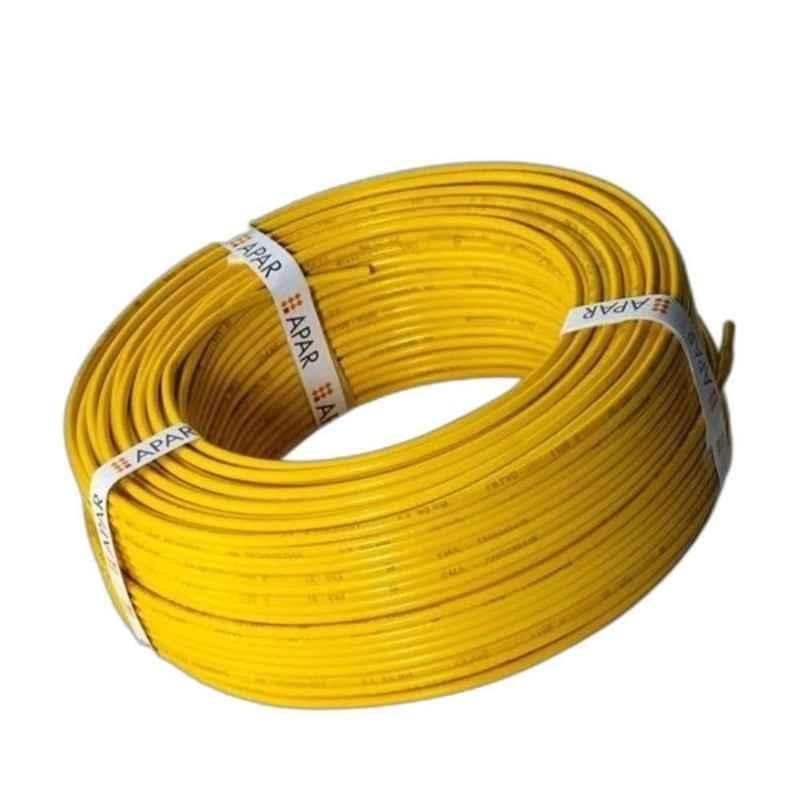

APAR Shakti 1 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m

Name: APAR Shakti 1 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m
Brand: Apar
SKU: MSNV5OOJLX0056
Price: 1588 INR
Availability: OutOfStock

₹1,588 (Incl. of all taxes)

₹1,345 ₹243 GST

MRP ₹2,094 24% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

50 Years-Powered By E-Beam Technology.
50% More Current Carrying Capacity.
Heat-Resistant at 105 deg C: The Insulation with a Higher Operating Temperature of 105 deg C.
Short Circuit Resistant: With E-Beam Irradiated FR PVC Insulation, it Avoids Short Circuits & Electric Shock.
Flame-Retardant: High Oxygen & Temperature Index Make it Fire Retardant & Self-Extinguishing. it Doesn't Catch Fire on its Own.
Melt-Resistant: The Insulation Does Not Quickly Melt While in Contact with a Hot Object.
Anti-Termite: Effective Defense Against Termites with Advanced Anti-Termite Solutions.
Very Low Leakage: Minimal Leakage, Maximizing Efficiency & Sustainability.
Energy Saving: Energy-Efficient Cable, Powering Sustainability with Every Connect.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (light absorption): 60% Acid gas generation: 20% Service life years: > 25 Years
Cable Length	100 m
Colour	Yellow
Conductor Diameter	0.2 mm
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 11 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 12 Amp
Insulation Material	PVC
Insulation Thickness	0.6 mm
Maximum Conductor Resistance at 20 C	19.5 Ohms
Model	Shakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Conductors	32
Number of Cores	Single
Overall Diameter	2.4 mm
Size(Cross Sectional Area)	1 Sq.mm
Standards	IS: 694: 1990
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	1000 g

Show All Specifications

Product Details

The APAR Shakti 1 Sqmm Yellow FR PVC Insulated Unsheathed Single Core Industrial Cable, Length: 100m, is a high-quality product specifically designed for high tension applications. Manufactured by the trusted brand Apar, this cable ensures reliable performance and durability.

Featuring a length of 100m, this cable provides ample reach for various industrial installations. With a conductor diameter of 0.2mm and an overall diameter of 2.4mm, it offers a perfect balance between flexibility and strength.

The cable is insulated with yellow FR PVC, which not only provides effective insulation but also enhances its fire resistance properties. This makes it suitable for use in challenging environments where safety is of utmost importance.

It is important to note that the images shown are for illustration purposes only, and the actual product size may vary. Additionally, the temperature index of this cable is an impressive 250 degrees Celsius, ensuring that it can withstand extreme heat without compromising its performance.

The conductor material used in the construction of this cable is copper, which offers excellent conductivity and low resistance. This ensures reliable and uninterrupted power transmission.

Overall, the APAR Shakti 1 Sqmm Yellow FR PVC Insulated Unsheathed Single Core Industrial Cable is a reliable and efficient solution for high tension applications. With its superior features and excellent build quality, it is an ideal choice for various industrial needs.
