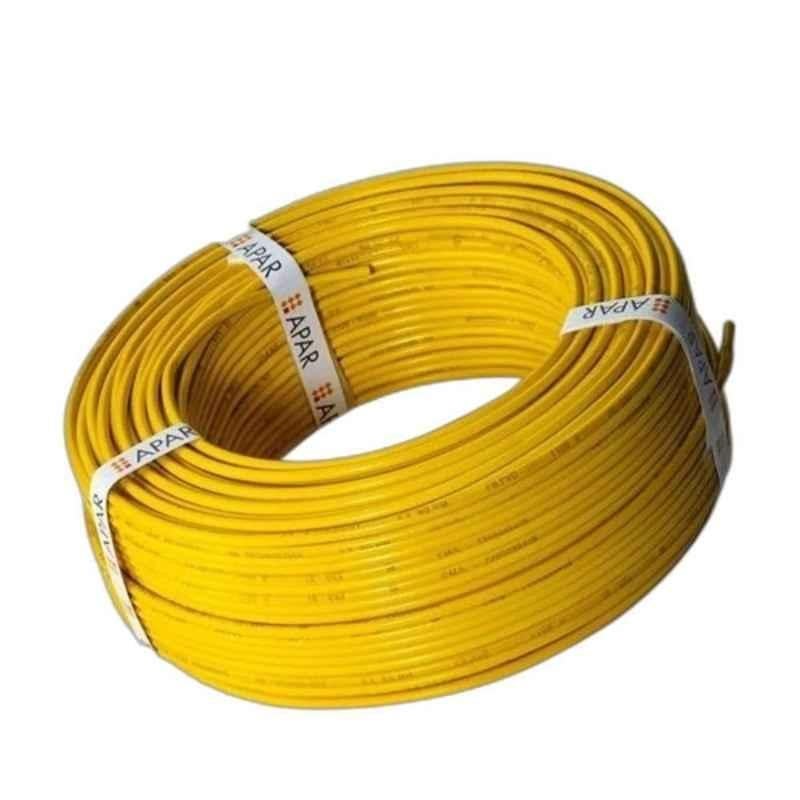

APAR Shakti 2.5 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m

Name: APAR Shakti 2.5 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m
Brand: Apar
SKU: MSNO5WN7DVXR51
Price: 3738 INR
Availability: OutOfStock

₹3,738 (Incl. of all taxes)

₹3,167 ₹571 GST

MRP ₹4,936 24% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

50 Years-Powered By E-Beam Technology.
50% More Current Carrying Capacity.
Heat-Resistant at 105 deg C: The Insulation with a Higher Operating Temperature of 105 deg C.
Short Circuit Resistant: With E-Beam Irradiated FR PVC Insulation, it Avoids Short Circuits & Electric Shock.
Flame-Retardant: High Oxygen & Temperature Index Make it Fire Retardant & Self-Extinguishing. it Doesn't Catch Fire on its Own.
Melt-Resistant: The Insulation Does Not Quickly Melt While in Contact with a Hot Object.
Anti-Termite: Effective Defense Against Termites with Advanced Anti-Termite Solutions.
Very Low Leakage: Minimal Leakage, Maximizing Efficiency & Sustainability.
Energy Saving: Energy-Efficient Cable, Powering Sustainability with Every Connect.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (light absorption): 60% Acid gas generation: 20% Service life years: > 25 Years
Cable Length	100 m
Colour	Yellow
Conductor Diameter	0.25 mm
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 18 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 18 Amp
Insulation Material	PVC
Insulation Thickness	0.8 mm
Maximum Conductor Resistance at 20 C	7.98 Ohms
Model	Shakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Conductors	50
Number of Cores	Single
Overall Diameter	3.5 mm
Size(Cross Sectional Area)	2.5 Sq.mm
Standards	IS: 694: 1990
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	2500 g

Show All Specifications

Product Details

The APAR Shakti 2.5 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable is designed specifically for high tension cable applications. With a length of 100m, this cable is perfect for long-distance installations. The conductor diameter of 0.25mm ensures excellent conductivity, resulting in efficient power transmission. Please note that the images shown are for illustration purposes only, and the actual product size may vary. This cable features a temperature index of 250 degrees Celsius, making it suitable for use in high-temperature environments. The conductor material is copper, known for its exceptional conductivity and durability. The model of this cable is Shakti, which signifies its strength and reliability. With an overall diameter of 3.5mm, this cable can easily be installed in cramped spaces. Trust the Apar brand for quality and reliability in all your cable needs.
