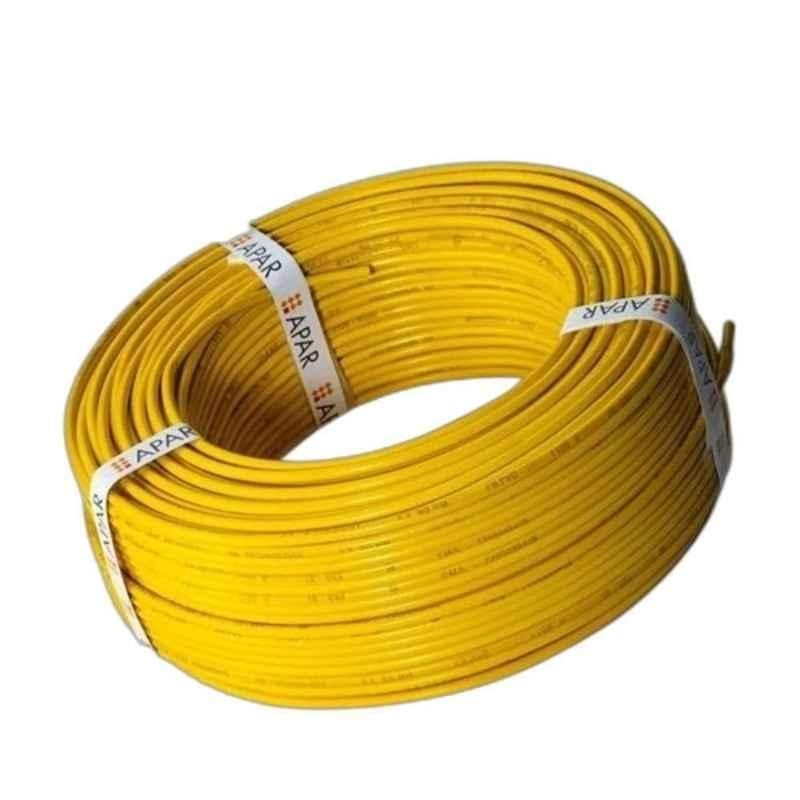

APAR Shakti 4 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m

Name: APAR Shakti 4 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable, Length: 100 m
Brand: Apar
SKU: MSN153V32JPJK3
Price: 5668 INR
Availability: OutOfStock

₹5,668 (Incl. of all taxes)

₹4,803 ₹865 GST

MRP ₹7,475 24% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

50 Years-Powered By E-Beam Technology.
50% More Current Carrying Capacity.
Heat-Resistant at 105 deg C: The Insulation with a Higher Operating Temperature of 105 deg C.
Short Circuit Resistant: With E-Beam Irradiated FR PVC Insulation, it Avoids Short Circuits & Electric Shock.
Flame-Retardant: High Oxygen & Temperature Index Make it Fire Retardant & Self-Extinguishing. it Doesn't Catch Fire on its Own.
Melt-Resistant: The Insulation Does Not Quickly Melt While in Contact with a Hot Object.
Anti-Termite: Effective Defense Against Termites with Advanced Anti-Termite Solutions.
Very Low Leakage: Minimal Leakage, Maximizing Efficiency & Sustainability.
Energy Saving: Energy-Efficient Cable, Powering Sustainability with Every Connect.

Show All Key Features

Product Specifications

Brand	Apar
Additional Details	Temperature Index: 250 deg C Oxygen Index: > 29% Smoke density (light absorption): 60% Acid gas generation: 20% Service life years: > 25 Years
Cable Length	100 m
Colour	Yellow
Conductor Diameter	0.3 mm
Conductor Material	Copper
Current Carrying Capacity	In Conduit Trunking: 24 Amp Unenclosed-Clipped Directly to Surface or on cable tray: 29 Amp
Insulation Material	PVC
Insulation Thickness	0.8 mm
Maximum Conductor Resistance at 20 C	4.95 Ohms
Model	Shakti
Notes	Images shown here are for illustration purpose only.Actual product size may vary
Number of Conductors	56
Number of Cores	Single
Overall Diameter	4 mm
Size(Cross Sectional Area)	4 Sq.mm
Standards	IS: 694: 1990
Country of origin	India
Manufacturer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Packer Details	APAR house, Bldg no. 4 & 5, Corporate Park, V.N. Purav marg, Chembur Mumbai- 400 071. India +9122 - 25263400 +9122 - 67800400 FAX: +9122 - 25246326 corporate@apar.com
Common/Generic Name	FR PVC Insulated Unsheathed Single Core industrial Cable
Dimensions LxWxH	21.7x21.5x5.7 cm
Weight	4000 g

Show All Specifications

Product Details

The APAR Shakti 4 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable is the perfect solution for high tension cable needs. With a length of 100 meters, this cable provides ample reach for various applications. The cable features a durable PVC insulation, ensuring reliable performance and protection against electrical hazards. The conductor diameter of 0.3 mm and overall diameter of 4 mm make it both sturdy and easy to handle. The cable’s temperature index of 250 degrees Celsius guarantees safe operation even in extreme conditions. Made with high-quality copper conductor material, it delivers superior conductivity. The APAR brand is known for its exceptional quality and durability, and this cable is no exception. Please note that the images provided are for illustrative purposes only, and the actual product size may vary. Upgrade your high tension cable needs with the APAR Shakti 4 Sqmm Yellow FR PVC Insulated Unsheathed Single Core industrial Cable.
