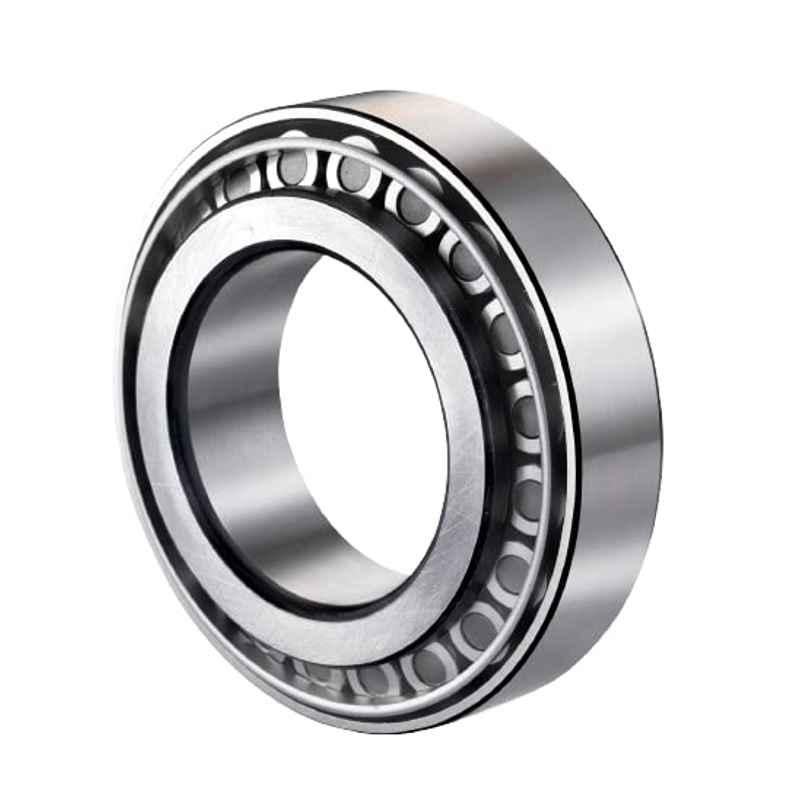

B K Jagan & Co 45x75x22mm Tapered Roller Bearing, 32009

Name: B K Jagan & Co 45x75x22mm Tapered Roller Bearing, 32009
Brand: B K Jagan & Co
SKU: MSNM9XYZZM4DKJ
Price: 1063 INR
Availability: OutOfStock

₹1,063 (Incl. of all taxes)

₹898 + ₹165 GST

MRP ₹1,656 35% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

The Inner & Outer Ring Rare Segments of Cones & the Rollers are Tapered so that the Conical Surfaces of the Raceways & the Roller Axes if Projected, Would All Meet at a Common Point on the Main Axis of the Bearing.
This Geometry Makes the Motion of the Cones Remain Coaxial, with No Sliding Motion Between the Raceways & the Outside Diameter of the Rollers, Conical Geometry Creates a Linear Contact Patch Which Permits Greater Loads to be Carried than with Spherical (Ball) Bearings Which Have Point Contact.
The Geometry Means that the Tangential Speeds of the Surfaces of Each of the Rollers are the Same as Their Raceways Along the Whole Length of the Contact Patch & No Differential Scrubbing Occurs.

Product Specifications

Brand	B K Jagan & Co
Bearing Number	32009
Bore Diameter	45 mm
Outer Diameter	75 mm
Type of Roller Bearing	Tapered
Notes	Images are for Reference Purposes Only
Width	22 mm
Country of origin	India
Manufacturer Details	SCO 40, Sector 28-C, Chandigarh-160002, India
Packer Details	SCO 40, Sector 28-C, Chandigarh-160002, India
Common/Generic Name	Roller Bearings
Dimensions LxWxH	4.5x7.5x2.2 cm
Weight	300 g

Show All Specifications

Product Details

The B K Jagan & Co 45x75x22mm Tapered Roller Bearing 32009 features precisely engineered inner and outer rings with tapered cones and rollers. This design ensures all conical surfaces align to a common point on the bearing's main axis, allowing coaxial motion without sliding between raceways and rollers. Its conical geometry forms a linear contact patch, enabling it to carry greater loads compared to spherical ball bearings with point contact. Additionally, the consistent tangential speeds along the roller surfaces prevent differential scrubbing, enhancing durability and performance in demanding applications.
