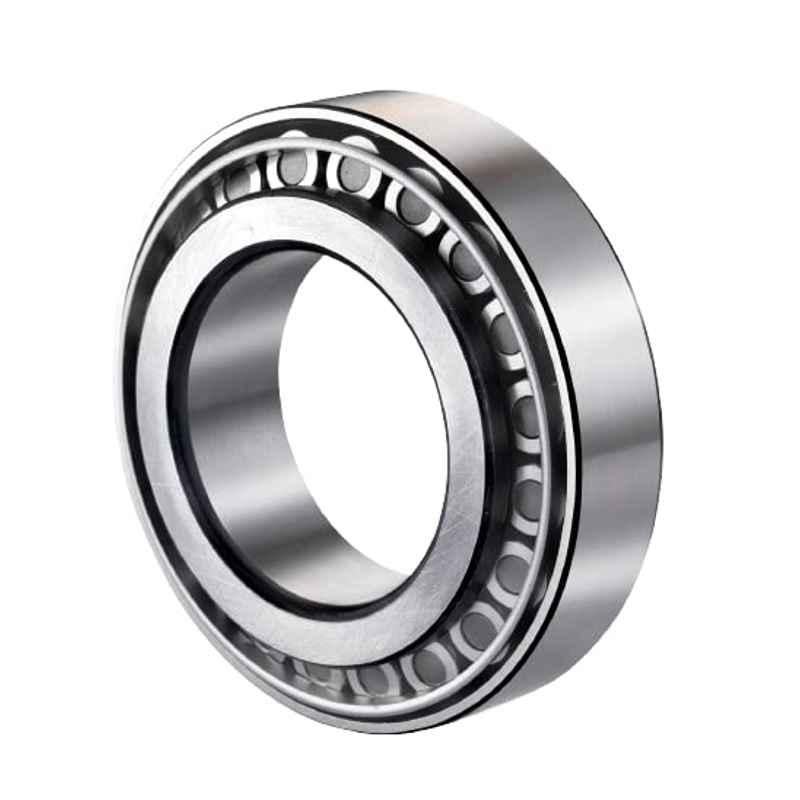

B K Jagan & Co 45x85x24mm Tapered Roller Bearing, 32209

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

The Inner & Outer Ring Rare Segments of Cones & the Rollers are Tapered so that the Conical Surfaces of the Raceways & the Roller Axes if Projected, Would All Meet at a Common Point on the Main Axis of the Bearing.
This Geometry Makes the Motion of the Cones Remain Coaxial, with No Sliding Motion Between the Raceways & the Outside Diameter of the Rollers, Conical Geometry Creates a Linear Contact Patch Which Permits Greater Loads to be Carried than with Spherical (Ball) Bearings Which Have Point Contact.
The Geometry Means that the Tangential Speeds of the Surfaces of Each of the Rollers are the Same as Their Raceways Along the Whole Length of the Contact Patch & No Differential Scrubbing Occurs.

Product Specifications

Brand	B K Jagan & Co
Bearing Number	32209
Bore Diameter	45 mm
Outer Diameter	85 mm
Type of Roller Bearing	Tapered
Notes	Images are for Reference Purposes Only
Width	24 mm
Country of origin	India
Manufacturer Details	SCO 40, Sector 28-C, Chandigarh-160002, India
Packer Details	SCO 40, Sector 28-C, Chandigarh-160002, India
Common/Generic Name	Roller Bearings
Dimensions LxWxH	4.5x8.5x2.4 cm
Weight	300 g

Show All Specifications

Product Details

The B K Jagan & Co 32209 tapered roller bearing, measuring 45x85x24mm, delivers exceptional durability and precision. Its tapered inner and outer ring cones, along with tapered rollers, align to a single common point on the main axis, ensuring coaxial motion without sliding between raceways and roller surfaces. This unique conical geometry creates a linear contact patch, allowing it to handle greater loads compared to spherical bearings with point contact. With matching tangential speeds along the contact patch, it prevents differential scrubbing, making it an ideal choice for reliable, high-performance roller bearing applications.
