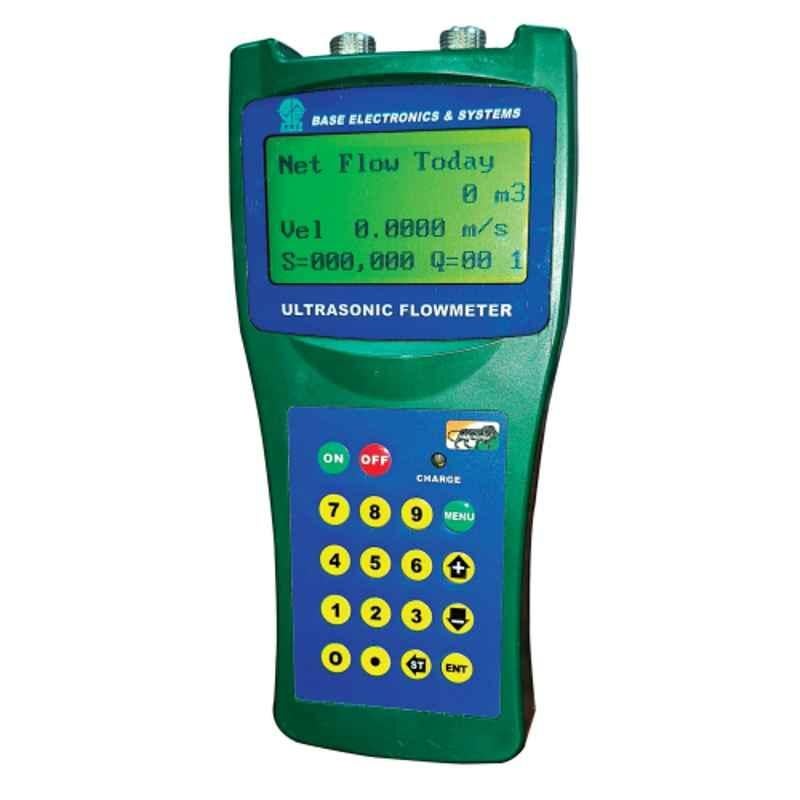

BASE BHUFM-1000 ABS Handheld Portable Ultrasonic Flow Meter

AVAILABLE ON REQUEST

About This Product

Key Features

Cost Effective & Versatile.
High Accuracy, Handheld Design for Main Unit, Light Weight, Compact Enclosure, Portable Case for All Accessories.
Wide Flow Measurement Range, Bi-Directional, Totalizer for Net, Positive & Negative Flow, Wide Pipe Size Range, Rechargeable Battery for 16 hr of Operation & Built-in Data Logger.

Product Specifications

Brand	BASE
Accuracy	±1% of Reading at Rates >0.6 ft/s. ±0.5% with on-site Calibration
Additional Details	Liquid Temperature: 0 to 90 deg C Rate Units: English (U.S) or Metric Totaliser: 7 Digit Totals for Net, Positive & Negative Flow Liquid Types: Virtually all Liquids
Battery Type	AAA
Diameter	DN15 to DN 6000
Display Type	4x16 English Letters
Housing Material	ABS
Interface	RS-232C Baud-Rate: from 75 to 115,200 bps
Linearity	0.50%
Model	BHUFM-1000
Notes	Images are for Reference Purpose Only
Protection Class	Transmitter: IP65 Transducer: IP68
Repeatability	0.20%
Response Time	0-999 sec, User-Configurable
Security	Setup Lockout, Access Code Needed for Unlocking
Suitable For	Flow Surveys & Closed Pipe Application where Non-Invasive Measurement of Liquids is Required
Velocity	±0.03 to ±105 ft/s (±0.01 to ±30 m/s), bi-directional
Voltage	100-240 V AC
Country of origin	India
Manufacturer Details	BASE Electronics & Systems, 144 Seevaram 1st Street, Perungudi Chennai
Packer Details	BASE Electronics & Systems, 144 Seevaram 1st Street, Perungudi Chennai
Common/Generic Name	Flow Meters
Dimensions LxWxH	205x103x37 mm
Weight	450 g

Show All Specifications

Product Details

BASE BHUFM-1000 ABS Handheld Portable Ultrasonic Flow Meter is a premium quality product from BASE . Moglix is a well-known ecommerce platform for qualitative range of Flow Meters. All BASE BHUFM-1000 ABS Handheld Portable Ultrasonic Flow Meter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture BASE BHUFM-1000 ABS Handheld Portable Ultrasonic Flow Meter, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. BASE products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of BASE Flow Meters .
