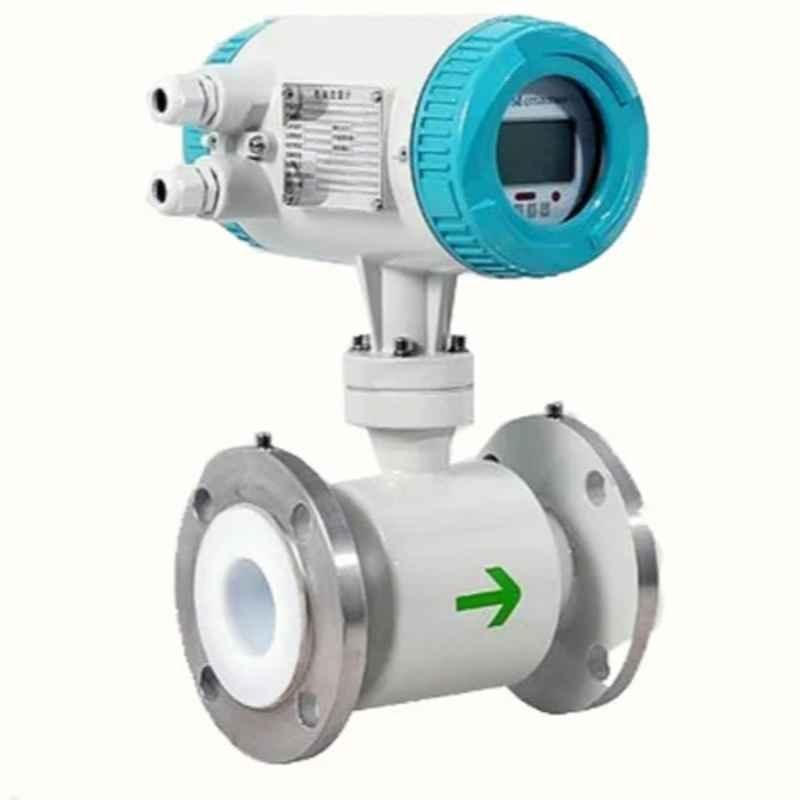

BASE EMAG Stainless Steel Digital Electromagnetic Flow Meter

AVAILABLE ON REQUEST

About This Product

Key Features

No Moving Parts in the Measuring Pipe to Facilitate Maintenance & Management.
No Obstacle Parts, No Pressure Loss, Sensor with Long Service Life.
Conductivity of Measured Liquid Can Reach at Least 5 Us/cm.
Various Liner & Electrode Materials Satisfy Most Industrial Applications, High Accuracy, Generally �0.5%, �0.3% & �0.2% & F46 Liner is Suitable for Vacuum Tube.

Show All Key Features

Product Specifications

Brand	BASE
Accuracy	±0.5%
Additional Details	Output: 4-20 mA Process Connection: Flange Alarm: Empty Pipe, Excitation & Upper Lower Limit
Ambient Temperature	-25 to 60 deg C
Diameter	DN 25 to 450 mm
Display Type	Digital
Flow Range	0.02 to 6000 m3/hr
Interface	RS485
Material	Stainless Steel & Carbon Steel
Model	EMAG
Nominal Pressure	0.6Mpa, 1.0Mpa, 1.6Mpa, 2.5Mpa & 4.0 Mpa
Notes	Images are for Reference Purpose Only
Protection Class	IP65
Voltage	85-250 V AC 20-36 V DC
Country of origin	India
Manufacturer Details	BASE Electronics & Systems, 144 Seevaram 1st Street, Perungudi Chennai
Packer Details	BASE Electronics & Systems, 144 Seevaram 1st Street, Perungudi Chennai
Common/Generic Name	Flow Meters
Dimensions LxWxH	200x150x120.7 mm
Weight	10 kg

Show All Specifications

Product Details

BASE EMAG Stainless Steel Digital Electromagnetic Flow Meter is a premium quality product from BASE . Moglix is a well-known ecommerce platform for qualitative range of Flow Meters. All BASE EMAG Stainless Steel Digital Electromagnetic Flow Meter are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture BASE EMAG Stainless Steel Digital Electromagnetic Flow Meter, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. BASE products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of BASE Flow Meters .
