Belden 9463 1 Pair 20AWG Beldfoil Tinned Copper Conductors Twinax Blue Hose Twinaxial Cable, Length: 305 m

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Belden
Applications	Indoor, Sunlight Resistance Harsh Environment, Allen Bradley Data Highway Communication Interface Between PLC Processors, I/O Devices, Operator Interfaces, Computers & Other Intelligent Devices, PLC Processor Interlocking, Peer-to-Peer Messaging, Remote Programming, Troubleshooting, I/O Updates, etc
Bending Radius	Min Stationary: 2.4 inch Min Installation: 2.4 inch
Colour	Clear & Blue
Conductor Material	Tinned Copper
Impedance	70 ohm
Insulated Material	Polyethylene
Insulation Thickness	0.019 inch
Item Code	9463
Jacket Material	Polyvinyl Chloride
Length	305 m
Nominal Diameter	insulation: 0.96 mm Outer Jacket: 5.4 mm

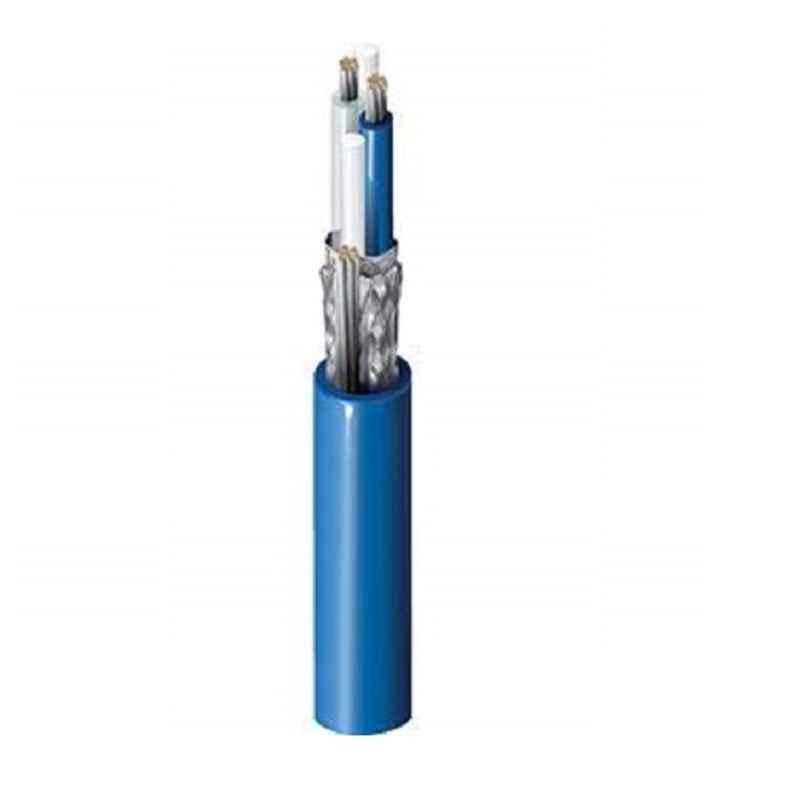

Notes	image is only for reference purpose
Number of Pairs	1
Number of Strands	7x28
Operating Temperature Range	-40 to 80 deg C
Standard	UL1685 UL Loading, IEC 60332-1-2, Article 725, Article 800, CM, CL2, P-7K-SC-182141-MSHA, 1770-CD, 2464
Storage Temperature	-40 to +80 deg C
Tension	Max. Pull Tension: 48 lbs
Voltage	300 V
Wire Gauge	20 AWG
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Cable
Weight	22 g

Show All Specifications

Product Details

The Belden 9463 Twinax Blue Hose Twinaxial Cable is an essential tool in the field of communication and networking. Designed for indoor applications, it ensures reliable and efficient transmission of signals while also providing excellent resistance against sunlight. With a length of 305m, this cable offers extensive coverage for your networking needs.

This premium cable is constructed with 20AWG Beldfoil tinned copper conductors, ensuring superior conductivity and durability. The cable meets the standards of UL1685 UL Loading, IEC 60332-1-2, Article 725, Article 800, CM, CL2, P-7K-SC-182141-MSHA, 1770-CD, 2464, guaranteeing its quality and compliance.

Featuring a jacket made of polyvinyl chloride, the cable offers robust protection and durability. Additionally, the nominal diameter of the insulation measures 0.96mm, further enhancing the cable's performance and longevity.

Please note that the image provided is for reference purposes only. The actual product may vary slightly in appearance. The conductor material used in this cable is tinned copper, ensuring optimal signal conductivity.

The Belden 9463 Twinax Blue Hose Twinaxial Cable also boasts a maximum pull tension of 48lbs, allowing for secure and hassle-free installation. Experience seamless connectivity and reliable networking with this top-of-the-line cable from Belden.

Browse through the extensive list of Communication & Networking Cables at Moglix. Shop online for other Belden Communication & Networking Cables. available at Moglix in the lowest price range.
