Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m

Name: Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m
Brand: Belden
SKU: MSNZ526LYQ4M9X
Price: 4671 INR
Availability: OutOfStock

₹4,671 (Incl. of all taxes)

₹3,963 ₹708 GST

MRP ₹5,173 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	200 m
Nominal Diameter	5 mm

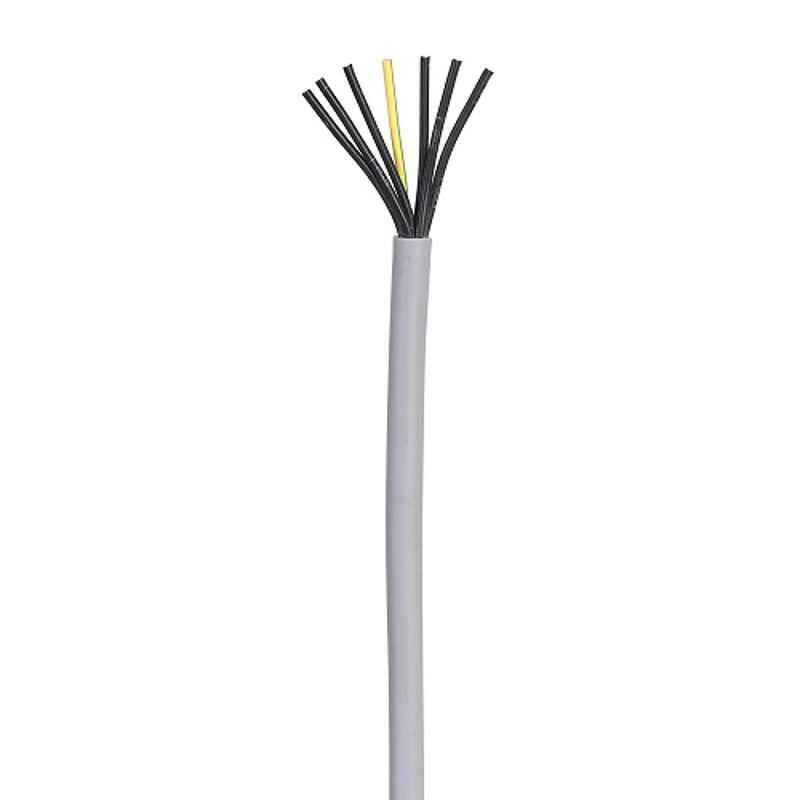

Notes	image is only for reference purpose
Number of Cores	2
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 36 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Dimensions LxWxH	20x20x5 cm
Weight	16 g

Show All Specifications

Product Details

Introducing the Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, designed specifically for the Multicore Cables category. As a trusted brand in the industry, Belden is known for its exceptional quality and reliability. This cable is perfect for both occasional flexing and fixed locations, making it versatile for various applications.

With its unshielded design, this cable provides efficient and effective transmission of signals. It meets the standards of DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1-2, ensuring optimum performance and compliance.

Designed with a nominal cable weight of 36 kg/km, this cable is lightweight and easy to handle. The jacket material is made of durable Polyvinyl Chloride (PVC) to provide protection against external elements. With a nominal diameter of 5 mm, this cable is compact and easy to install.

Please note that the image provided is for reference purposes only. For a reliable and high-quality multicore cable that meets your needs, choose the Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable.
