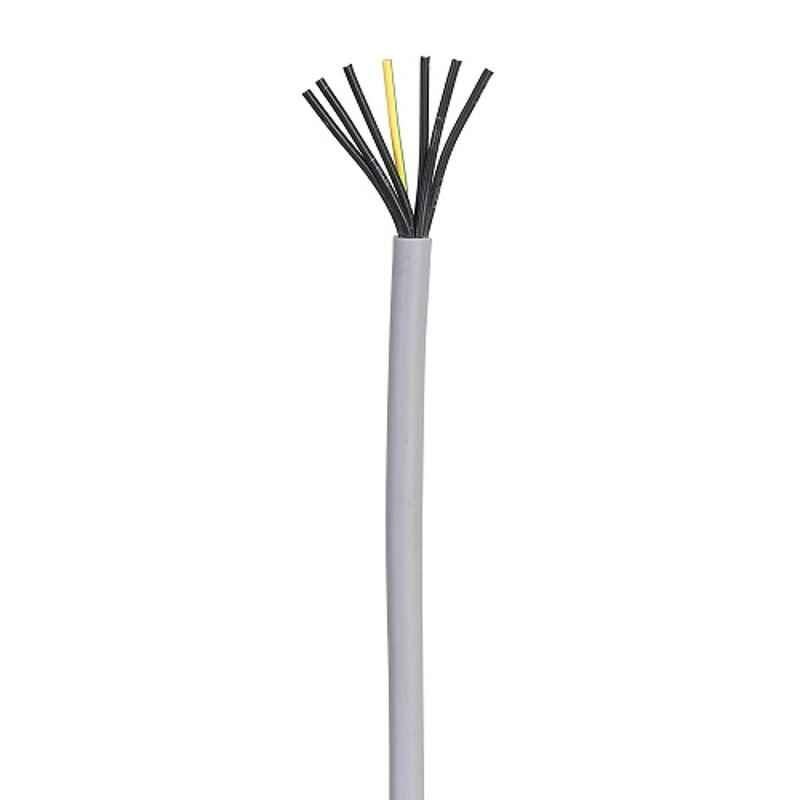

Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 500 m

Name: Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 500 m
Brand: Belden
SKU: MSN457M8QWDQ9J
Price: 13604 INR
Availability: OutOfStock

₹13,604 (Incl. of all taxes)

₹11,533 ₹2,071 GST

MRP ₹15,053 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	500 m
Nominal Diameter	5 mm
Notes	image is only for reference purpose
Number of Cores	2
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 36 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Weight	16 g

Show All Specifications

Product Details

The Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable is an excellent choice for various applications in the field of multicore cables. It is designed to provide exceptional performance in occasional flexing and fixed locations. With its unshielded shielding, it ensures reliable transmission of signals and prevents any interference.

Compliant with DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2 standards, this cable guarantees high-quality and safe operation. With a nominal cable weight of 36 kg/km, it is lightweight and easy to work with.

The cable is encased in a durable polyvinyl chloride (PVC) jacket, offering protection against external elements and ensuring long-lasting durability. With a nominal diameter of 5 mm, it is compact and easy to install. Please note that the image provided is for reference purposes only.

Overall, the Belden Machflex 350 YY 2X0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable is a reliable and efficient solution for all your multicore cable needs. Trust Belden, a trusted brand in the industry, to deliver superior performance and durability for your applications.
