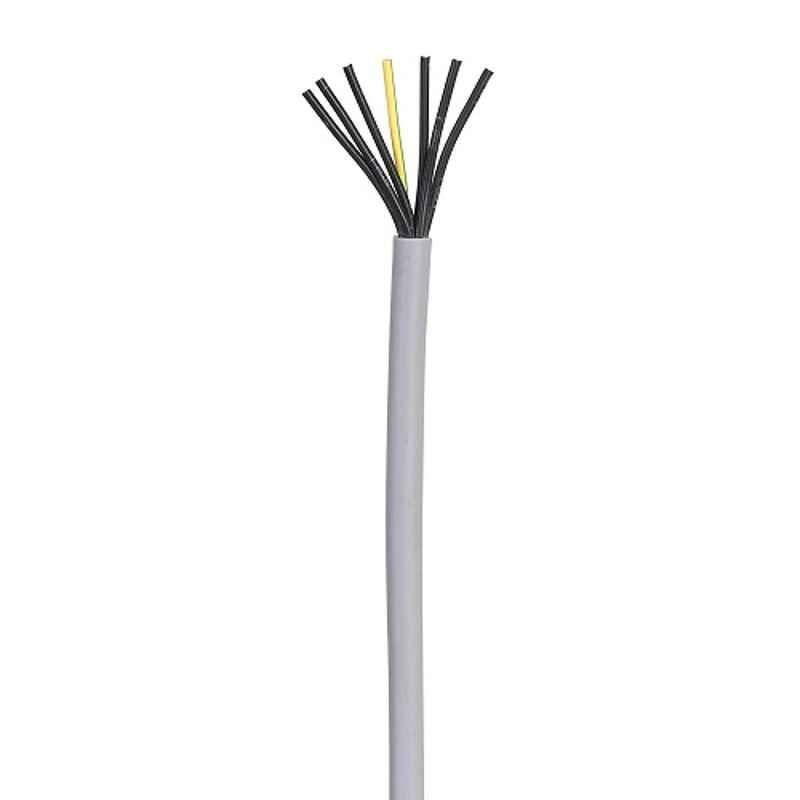

Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 100 m

Name: Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 100 m
Brand: Belden
SKU: MSNV5OOL8YNV56
Price: 4485 INR
Availability: OutOfStock

₹4,485 (Incl. of all taxes)

₹3,799 ₹686 GST

MRP ₹4,958 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	100 m
Nominal Diameter	4.9 mm
Notes	image is only for reference purpose
Number of Cores	3
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 35 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Dimensions LxWxH	25.5x7.5x25.5 cm
Weight	16 g

Show All Specifications

Product Details

Introducing the Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, a reliable and versatile solution designed for various applications. With a length of 100 meters, this cable is perfect for both occasional flexing and fixed locations.

Featuring a sturdy yet flexible construction, this cable is built to withstand the demands of everyday use. The bare copper conductors ensure excellent conductivity, while the unshielded design allows for easy installation.

Compliant with renowned standards such as DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1-2, you can trust this cable to deliver exceptional performance.

Weighing just 35 kg per kilometer, this cable is lightweight and easy to handle during installation. The jacket material is made of durable polyvinyl chloride (PVC), ensuring long-lasting protection against environmental factors.

With a nominal diameter of 4.9 mm, this cable is compact and space-efficient. Please note that the image provided is for reference only.

In summary, the Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable is a reliable and high-quality option for your multicore cable needs. Suitable for various applications, this cable delivers exceptional performance in both occasional flexing and fixed locations. Trust in the Belden brand for all your connectivity needs.
