Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 300 m

Name: Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 300 m
Brand: Belden
SKU: MSNZ526LYQ2M9X
Price: 11720 INR
Availability: OutOfStock

₹11,720 (Incl. of all taxes)

₹9,933 ₹1,787 GST

MRP ₹12,963 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	300 m
Nominal Diameter	4.9 mm

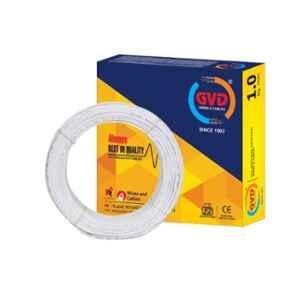

Notes	image is only for reference purpose
Number of Cores	3
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 35 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Weight	16 g

Show All Specifications

Product Details

The Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable is a reliable and versatile solution for various industrial applications. With a length of 300 meters, this multicore cable is perfect for both occasional flexing and fixed locations.

Designed by the reputable brand Belden, this cable meets the highest standards in the industry. It is unshielded, making it suitable for use in environments that do not require additional protection against interference.

The Belden Machflex 350 YY cable complies with several standards, including DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1-2.

Despite its high performance, this cable remains lightweight, with a nominal weight of 35 kg/km. Its jacket material is made of durable and flexible polyvinyl chloride (PVC). With a nominal diameter of 4.9 mm, it is compact and easy to handle.

Please note that the image provided is for reference purposes only and may not accurately depict the actual product. Choose the Belden Machflex 350 YY 3G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable for reliable and efficient control in your industrial applications.
