Belden Machflex 350 YY 4G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m

Name: Belden Machflex 350 YY 4G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m
Brand: Belden
SKU: MSNL5GLW0VXYK4
Price: 9056 INR
Availability: OutOfStock

₹9,056 (Incl. of all taxes)

₹7,669 ₹1,387 GST

MRP ₹10,010 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	200 m
Nominal Diameter	5.3 mm

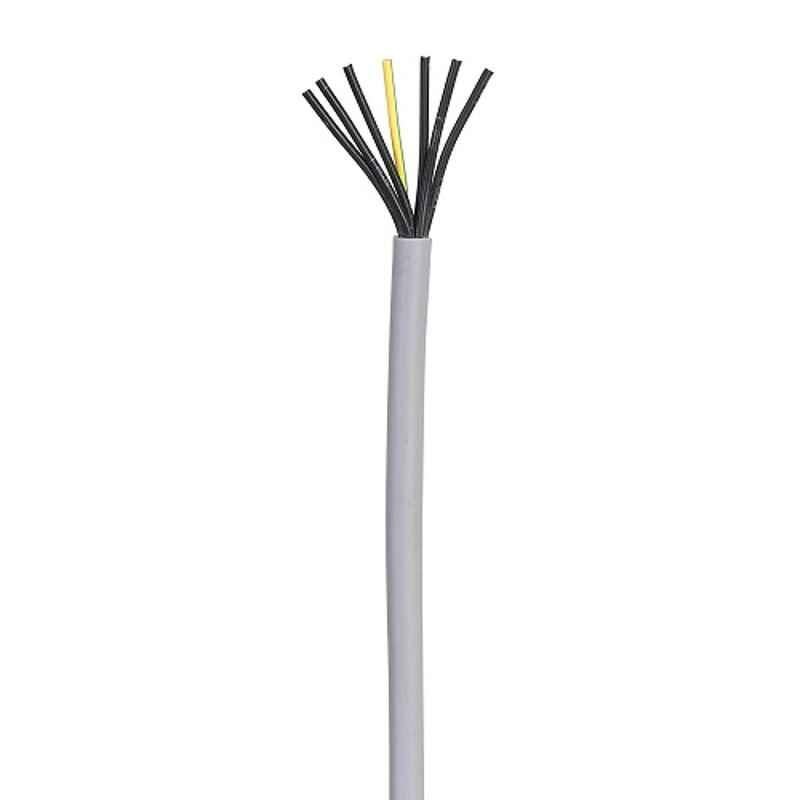

Notes	image is only for reference purpose
Number of Cores	4
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 44 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Dimensions LxWxH	20x20x5 cm
Weight	16 g

Show All Specifications

Product Details

Introducing the Belden Machflex 350 YY 4G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, a high-quality and reliable solution for various electrical applications. This product belongs to the Multicore Cables category, designed to meet the needs of both occasional flexing and fixed locations.

With its unshielded design, this cable offers remarkable flexibility and maneuverability, making it ideal for installations that require frequent changes or adjustments. The Belden brand guarantees superior performance and durability, ensuring a long-lasting solution for your electrical needs.

Compliant with industry standards such as DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2, this cable ensures safety and reliability in any application.

Weighing in at a nominal 44 kg/km and featuring a PVC jacket material, the Belden Machflex 350 YY 4G0.75 Multicore Bare Copper Control Cable offers excellent protection against wear and tear, as well as extreme weather conditions. Its nominal diameter of 5.3 mm ensures easy installation and compatibility with various connectors and devices.

Please note that the image provided is for reference purposes only. Trust the Belden Machflex 350 YY 4G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable to deliver exceptional performance and reliability in your electrical projects.
