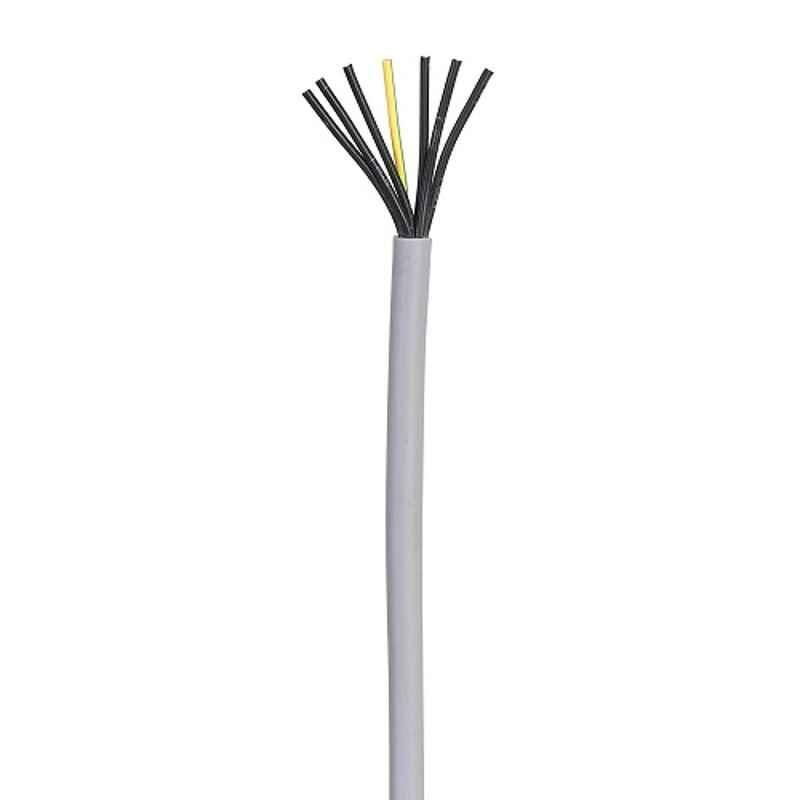

Belden Machflex 350 YY 7G0.5 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 300 m

Name: Belden Machflex 350 YY 7G0.5 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 300 m
Brand: Belden
SKU: MSN8KLPJRZWR5V
Price: 18556 INR
Availability: OutOfStock

₹18,556 (Incl. of all taxes)

₹15,716 ₹2,840 GST

MRP ₹20,854 11% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	300 m
Nominal Diameter	6.4 mm
Notes	image is only for reference purpose
Number of Cores	7
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.5 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 68 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Weight	16 g

Show All Specifications

Product Details

Introducing the Belden Machflex 350 YY 7G0.5 Multicore Bare Copper Unshielded Flexible PVC Control Cable, a top-notch product from the renowned brand Belden. This cable is specifically designed for applications in occasional flexing and fixed locations. Its unshielded feature provides excellent flexibility without compromising on durability and performance.

With adherence to high industry standards such as DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1-2, you can trust in the reliability of this cable for your various control applications.

Furthermore, this cable has a nominal cable weight of 68 kg/km, making it manageable and easy to work with. The jacket material is made of high-quality polyvinyl chloride (PVC), ensuring resistance to external elements, abrasion, and mechanical stress.

With a nominal diameter of 6.4 mm, this cable offers the perfect blend of flexibility and sturdiness. Please note that the image shown is for reference purposes only.

Choose the Belden Machflex 350 YY 7G0.5 Multicore Bare Copper Unshielded Flexible PVC Control Cable for a dependable and high-performing solution in the realm of multicore cables.
