Belden Machflex 350 YY 7G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m

Name: Belden Machflex 350 YY 7G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, Length: 200 m
Brand: Belden
SKU: MSN85807QGO492
Price: 18110 INR
Availability: OutOfStock

₹18,110 (Incl. of all taxes)

₹15,339 ₹2,771 GST

MRP ₹20,020 9% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Good UV Resistance, Chemical Resistance & Flexibility.

Product Specifications

Brand	Belden
Applications	Occasional Flexing & Fixed Locations Include Precision Control Sensors, Multi Axis Control Machines, Temperature Controllers, Control Panels,Machine Cutting Tools, Auxiliary Equipment, Motor Speed Control, Production Machinery & Many More
Bending Radius	Occasional movement: 10 Fixed installation: 4
Cable Type	Flexible
Conductor Material	Bare Copper
Insulated Material	PVC
Jacket Material	Polyvinyl Chloride
Length	200 m
Nominal Diameter	7.2 mm

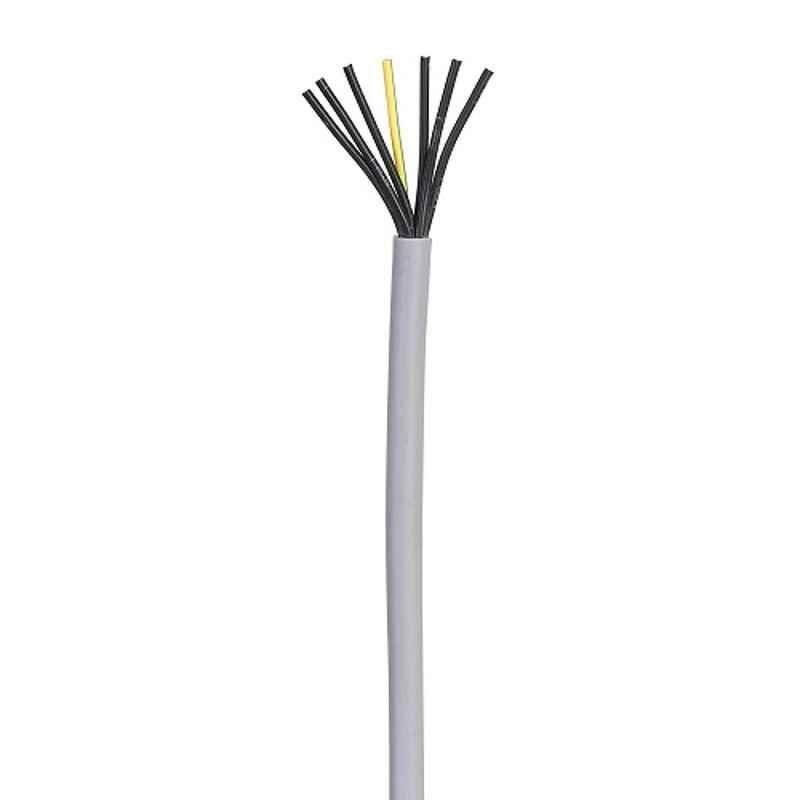

Notes	image is only for reference purpose
Number of Cores	7
Oil Resistant	Yes
Operating Temperature Range	-40 to 80 deg C
Series	Machflex 350 YY
Shielding	Unshielded
Size(Cross Sectional Area)	0.75 sqmm
Standard	DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1-2
Storage Temperature	-40 to +80 deg C
Voltage	300 / 500 V
Weight	Nominal Cable weight: 91 kg/km
Country of origin	India
Manufacturer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Packer Details	PARADISE ELECTRICAL INDUSTRIES (ABHINAV AGGARWAL), 3815,BABU WALI GALI, MORI GATE,DELHI , DELHI, Delhi-110006, India , Phone: +91-8448233444
Common/Generic Name	Unshielded Cable
Dimensions LxWxH	20x20x5 cm
Weight	16 g

Show All Specifications

Product Details

Introducing the Belden Machflex 350 YY 7G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable, designed for various applications that require occasional flexing and fixed locations. Built with high-quality materials, this cable offers reliable performance and durability.

Complying with industry standards such as DIN VDE 0295, IEC 60228, BS6360, DIN EN 50290-2-22, DIN VDE 0207-363-4-1, IEC 60227-5, DIN EN 50525-2-51, DIN VDE 0482-332-1-2, DIN EN 60332-1-2, and IEC 60332-1-2, you can trust the Belden Machflex 350 YY to meet your requirements.

With a nominal diameter of 7.2 mm and a weight of 91 kg/km, this cable is compact and lightweight, making installation hassle-free. The polyvinyl chloride (PVC) jacket material offers excellent protection against external factors, ensuring longevity and reliability.

Please note that the image provided is for reference purposes only. Trust Belden, a reputable brand, for your multicore cable needs. Choose the Belden Machflex 350 YY 7G0.75 Multicore Bare Copper Unshielded Flexible PVC Control Cable for seamless connections and superior performance.
