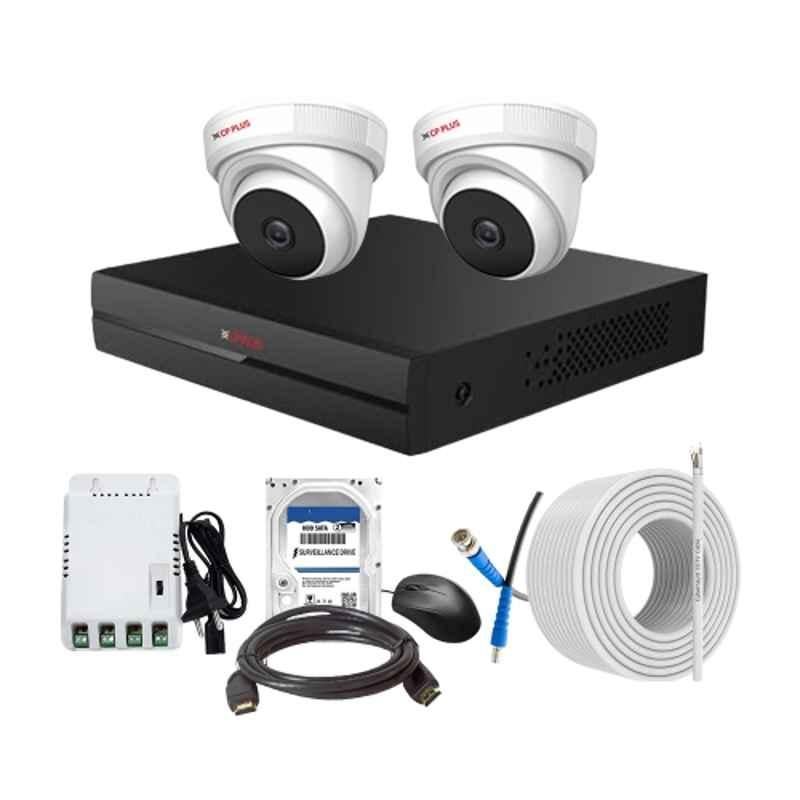

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 2 Dome Camera, 4Ch SMPS, 70m Copper Cable, 500GB HDD & Connectors
Brand: CP Plus
SKU: MSN2KM1Z7X2X9V
Price: 8509 INR
Availability: InStock

₹8,509 (Incl. of all taxes)

₹7,211 ₹1,298 GST

MRP ₹16,349 47% OFF

Storage Capacity

500 GB
1 TB
2 TB
NO HDD

Buy More & Save More

Qty 2

₹8,445 /pc

48% OFF

Qty 3

₹8,413 /pc

48% OFF

Qty 4 - 5

₹8,381 /pc

48% OFF

Qty 6 - 7

₹8,317 /pc

49% OFF

Qty 8+

₹8,253 /pc

49% OFF

Sign Up & Earn 10 Mogli Coins

& save extra money on your next purchase.

Get at

₹8,409

with Coupon & Offers

Extra ₹100 OFF

All Coupons & Offers

India’s Leading B2B Online Store

4.7

Avg. Rating

50+ Lac

Orders Delivered

93%

Happy Customers

Money Back

Genuine Product

Easy Return

Get GST Invoice

Secure Payments

365 Days Help Desk

Moglix Insights

CP Plus is one of the top brand in cctv combo kits, preferred by 38% of the users

13% of the users prefer cctv combo kits in ₹8000-9000 price range

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP CMOS Image Sensor (0.9407 cm).
Max 25/30fps at 2.4MP.
DWDR, Day/Night (ICR), 2D-DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (2.8mm, 6mm optional).
IR Range of 20 Mtrs, OSD Menu, Control Over Coaxial Cable, 2D-DNR.
HD, SD and Two Analog Format Output Switchable.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 5 channels IP camera inputs, each channel up to 2MP; Max 20Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pr.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Casing: Plastic Max Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0 Lux IR On
Model	Dome: CP-URC-DC24PL2-V3 DVR: CP-UVR-0401E1-CV5 SMPS: CP-LPS-PD04-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 4
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	500 GB
Storage Humidity	0-90%
Storage Temperature	DVR: -20 to 70 deg C SMPS: -40 to 70 deg C
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: All Channels 1080N, 720P, 960H, D1, HD1, BCIF, CIF & QCIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the perfect solution for all your surveillance needs. This comprehensive kit includes everything you need to set up a reliable and efficient CCTV system.

With a 4Ch DVR, you can easily record and monitor footage from two dome cameras. The high-resolution 2.4MP cameras capture crystal-clear images, ensuring that no detail goes unnoticed. The lens size of 3.6 mm provides a wide viewing angle, making it ideal for both indoor and outdoor use.

The kit also includes a 500GB HDD, allowing for ample storage of recorded footage. The 4Ch SMPS ensures a stable power supply, while the 70m copper cable provides flexibility in camera placement.

With an input voltage of 150-240 V AC and an operating system embedded LINUX, this CCTV combo kit is reliable and user-friendly. It can withstand extreme temperatures, with the DVR and SMPS functioning within -10 to 45 degrees Celsius and the cameras operating in temperatures ranging from -40 to 60 degrees Celsius.

The CP Plus brand is known for its exceptional quality and performance, making it a trusted choice for security solutions. Experience peace of mind with the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the perfect choice for both residential and commercial applications.
