Hover to Zoom

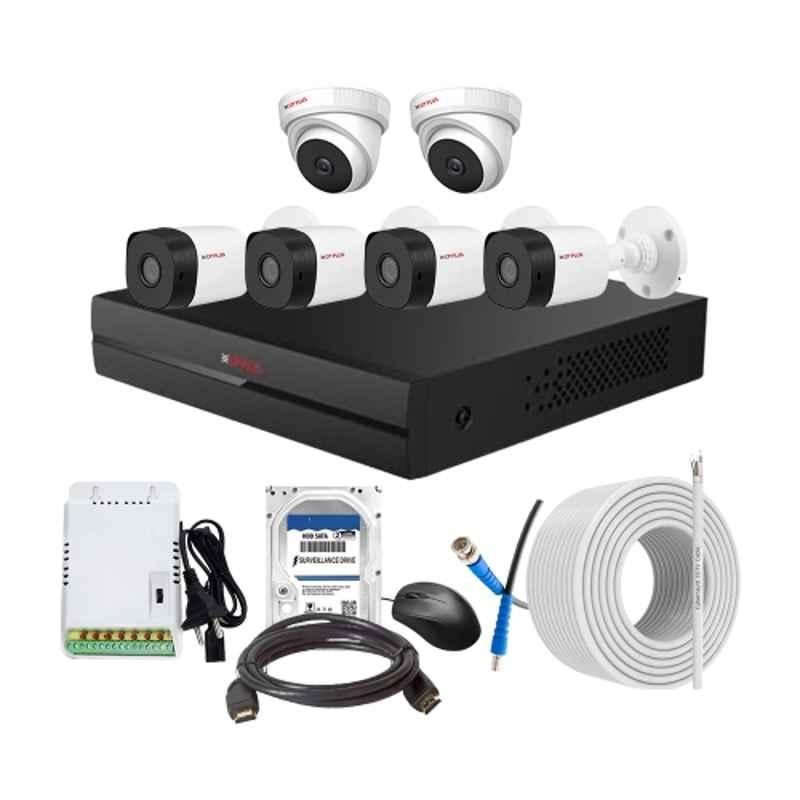

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Bullet 2 Dome Camera, 8Ch SMPS, 70m Cable, 500GB HDD & Connector
₹14,439 (Incl. of all taxes)
₹12,236 ₹2,203 GST
MRP ₹28,929 50% OFF
Buy More & Save More
Qty 2
₹14,330 /pc
50% OFF
Qty 3
₹14,276 /pc
50% OFF
Qty 4 - 5
₹14,222 /pc
50% OFF
Qty 6 - 7
₹14,114 /pc
51% OFF
Qty 8+
₹14,005 /pc
51% OFF
Sign Up & Earn 10 Mogli Coins
& save extra money on your next purchase.
Get at
₹14,339
with Coupon & Offers
Extra ₹100 OFF
All Coupons & Offers
India’s Leading B2B Online Store
4.7
Avg. Rating
50+ Lac
Orders Delivered
93%
Happy Customers
Money Back
Genuine Product
Easy Return
Get GST Invoice
Secure Payments
365 Days Help Desk
Moglix Insights
About This Product
Key Features
2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.
Show All Key Features
Product Specifications
Brand | |
Additional Details | Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85 |
Audio Bit rate | 64 Kbps Per Channel |
Cable Length | 70 m |
Camera | 2.4 MP |
Ethernet | 1 RJ-45 Port (100 Mbps) |
Frequency Range | 50-60 Hz |
IR Range | 20 m |
Image Sensor | Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS |
Input Voltage | 150-240 V AC |
Leakage Current | Max: 0.008 Amp |
Lens Size | 3.6 mm |
Minimum Illumination | 0.04 Lux/F1.85, 30IRE & 0Lux IR on |
Model | Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D |
Notes | The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided |
Number of Channels | DVR & SMPS: 8 |
Operating System | Embedded LINUX |
Operating Temperature | -40 to 60 deg C |
Power Consumption | Dome: 2.3 W Bullet: 2.7 W DVR: <10 W |
Rated Power | 48 W |
Standards | IP67 |
Storage Capacity | 500 GB |
Storage Humidity | 0-90% |
Video Compression | Instastream/H.265/H.264+/H.264 |
Video Recording | Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps) |
Video Resolution | 1920x1080p, 1280x1024p & 1280x720p |
Video Streaming | Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P |
Voltage | 12 V DC ±30% DVR: 12 V DC |
Warranty | 2 Years |
Working Humidity | DVR: 10-90% SMPS: 5 to 95% |
Working Temperature | DVR & SMPS: -10 to 45 deg C |
Country of origin | India |
Manufacturer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Packer Details | Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India |
Common/Generic Name | CCTV Kit |
Dimensions LxWxH | 25x25x25 cm |
Weight | 2 kg |
Show All Specifications
Product Details
Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, perfect for all your surveillance needs. This high-quality kit includes an 8-channel DVR, 4 bullet cameras, 2 dome cameras, 8-channel SMPS, 70m cable, 500GB HDD, and connector. Designed for both indoor and outdoor use, this kit ensures maximum security for your property.
With a lens size of 3.6 mm, you can capture detailed footage with precision. The 70m cable length provides flexibility in camera placement, while the input voltage range of 150-240 V AC ensures compatibility with various power sources. The DVR operates on an embedded LINUX operating system, guaranteeing reliable and efficient performance.
Operating temperatures ranging from -10 to 45 deg C for the DVR and SMPS, and -40 to 60 deg C for the cameras allow this kit to withstand harsh weather conditions. With an impressive IR range of 20m, this kit ensures clear and detailed footage, even in low-light situations.
Experience peace of mind with the CP Plus brand, known for its superior quality and performance. Invest in the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit today and take control of your security.
Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
Read More
Product Specification Document
Looking to purchase CCTV Combo Kits in bulk?
Purchase item in bulk quantity
Get at best price for your business
By: CP Plus
₹14,679
₹31,39953% OFF
By: CP Plus
₹18,239
₹32,77944% OFF
By: CP Plus
₹12,159
₹26,09953% OFF
By: CP Plus
₹11,219
₹24,11953% OFF
By: CP Plus
₹17,029
₹30,41944% OFF
By: CP Plus
₹11,189
₹24,30953% OFF
By: CP Plus
₹17,179
₹30,60943% OFF
By: CP Plus
₹14,259
₹30,81953% OFF
By: CP Plus
₹18,909
₹35,13946% OFF
By: CP Plus
₹13,319
₹28,83953% OFF
Frequently Asked Questions
Displaying Questions 2 / 3
Q1:Is this combo kit suitable for both indoor and outdoor use?
Ans:
Yes, the kit includes 4 bullet cameras ideal for outdoor use and 2 dome cameras suited for indoor surveillance, offering complete coverage.
Q2:How much footage can the 500GB HDD store?
Ans:
The 500GB HDD can typically store 10?15 days of continuous recording from 6 cameras, depending on settings like resolution, frame rate, and motion detection.
