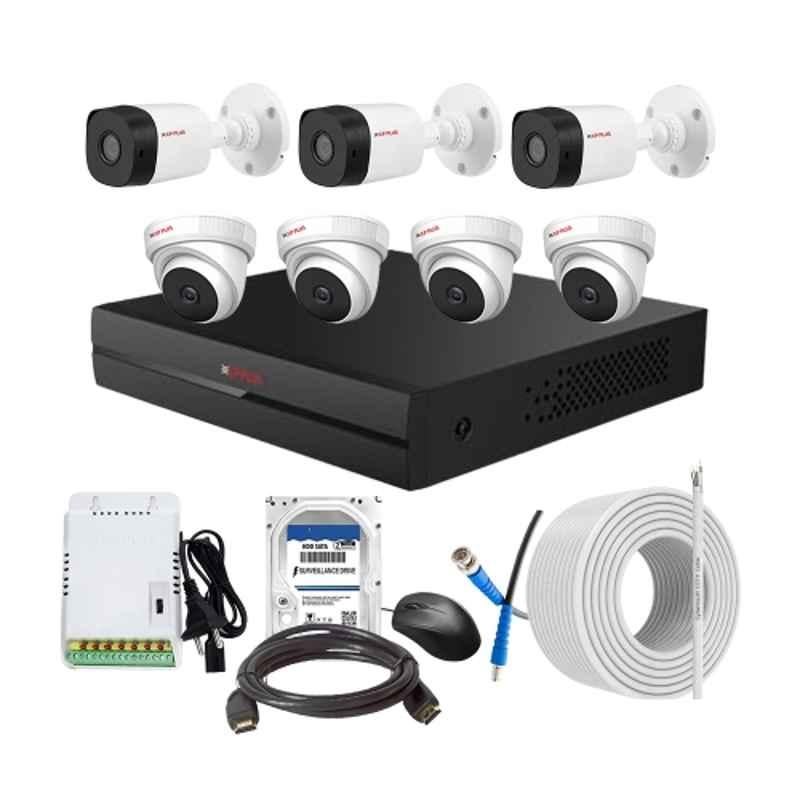

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Hover to Zoom

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 4 Dome 3 Bullet Camera, 8Ch SMPS, 70m Cable, 1TB HDD & Connector
Brand: CP Plus
SKU: MSN8580Z16NL92
Price: 19959 INR
Availability: OutOfStock

₹19,959 (Incl. of all taxes)

₹16,914 + ₹3,045 GST

MRP ₹34,759 42% OFF

AVAILABLE ON REQUEST

Storage Capacity

1 TB
2 TB
500 GB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	1 TB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit, a complete and high-performance security solution designed to protect homes, offices, shops, and commercial spaces with ease. This advanced surveillance bundle includes an 8-channel DVR along with 4 dome cameras for indoor monitoring and 3 bullet cameras for outdoor coverage, ensuring wide-angle visibility and improved safety in every corner. Each camera is equipped with a 3.6mm lens to capture clear, detailed, and sharp footage day and night. The included 70-meter cables provide ample flexibility for installation across different areas of your premises without hassle. With an input voltage range of 150-240V AC, this system is energy-efficient and stable, while its Embedded LINUX operating system ensures smooth performance, user-friendly controls, and reliable long-term usage. Whether it's for preventing theft, monitoring visitors, or keeping an eye on your property remotely, this CCTV combo kit delivers dependable surveillance and peace of mind, making it a smart and secure investment for modern security needs.
