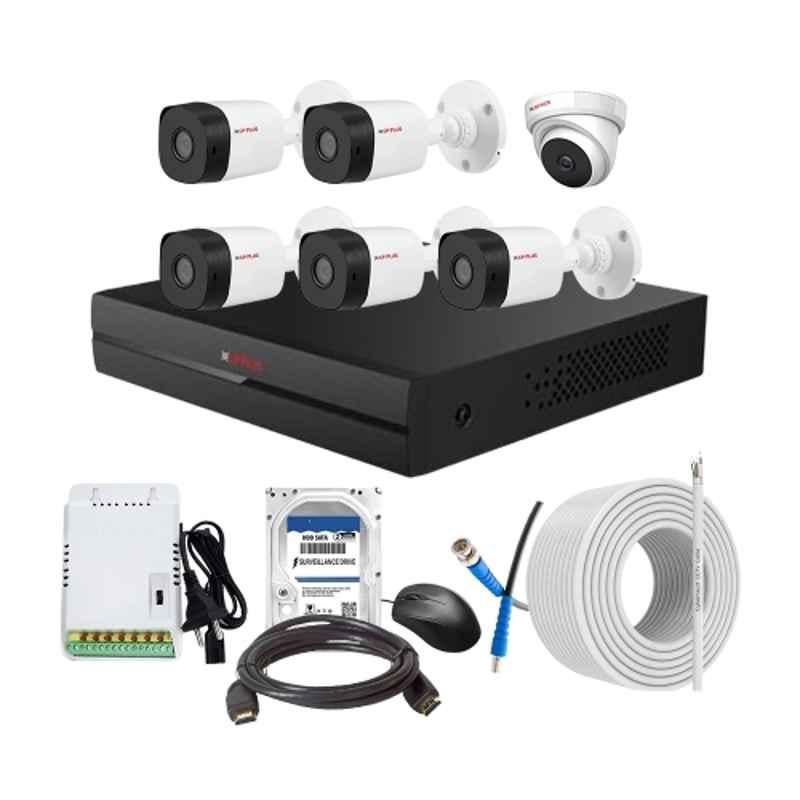

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 5 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
Brand: CP Plus
SKU: MSNEKPQ8EPOW52
Price: 22909 INR
Availability: OutOfStock

₹22,909 (Incl. of all taxes)

₹19,414 + ₹3,495 GST

MRP ₹36,039 36% OFF

AVAILABLE ON REQUEST

Storage Capacity

2 TB
1 TB
500 GB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	2 TB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the comprehensive solution for all your surveillance needs. This kit includes an 8Ch DVR, 5 Bullet and 1 Dome Camera, an 8Ch SMPS, 70m Cable, 2TB HDD \u0026 Connector, allowing you to set up a robust security system in no time.

Designed for both indoor and outdoor use, the CCTV Combo Kit ensures high-quality monitoring with its 2.4MP resolution and 3.6mm lens size. The included 70m cable offers flexibility in camera placement, while the 2TB HDD provides ample storage space for your footage.

With an input voltage of 150-240V AC and an operating system of Embedded LINUX, this kit guarantees reliable performance. The DVR and SMPS have a working temperature range of -10 to 45 degrees Celsius, ensuring optimal functionality in various environments.

Equipped with an IR range of 20m and an operating temperature range of -40 to 60 degrees Celsius, the CP Plus CCTV Combo Kit provides clear imaging even during nighttime and extreme weather conditions. Trust the brand name CP Plus to deliver top-notch security solutions.

Browse through the extensive list of CCTV Combo Kits at Moglix. Shop online for other CP Plus CCTV Combo Kits. available at Moglix in the lowest price range.
