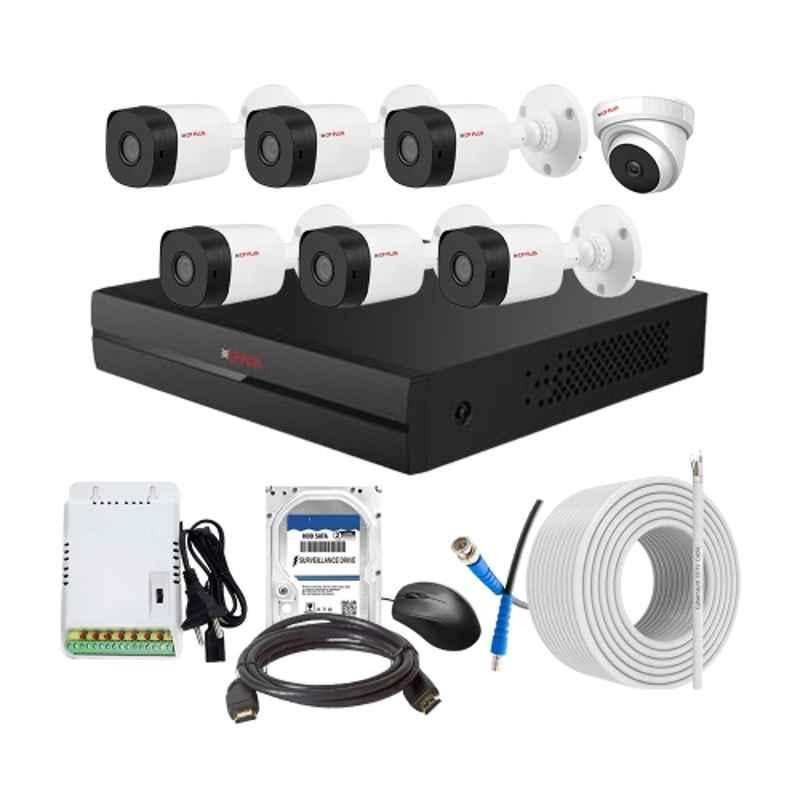

CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector

Name: CP Plus 2.4MP Indoor & Outdoor CCTV Combo Kit with 8Ch DVR, 6 Bullet 1 Dome Camera, 8Ch SMPS, 70m Cable, 2TB HDD & Connector
Brand: CP Plus
SKU: MSN8KLPN82ZN5V
Price: 23969 INR
Availability: OutOfStock

₹23,969 (Incl. of all taxes)

₹20,312 + ₹3,657 GST

MRP ₹38,399 37% OFF

AVAILABLE ON REQUEST

Storage Capacity

2 TB
1 TB
500 GB
NO HDD

Moglix Insights

About This Product

Key Features

2 Years Warranty on CP PLUS CCTV Combo.
1/2.7 inch 2.4MP PS CMOS Image Sensor (0.9407 centimetres).
Max. 2MP at 30fps.
DWDR, Day/Night (ICR), 2D DNR, AWB, AGC, BLC, HLC.
3.6mm Fixed Lens (6mm optional).
IR Range of 20 Mtrs., Smart IR & IP67.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 10 channels IP camera inputs, each channel up to 6MP; Max 40Mbps Incoming Bandwidth.
Support 1 SATA HDD up to 6TB, 2 USB Ports.
1 HDMI / 1 VGA Simultaneous Video Output.
Instastream/H.265/H.264+/H.264 video compression.
Mobile Software: iCMOB, gCMOB.
CMS Software: KVMS Pro.

Show All Key Features

Product Specifications

Brand	CP Plus
Additional Details	Dome & Bullet: Casing: Plastic Bullet Lens Mount: M12 Dome & Bullet: Max. Aperture: F1.85
Audio Bit rate	64 Kbps Per Channel
Cable Length	70 m
Camera	2.4 MP
Ethernet	1 RJ-45 Port (100 Mbps)
Frequency Range	50-60 Hz
IR Range	20 m
Image Sensor	Dome: 1/2.8 inch 2.4MP CMOS Bullet: 1/2.7 inch 2.4MP CMOS
Input Voltage	150-240 V AC
Leakage Current	Max: 0.008 Amp
Lens Size	3.6 mm
Minimum Illumination	0.04 Lux/F1.85, 30IRE & 0Lux IR on
Model	Dome: CP-URC-DC24PL2-V3 Bullet: CP-URC-TC24PL2-V3 DVR: CP-UVR-0801E1-CV4 SMPS: CP-LPS-PD08-12D
Notes	The Company can change its model number and product look without giving any prior notice, in that scenario upgraded or same specification model will be provided
Number of Channels	DVR & SMPS: 8
Operating System	Embedded LINUX
Operating Temperature	-40 to 60 deg C
Power Consumption	Dome: 2.3 W Bullet: 2.7 W DVR: <10 W
Rated Power	48 W
Standards	IP67
Storage Capacity	2 TB
Storage Humidity	0-90%
Video Compression	Instastream/H.265/H.264+/H.264
Video Recording	Sub Stream: CIF/QCIF (1-15 fps) Main Stream: 1st Channel 1080N/720P(1-25/30 fps), Others 1080N/720P(1-15 fps) & 960H/D1/CIF(1-25/30 fps)
Video Resolution	1920x1080p, 1280x1024p & 1280x720p
Video Streaming	Dome: 2.4MP at 25/30 fps & 25/30/50/60 fps at 720P
Voltage	12 V DC ±30% DVR: 12 V DC
Warranty	2 Years
Working Humidity	DVR: 10-90% SMPS: 5 to 95%
Working Temperature	DVR & SMPS: -10 to 45 deg C
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Packer Details	Aditya Infotech Ltd.(CP Plus) A-12, Sector 4, Noida - 201301 India
Common/Generic Name	CCTV Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Introducing the CP Plus 2.4MP Indoor \u0026 Outdoor CCTV Combo Kit, the perfect surveillance solution for both indoor and outdoor areas. This comprehensive kit includes an 8Ch DVR, 6 bullet cameras, 1 dome camera, 8Ch SMPS, 70m cable, 2TB HDD, and connectors, ensuring you have everything you need to monitor your property effectively.

With a lens size of 3.6mm, the cameras provide clear and detailed footage, allowing you to capture every important moment. The generous cable length of 70m ensures flexibility in camera placement, while the input voltage of 150-240V AC ensures compatibility with various power sources.

Powered by an embedded LINUX operating system, the DVR ensures smooth and reliable performance. The working temperature range of -10 to 45 degrees Celsius for both the DVR and SMPS guarantees optimal operation, even in challenging environments.

Equipped with infrared technology, these cameras have an impressive IR range of 20m, allowing for clear visibility in low-light conditions. Plus, with an operating temperature range of -40 to 60 degrees Celsius, these cameras can withstand extreme weather conditions.

Choose the CP Plus CCTV Combo Kit for a comprehensive and reliable surveillance solution. With its advanced features and durable construction, this kit is perfect for both indoor and outdoor security applications.
