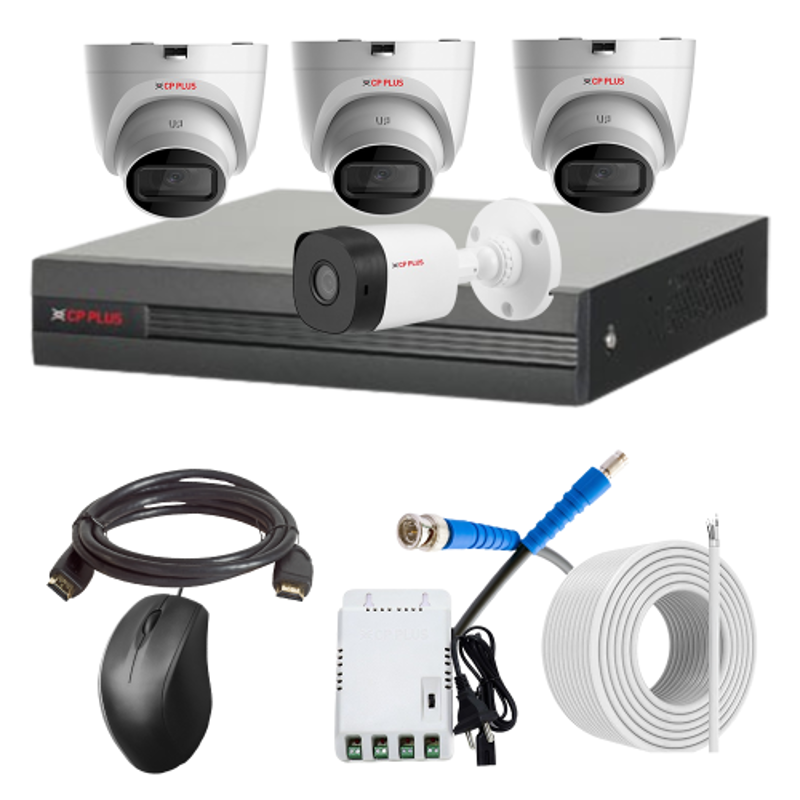

CP Plus 5MP IR Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Bullet 3 Dome Camera, 4Ch SMPS, 70m Copper Cable & Connectors

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Led Indicator for Power On.
CVI/CVBS/AHD/TVI Switchable.
Over Current & Voltage Protection.
Power Protection & UNI+Technology.
Short Circuit Protection & Over Load Protection.
OSD Menu, Control Over Coaxial Cable & 2D-DNR.
Supports HDCVI/AHD/TVI/CVBS/IP Video Inputs.

Show All Key Features

Product Specifications

Brand	CP Plus
Aperture	F2.0
Audio Bit rate	DVR: 64 Kbps
Cable Length	70 m
Camera	5 MP
Capacity	DVR: 1 Sata
Current	DVR: 1.5 Amp SMPS: 1.2 Amp
Frequency Range	50-60 Hz
HDMI / VGA output	1xHDMI & 1xVGA
Hard Disk Capacity	NO HDD
IR Distance	20 m
Image Sensor	1/2.7 inch CMOS
Item Code	Dome: CP-USC-DC51PL2-V3 Bullet: CP-USC-TC51PL2-V3 DVR: CP-UVR-0401F1-IC SMPS: CP-LPS-PD04-12D
Lens Size	Fixed: 3.6 mm Optional: 2.8 mm
Lens Type	Fixed
Material	SMPS: ABS Plastic
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Channels	DVR & SMPS: 4
Operating System	DVR: Embedded LINUX
Power Consumption	SMPS: 48 W DVR: 4 W
Protection Class	Bullet: IP67
Resolution	2880x1620p
S/N Ratio	>65 dB
Storage Temperature	SMPS: -40 to 70 deg C
Video Resolution	DVR: 1920x1080p
Voltage	DVR: 12 V DC SMPS: 12 V DC
Warranty	2 Years for Dome, Bullet & DVR, 1 Year for SMPS
Working Humidity	SMPS: 5-95 %
Working Temperature	-10 to 45 deg C
mount type	M12
processor	DVR: Embedded
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(Cp Plus).�A-12, Sector 4, Noida - 201301 (Delhi-NCR) India
Packer Details	Aditya Infotech Ltd.(Cp Plus).�A-12, Sector 4, Noida - 201301 (Delhi-NCR) India
Common/Generic Name	CCTV Combo Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Enhance the security of your property with the CP Plus 5MP IR Indoor & Outdoor CCTV Combo Kit. This comprehensive kit includes a 4Ch DVR, 1 bullet camera, 3 dome cameras, a 4Ch SMPS power supply, 70m of high-quality copper cable, and all necessary connectors. The cameras feature a fixed lens size of 3.6mm, providing clear and crisp images. The DVR operates on an Embedded LINUX system and can withstand temperatures ranging from -10 to 45 degrees Celsius. With a cable length of 70m and a frequency range of 50-60 Hz, this CCTV combo kit is a reliable and effective security solution. Please note that the images are for reference purposes only and the actual product may vary. Trust the leading brand in surveillance technology - CP Plus.
