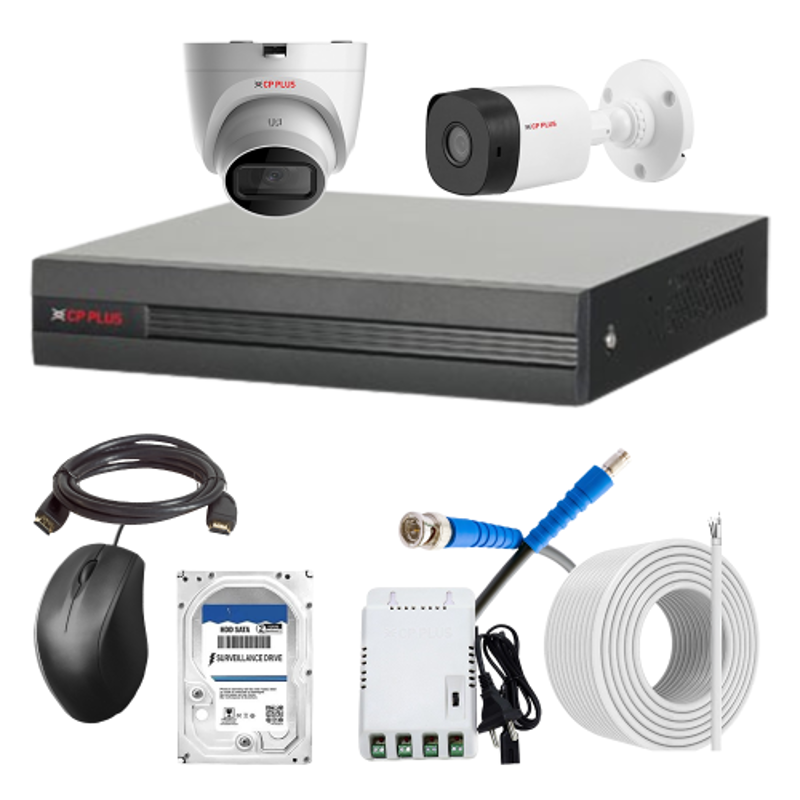

CP Plus 5MP IR Indoor & Outdoor CCTV Combo Kit with 4Ch DVR, 1 Dome 1 Bullet Camera, 4Ch SMPS, 70m Cable, 500GB HDD & Connector

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Led Indicator for Power On.
CVI/CVBS/AHD/TVI Switchable.
Over Current & Voltage Protection.
Power Protection & UNI+Technology.
Short Circuit Protection & Over Load Protection.
OSD Menu, Control Over Coaxial Cable & 2D-DNR.
Supports HDCVI/AHD/TVI/CVBS/IP Video Inputs.

Show All Key Features

Product Specifications

Brand	CP Plus
Aperture	F2.0
Audio Bit rate	DVR: 64 Kbps
Cable Length	70 m
Camera	5 MP
Capacity	DVR: 1 Sata
Current	DVR: 1.5 Amp SMPS: 1.2 Amp
Frequency Range	50-60 Hz
HDMI / VGA output	1xHDMI & 1xVGA
Hard Disk Capacity	500 GB
IR Distance	20 m
Image Sensor	1/2.7 inch CMOS
Item Code	Dome: CP-USC-DC51PL2-V3 Bullet: CP-USC-TC51PL2-V3 DVR: CP-UVR-0401F1-IC SMPS: CP-LPS-PD04-12D
Lens Size	Fixed: 3.6 mm Optional: 2.8 mm
Lens Type	Fixed
Material	SMPS: ABS Plastic
Notes	Images are for Reference Purpose only, Actual Product May Vary
Number of Channels	DVR & SMPS: 4
Operating System	DVR: Embedded LINUX
Power Consumption	SMPS: 48 W DVR: 4 W
Protection Class	Bullet: IP67
Resolution	2880x1620p
S/N Ratio	>65 dB
Storage Temperature	SMPS: -40 to 70 deg C
Video Resolution	DVR: 1920x1080p
Voltage	DVR: 12 V DC SMPS: 12 V DC
Warranty	2 Years for Dome, Bullet, Hard Disk & DVR, 1 Year for SMPS
Working Humidity	SMPS: 5-95 %
Working Temperature	-10 to 45 deg C
mount type	M12
processor	DVR: Embedded
Country of origin	India
Manufacturer Details	Aditya Infotech Ltd.(Cp Plus).�A-12, Sector 4, Noida - 201301 (Delhi-NCR) India
Packer Details	Aditya Infotech Ltd.(Cp Plus).�A-12, Sector 4, Noida - 201301 (Delhi-NCR) India
Common/Generic Name	CCTV Combo Kit
Dimensions LxWxH	25x25x25 cm
Weight	2 kg

Show All Specifications

Product Details

Upgrade your security system with the CP Plus 5MP IR Indoor & Outdoor CCTV Combo Kit. This kit includes a 4Ch DVR, 1 dome camera, 1 bullet camera, 4Ch SMPS, 70m cable, 500GB HDD, and connectors. The fixed 3.6mm lens size ensures clear and detailed footage, while the 70m cable allows for easy installation in both indoor and outdoor settings. The DVR operates on an embedded LINUX system and can withstand temperatures from -10 to 45 degrees Celsius. Suitable for homes, offices, and businesses, this kit offers reliable surveillance for your peace of mind. Please note that images are for reference only, and the actual product may vary. Trust CP Plus for high-quality CCTV solutions.
