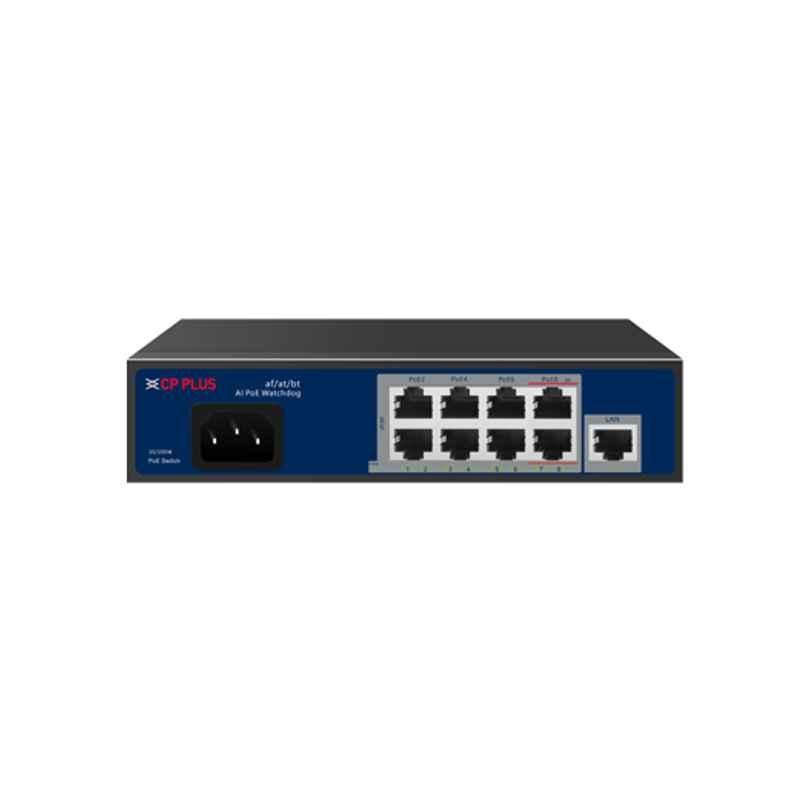

CP Plus 8EP+1E 10/100Mbps 1.8Gbps Single Up-Link AI PoE Network Switch, CP-ANW-HP8H1-N12

Name: CP Plus 8EP+1E 10/100Mbps 1.8Gbps Single Up-Link AI PoE Network Switch, CP-ANW-HP8H1-N12
Brand: CP Plus
SKU: MSNO5WNQL40R51
Price: 1699 INR
Availability: OutOfStock

₹1,699 (Incl. of all taxes)

₹1,439 ₹260 GST

MRP ₹6,000 71% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Key Features

Upload Port Automatic Flip (Auto MDI/MDIX).
The Port Power is 60W, It is Convenient for High-power Device.
Using Cat.5 Network Patch Cords Support Power for the Wireless Ap & Ip Camera.
Zero Configuration Feature Power Supply is Automatically Supplied to the Adaptive Equipment.
Poe Watchdog Ai Function: Detection Front-end Poe Cameras & Pd, Automatic Detection & Automatic Restart.
Functions: Supports Full/half Duplex Mode, Better Connectivity, Easy to Use, Switching Performance & 6kV Surge Protection.
6kV Lightning Protection, 8kV Surge Protection, Anti-reverse Connection, Over-current Protection, Over-voltage Protection, Over-temperature Protection & Short Circuit Protection.

Show All Key Features

Product Specifications

Brand	CP Plus
Number of Ports	9
Data Transfer Rate	Full Duplex: 200 Mbps Half Duplex: 10-100 Mbps
Model	CP-ANW-HP8H1-N12
Power	120 W
Switching Capacity	1.8 Gbps
Transmission Distance	250 m
Dimensions	187x139x43 mm
Humidity	10-90% (Non-Condensing)
Operating Temperature	-30 to 60 deg C
Package Contents	Network Switch, AC Power Cable & Installation Manual
Standards	Network: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x Flow Control IEEE 802.3af/at/bt Power Over Ethernet
Storage Temperature	-40 to 70 deg C
Voltage	110-220 V AC
Warranty	3 Years
Weight	1 kg
Country of origin	India
Manufacturer Details	CP Plus (Aditya Infotech Ltd.) F-28 Okhla Industrial Area, Phase 1, New Delhi 110020, India
Packer Details	CP Plus (Aditya Infotech Ltd.) F-28 Okhla Industrial Area, Phase 1, New Delhi 110020, India
Common/Generic Name	Network Switch
Dimensions LxWxH	‎24x15x6 cm
Weight	500 g

Show All Specifications

Product Details

CP Plus 8EP+1E 10/100Mbps 1.8Gbps Single Up-Link AI PoE Network Switch, CP-ANW-HP8H1-N12 is a premium quality product from CP Plus . Moglix is a well-known ecommerce platform for qualitative range of Network Switch. All CP Plus 8EP+1E 10/100Mbps 1.8Gbps Single Up-Link AI PoE Network Switch, CP-ANW-HP8H1-N12 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture CP Plus 8EP+1E 10/100Mbps 1.8Gbps Single Up-Link AI PoE Network Switch, CP-ANW-HP8H1-N12, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. CP Plus products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of CP Plus Network Switch .
