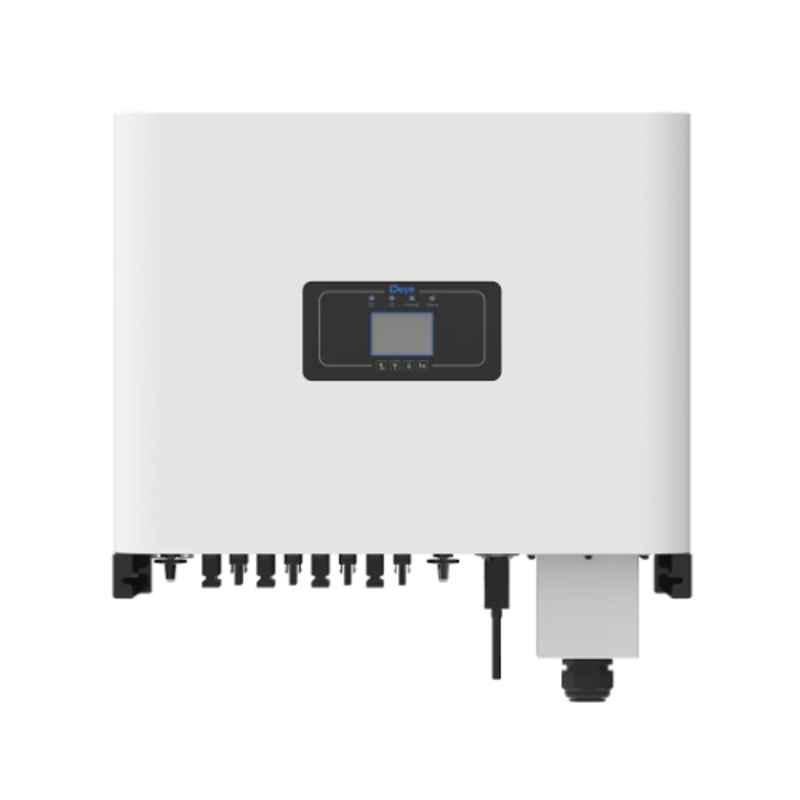

Deye SUN-33K-G03 33kW 3 Phase 2 MPPT Ongrid Inverter

Name: Deye SUN-33K-G03 33kW 3 Phase 2 MPPT Ongrid Inverter
Brand: Deye
SKU: MSNE5N8XOJ0YKL
Price: 138612 INR
Availability: OutOfStock

₹138,612 (Incl. of all taxes)

₹132,015 ₹6,597 GST

MRP ₹163,819 15% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Wide Output Voltage Range.
Zero Export Application & VSG Application.
Output Overvoltage Protection, Insulation Resistance Protection & Ground Fault Monitoring.
DC Reverse-Polarity Protection, AC Short Circuit Protection & AC Output Overcurrent Protection.
Anti-islanding Protection, Temperature Protection, Remote software upload & Surge Protection.

Show All Key Features

Product Specifications

Brand	Deye
Additional Details	Maximum Active Power: 36.3 kW Maximum Efficiency: 98.7% Euro Efficiency: 98% MPPT Efficiency: >99% Derating Temperature: >45 deg C Phase: Three Phase
DC Injection Current	<0.5%
Display Type	LCD
Frequency	50 Hz
Frequency Range	Grid: 47 to 52
Input Power	42.9 kW
Interface	RS485, RS232, Wi-Fi & LAN
Max. Input Current	120 Amp
Maximum Input Voltage	1000 V
Model	SUN-33K-G03 33kW
Mppt Voltage Range	200 to 850 V
Noise Level	<25 db
Number of MPPT	3
Operating Temperature	-25 to 65 deg C
Output Current	55/52.6 Amp
Output Voltage	220-380 V
Power Factor	0.8 Leading to 0.8 Lagging
Rated Current	50/47.8 Amp
Rated Power	33 kW
Short Circuit Current	180 Amp
Standard	IP65, CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1 & IEC/EN 62109-2
Start-up DC input Voltage	250 V
cooling method	Natural Cooling
Country of origin	China
Manufacturer Details	No. 26, South YongJiang Road, Daqi, Beilun, NingBo, Zhejiang, China
Packer Details	No. 26, South YongJiang Road, Daqi, Beilun, NingBo, Zhejiang, China
Importer Details	Daystar Solar, H-5, 3rd Aveune, Anna Nagar East, Chennai-600102
Common/Generic Name	Ongrid Inverter
Dimensions LxWxH	36.2x57.7x21.5 cm
Weight	27 kg

Show All Specifications

Product Details

The Deye SUN-33K-G03 33kW 3 Phase 2 MPPT Ongrid Inverter is a top-of-the-line solar inverter designed for efficiency and reliability. With a natural cooling method and IP65 standard, this inverter is built to withstand various environmental conditions. It boasts a wide output voltage range, zero export application, and various protection features such as overvoltage, insulation resistance, and ground fault monitoring. The LCD display allows for easy monitoring of system performance. With a maximum efficiency of 98.7% and a three-phase output, this inverter is a great choice for commercial solar installations.
