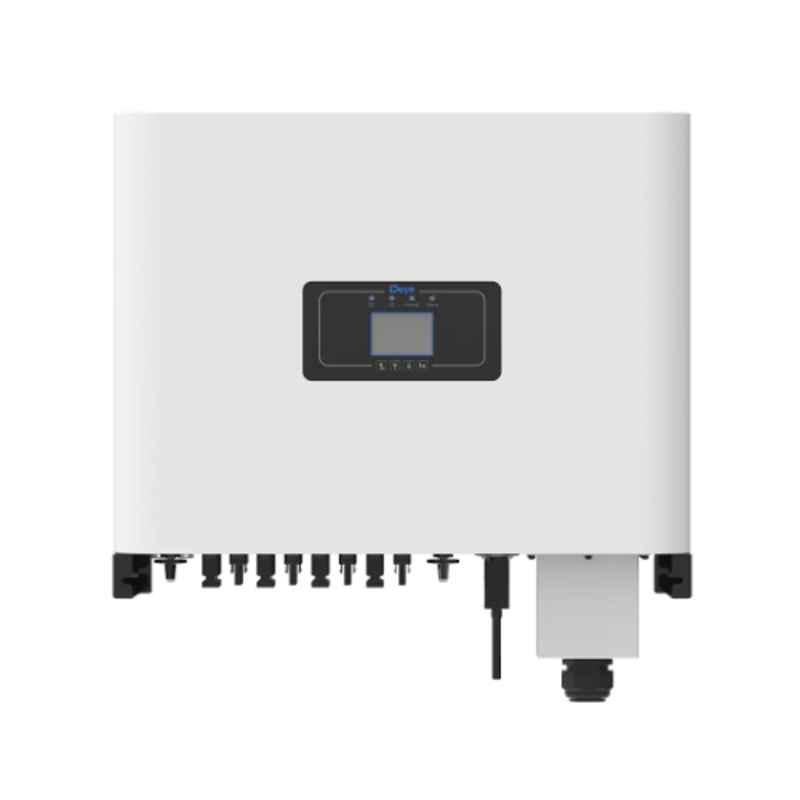

Deye SUN-60K-G03 60kW 3 Phase 4 MPPT Ongrid Inverter

Name: Deye SUN-60K-G03 60kW 3 Phase 4 MPPT Ongrid Inverter
Brand: Deye
SKU: MSNEKPQY2XRW52
Price: 241895 INR
Availability: OutOfStock

₹241,895 (Incl. of all taxes)

₹230,380 ₹11,515 GST

MRP ₹285,077 15% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Wide Output Voltage Range.
Zero Export Application & VSG Application.
Output Overvoltage Protection, Insulation Resistance Protection & Ground Fault Monitoring.
DC Reverse-Polarity Protection, AC Short Circuit Protection & AC Output Overcurrent Protection.
Anti-islanding Protection, Temperature Protection, Remote software upload & Surge Protection.

Show All Key Features

Product Specifications

Brand	Deye
Additional Details	Maximum Active Power: 66 kW Maximum Efficiency: 98.7% Euro Efficiency: 98% MPPT Efficiency: >99% Derating Temperature: >45 deg C Phase: Three Phase
DC Injection Current	<0.5%
Display Type	LCD
Frequency	50 Hz
Frequency Range	Grid: 47 to 52
Input Power	78 kW
Interface	RS485, RS232, Wi-Fi & LAN
Max. Input Current	160 Amp
Maximum Input Voltage	1000 V
Model	SUN-60K-G03 60kW
Mppt Voltage Range	200 to 850 V
Noise Level	<25 db
Number of MPPT	4
Operating Temperature	-25 to 65 deg C
Output Current	100/95.7 Amp
Output Voltage	220-380 V
Power Factor	0.8 Leading to 0.8 Lagging
Rated Current	90.9/87 Amp
Rated Power	60 kW
Short Circuit Current	240 Amp
Standard	IP65, CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1 & IEC/EN 62109-2
Start-up DC input Voltage	250 V
cooling method	Natural Cooling
Country of origin	China
Manufacturer Details	No. 26, South YongJiang Road, Daqi, Beilun, NingBo, Zhejiang, China
Packer Details	No. 26, South YongJiang Road, Daqi, Beilun, NingBo, Zhejiang, China
Importer Details	Daystar Solar, H-5, 3rd Aveune, Anna Nagar East, Chennai-600102
Common/Generic Name	Ongrid Inverter
Dimensions LxWxH	64.75x53.7x30.35 cm
Weight	47 kg

Show All Specifications

Product Details

The Deye SUN-60K-G03 60kW 3 Phase 4 MPPT Ongrid Inverter is a top-of-the-line solar inverter that offers exceptional performance and reliability. With a wide output voltage range and maximum active power of 66 kW, this inverter is designed to optimize energy production in any environment. The inverter features advanced safety features such as zero export application, insulation resistance protection, and ground fault monitoring. Its robust design includes AC short circuit protection, anti-islanding protection, and temperature protection for long-lasting performance. With a sleek LCD display and remote software upload capability, the Deye inverter is a smart choice for any solar energy system.
