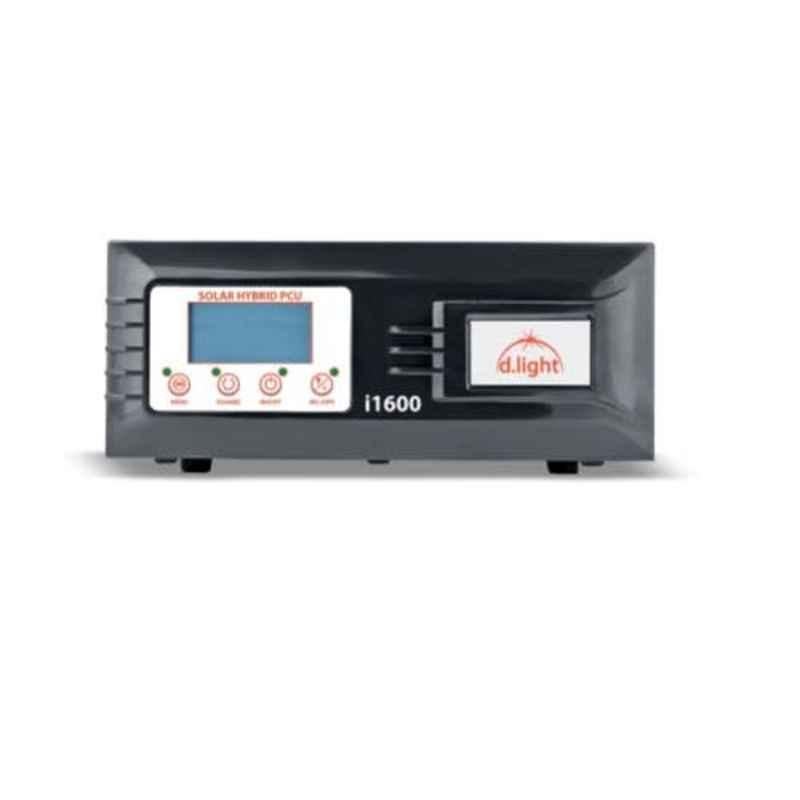

D.Light i1600 1100VA Hybrid PCU Solar Inverter, DL020

Name: D.Light i1600 1100VA Hybrid PCU Solar Inverter, DL020
Brand: d.light
SKU: MSN85804W4O492
Price: 8399 INR
Availability: OutOfStock

₹8,399 (Incl. of all taxes)

₹7,117 ₹1,282 GST

MRP ₹14,990 43% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Advanced Protection.
Intelligent Charge Sharing with ISFT.
Pure Sine Wave for Efficient & Silent Operation.
Powerful Charging Even at Low Voltage.
High Efficiency Saving on the Electricity Bill.
Intelligent Multi Stage Charging for Longer Battery Life.
Large Digital Display for Ease of Use.
High Capacity In-Built Solar Charge Controller.
Ch-Charging Current =20A+2A Solar + Mains Till Battery Boost Voltage with Maximum Solar Sharing. System Will Not Disconnect Grid In Any Case.
Eco-Charging Current=20A+2A Solar + Mains Till Boost Voltage, System Will Cut Off the Mains When Battery Voltage Reaches Boost Voltage Level & Output Load Is Transferred to Solar + Battery & Grid Reconnected <=11.8/11.2V Per Battery.

Show All Key Features

Product Specifications

Brand	d.light
Additional Details	Type of Solar Charger: PWM Grid Low Cut Voltage (UPS load/Normal load): 180/100 + 10 Vac Grid High Cut Voltage (UPS load/Normal load): 265/280 + 10 Vac Selection of UPS Load/Normal Load: Through Switch LCD Display Parameters: PV Current, Battery voltage, Mains voltage, UPS ON/OFF, UPS Mode, Symbol of sun (Smily), if solar available, (non smily symbol in absence of solar), Load percentage (0 to 125%), over load, short cut, fault, battery low, over temp, PV reverse, Fuse trip Front Panel Details: Display with Tact Switch Rear Panel Details: 0/P Socket, Circuit Breaker, Mains & Batt. Cable & Fan Indications LED: 4 LEDs for Switch Status Mains Connection: 3 Core Copper Cable Size 0.75 sqmm & 1.25m Length Output: Socket 6A, Fuse in Battery Path: Internal Fuse & Input Protection: Through Circuit Breaker
Battery Charging Current(A)	20±2 Amp
Current Rating	50 Amp
Dimensions	37x35x18.5 cm
Efficiency	>90%
Item Code	DL020
Model	i1600
Noise(dB)	<50 dB
Nominal Voltage	Output: 220 V±7 V AC
Operating DC Voltage	12 V DC
Operating Temperature	0-50 deg C
Power(WP)	500 W
Protection	Overload, Battery Deep discharge Battery Overcharge, 0/P Short circuit (1 retry), Battery Hi, PV Reverse, Over Temp, Fuse Trip & Battery Reverse
Protection Class	IP20
Storage Temperature	0-65 deg C
Voltage Rating	1100 VA
Warranty	30 Months
Waveform	Pure Sine Wave
Weight	11.5 kg
Country of origin	India
Manufacturer Details	d.light Energy Pvt. Ltd. 102, Ganga Chamber, 6A/1, W.E.A. Karol Bagh, New Delhi-110 005, India
Packer Details	d.light Energy Pvt. Ltd. 102, Ganga Chamber, 6A/1, W.E.A. Karol Bagh, New Delhi-110 005, India
Common/Generic Name	Solar Inverter
Dimensions LxWxH	37x35x18.5 cm
Weight	11.5 kg

Show All Specifications

Product Details

D.Light i1600 1100VA Hybrid PCU Solar Inverter, DL020 is a premium quality product from d.light . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All D.Light i1600 1100VA Hybrid PCU Solar Inverter, DL020 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture D.Light i1600 1100VA Hybrid PCU Solar Inverter, DL020, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. d.light products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of d.light Solar Inverter .
