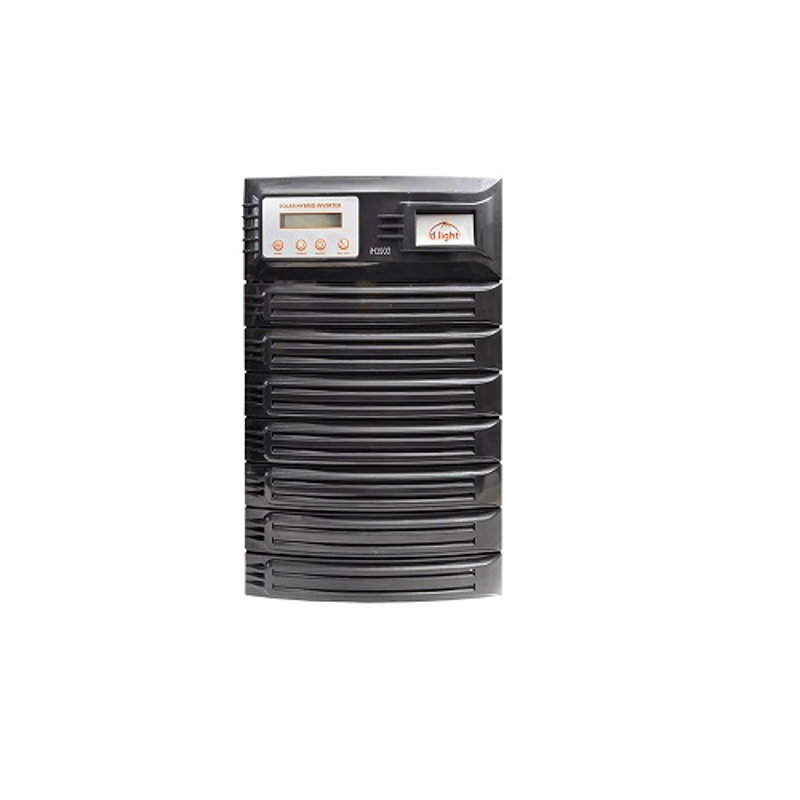

D.Light iH3900 3500VA Hybrid PCU Solar Inverter, DL023

Name: D.Light iH3900 3500VA Hybrid PCU Solar Inverter, DL023
Brand: d.light
SKU: MSNRKREZOZW89N
Price: 26369 INR
Availability: OutOfStock

₹26,369 (Incl. of all taxes)

₹22,346 ₹4,023 GST

MRP ₹35,500 25% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

Advanced Protection.
Intelligent Charge Sharing with ISFT.
Pure Sine Wave for Efficient & Silent Operation.
Powerful Charging Even at Low Voltage.
High Efficiency Saving on the Electricity Bill.
Intelligent Multi Stage Charging for Longer Battery Life.
Large Digital Display for Ease of Use.
High Capacity In-Built Solar Charge Controller.
Ch-Charging Current =20A+1A Solar + Mains Till Battery Boost Voltage with Maximum Solar Sharing. System Will Not Disconnect Grid In Any Case.
Eco-Charging Current=20A+1A Solar + Mains Till Boost Voltage, System Will Cut Off the Mains When Battery Voltage Reaches Boost Voltage Level & Output Load Is Transferred to Solar + Battery & Grid Reconnected <=11.5 V Per Battery.

Show All Key Features

Product Specifications

Brand	d.light
Additional Details	Type of Solar Charger: PWM Grid Low Cut Voltage (UPS load/Normal load): 180/100 + 10 Vac Grid High Cut Voltage (UPS load/Normal load): 265/280 + 10 Vac Selection of UPS Load/Normal Load: Through Switch Front Panel Details: Display with Tact Switch Rear Panel Details: Fan, MCB, Rotory, Terminal & Switch Indications LED: 4 LEDs for Switch Status Mains Connection: Terminal 30A, Output: Terminal 30A, Fuse in Battery Path: Through MCB & Input Protection: Through MCB LCD Display Parameters: PV Current, Battery Voltage, Mains Voltage, PCU on-off, UPS Mode on-off, Solar On-off, Load Percentage (0 to 150%), Load Status (on solar, battery or grid), Charging Status, Over Load, Short Circuit Fault, Battery Low, Over Temp, PV Reverse & MCB Trip
Battery Charging Current(A)	20±2 Amp
Current Rating	50 Amp
Dimensions	52x44x55 cm
Efficiency	>90%
Item Code	DL023
Model	iH3900
Noise(dB)	<50 dB
Nominal Voltage	Output: 220 V±7 V AC
Operating DC Voltage	48 V DC
Operating Temperature	0-50 deg C
Power(WP)	3500 W
Protection	Batt. Low, Batt. High, Overload, Short Circuit, Over Temp, PV Reverse & MCB Trip/Fuse Trip
Protection Class	IP20
Storage Temperature	0-65 deg C
Voltage Rating	3500 VA
Warranty	30 Months
Waveform	Pure Sine Wave
Weight	36 kg
Country of origin	India
Manufacturer Details	d.light Energy Pvt. Ltd. 102, Ganga Chamber, 6A/1, W.E.A. Karol Bagh, New Delhi-110 005, India
Packer Details	d.light Energy Pvt. Ltd. 102, Ganga Chamber, 6A/1, W.E.A. Karol Bagh, New Delhi-110 005, India
Common/Generic Name	Solar Inverter
Dimensions LxWxH	52x44x55 cm
Weight	36 kg

Show All Specifications

Product Details

D.Light iH3900 3500VA Hybrid PCU Solar Inverter, DL023 is a premium quality product from d.light . Moglix is a well-known ecommerce platform for qualitative range of Solar Inverter. All D.Light iH3900 3500VA Hybrid PCU Solar Inverter, DL023 are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture D.Light iH3900 3500VA Hybrid PCU Solar Inverter, DL023, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. d.light products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of d.light Solar Inverter .
