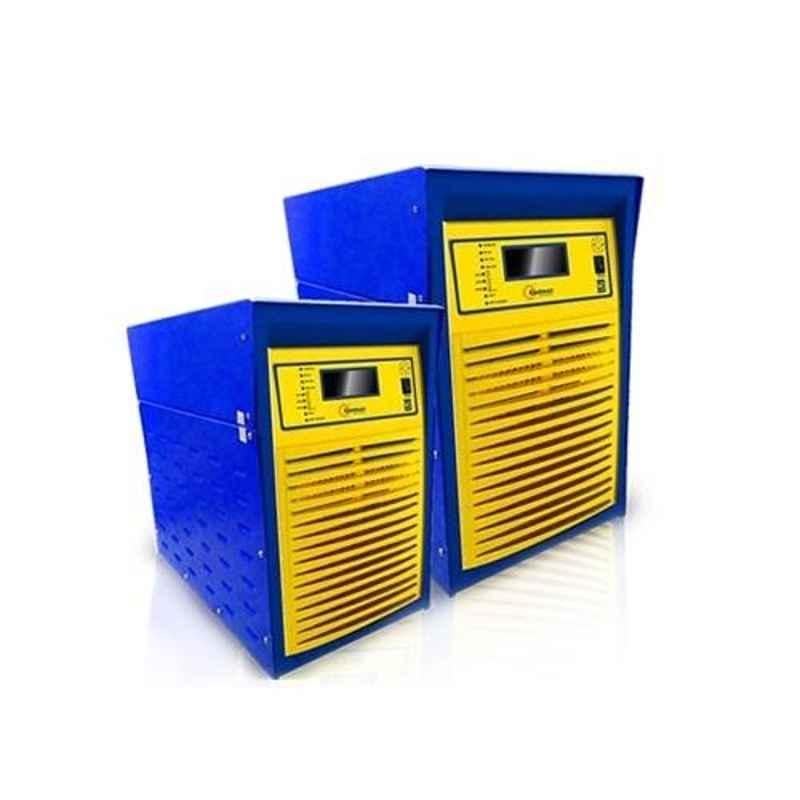

Eastman 10kVA 120V MMPT Based Industrial Solar PCU, ESM10KVA/120

Name: Eastman 10kVA 120V MMPT Based Industrial Solar PCU, ESM10KVA/120
Brand: Eastman
SKU: MSN8KLP21ORN5V
Price: 1720155 INR
Availability: OutOfStock

₹344,031 (Incl. of all taxes)

₹291,552 + ₹52,479 GST

AVAILABLE ON REQUEST

About This Product

Key Features

Single Solar Array.

Product Specifications

Brand	Eastman
Technology	MPPT
Item Code	ESM10KVA/120
Load Capacity	10 kVA
Nominal Voltage	120 V
Notes	Images are reference purpose only. Actual product may be differ as per shown images.
Protection	Short Circuit Protection: Yes
Weight	45 kg
Country of origin	India
Manufacturer Details	Eastman Cast & Forge Ltd., G.T. Road, Near Airport , Ludhiana, Punjab-141120, India, Phone: +91-8448233444
Packer Details	Eastman Cast & Forge Ltd., G.T. Road, Near Airport , Ludhiana, Punjab-141120, India, Phone: +91-8448233444
Common/Generic Name	Inverter
Dimensions LxWxH	48.4x27.7x77.5 cm
Weight	45 kg

Show All Specifications

Product Details

PCU VA	10000
INPUT PARAMETERS
Nominal I/P DC Voltage (V)	120 V
Low Battery Warning (V)	108±2 V
Low Battery Cut off (V)	105±2 V
OUTPUT PARAMETERS
Waveform	Pure Sinewave
Frequency Regulation	50 Hz ±1 Hz
Peak Efficiency of Inverter	89%
Overload Capacity (IT Load Selection)	110% for 60 sec & 150% for 30 sec & 200% for 2 sec
Overload Capacity (Normal Load Selection)	120% for 60 sec (3 Retry) & 150% for 30 sec (3 Retry) & 200% for 2 sec (No Retry)
Distortion (vTHD)	<3%
Crest factor	3:01
No load Shutdown (W)	25-30
MPPT SOLAR CHARGE CONTROLLER
Technology	DSP Based MPPT Charger
Max Solar Panel Wattage	10 kWp
Input DC Voltage Range (V)	180-450
Bulk Voltage	146 V (Settable from 135-150 V)
Power Conversion Efficiency of Solar Charge Controller	96%
Automatic Temperature compensation (Optional)	-3 mV/ deg C/cell
High Temperature Cut-OFF PCU/ MPPT	102 deg C ± 5 deg C
High Temperature MPPT Charger Reconnect	85 deg C ± 5 deg C
