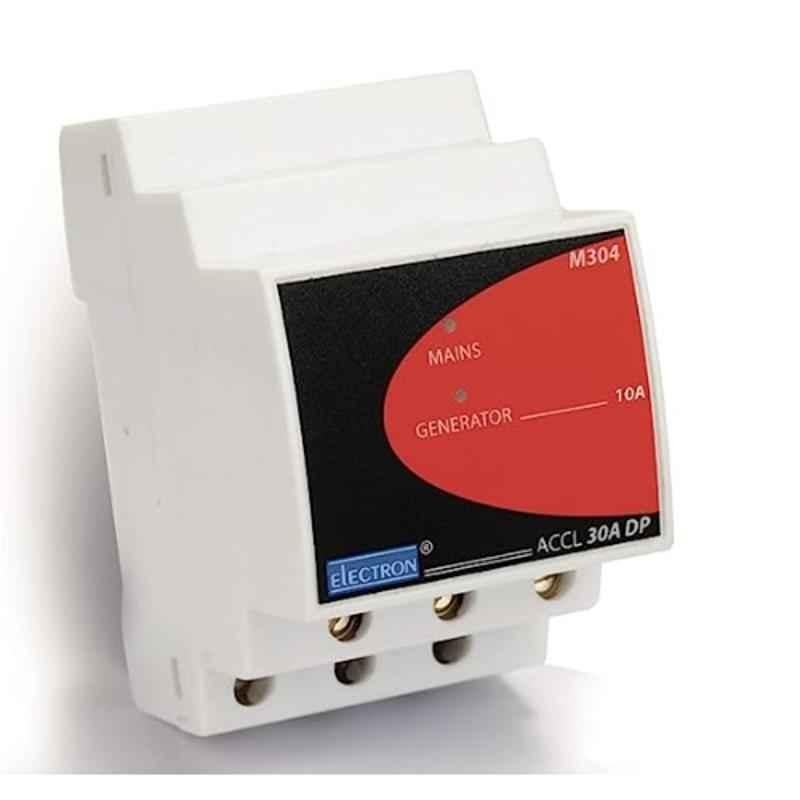

Electron M304 10A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/10A ACCL

Name: Electron M304 10A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/10A ACCL
Brand: Electron
SKU: MSN85801N2QL92
Price: 897 INR
Availability: OutOfStock

₹897 (Incl. of all taxes)

₹761 ₹136 GST

MRP ₹1,416 36% OFF

AVAILABLE ON REQUEST

Item Code

M304/10A ACCL
M304/16A ACCL
M304/2.5A ACCL
M304/20A ACCL
M304/3A ACCL
M304/4A ACCL
M304/5A ACCL
M304/6A ACCL

Moglix Insights

About This Product

Key Features

ACCL Allows Unrestricted Supply from Mains.
Best-in-Class Design & Aesthetics, 54mm Width (3 Mcbs Wide).
Generator Current Allotment is Software Calibrated in Amps & Sealed in Each ACCL.
Microcontroller Based Design for Superior Performance Ultra-Low Self Consumption of Power.
Assured Availability of Allotted Current - No Less, No More, Clear Indication of All Operational States.
DIN Channel Mountable Enclosures with Two-Position Locks Save Space & Make Installation Hassle-free.
Electron ACCL is a Fully Automatic, High Precision System Installed in Apartments, Residential Complexes, Commercial Buildings.
When Ever the Load Current Exceeds the Allotment, Power is Automatically Switched Off for 8-12 Seconds & then Automatically Restored.
When the Main Supply Fails & Stand by Generator Supply is on, It Connects the DG Power to Each Consumer in Sequence & Starts Monitoring its Load.

Show All Key Features

Product Specifications

Brand	Electron
Number of Phases	Single Phase
Body Material	FR Polycarbonate
Current	EB: 30 Amp & DG: 10 Amp
Dimensions	54x85x75 mm
Item Code	M304/10A ACCL
Model	M304
Power	2000 W
Country of origin	India
Manufacturer Details	MANI SALES (BANGALORE), No.6, Ground & First Floor, Krishnappa Compound, Off, Kanakapura Rd Jarganahalli, JP Nagar 7th Phase, Bengaluru, Karnataka-560078, India
Packer Details	MANI SALES (BANGALORE), No.6, Ground & First Floor, Krishnappa Compound, Off, Kanakapura Rd Jarganahalli, JP Nagar 7th Phase, Bengaluru, Karnataka-560078, India
Common/Generic Name	Changeover Switch
Dimensions LxWxH	8.5x5.4x7.5 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Electron M304 10A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/10A ACCL. This versatile product falls under the category of Changeover Switches, and is confidently brought to you by the trusted brand, Electron. With dimensions of 54x85x75 mm and a body material made of FR Polycarbonate, this device is designed to efficiently handle both EB (30 Amp) and DG (10 Amp) currents. Boasting a power capacity of 2000 W, the M304 model operates on a single phase system. Enjoy the convenience and reliability that comes with the item code M304/10A ACCL.
