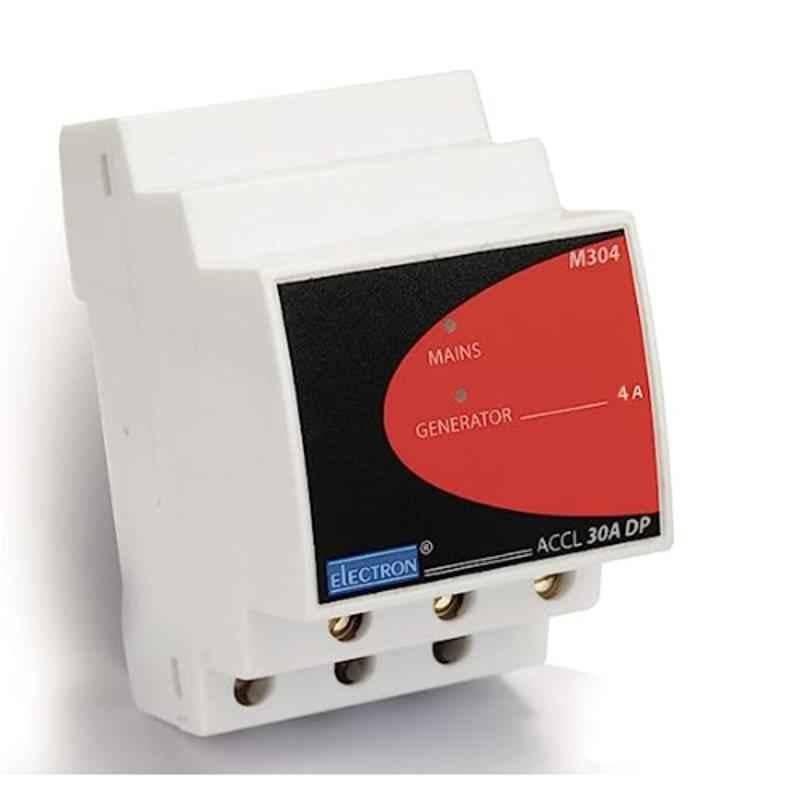

Electron M304 4A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/4A ACCL

Name: Electron M304 4A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/4A ACCL
Brand: Electron
SKU: MSNL5GL4680PK4
Price: 1049 INR
Availability: OutOfStock

₹1,049 (Incl. of all taxes)

₹888 ₹161 GST

MRP ₹1,416 25% OFF

AVAILABLE ON REQUEST

Item Code

M304/4A ACCL
M304/10A ACCL
M304/16A ACCL
M304/2.5A ACCL
M304/20A ACCL
M304/3A ACCL
M304/5A ACCL
M304/6A ACCL

Moglix Insights

About This Product

Key Features

ACCL Allows Unrestricted Supply from Mains.
Best-in-Class Design & Aesthetics, 54mm Width (3 Mcbs Wide).
Generator Current Allotment is Software Calibrated in Amps & Sealed in Each ACCL.
Microcontroller Based Design for Superior Performance Ultra-Low Self Consumption of Power.
Assured Availability of Allotted Current - No Less, No More, Clear Indication of All Operational States.
DIN Channel Mountable Enclosures with Two-Position Locks Save Space & Make Installation Hassle-free.
Electron ACCL is a Fully Automatic, High Precision System Installed in Apartments, Residential Complexes, Commercial Buildings.
When Ever the Load Current Exceeds the Allotment, Power is Automatically Switched Off for 8-12 Seconds & then Automatically Restored.
When the Main Supply Fails & Stand by Generator Supply is on, It Connects the DG Power to Each Consumer in Sequence & Starts Monitoring its Load.

Show All Key Features

Product Specifications

Brand	Electron
Number of Phases	Single Phase
Body Material	FR Polycarbonate
Current	EB: 30 Amp & DG: 4 Amp
Dimensions	54x85x75 mm
Item Code	M304/4A ACCL
Model	M304
Power	800 W
Country of origin	India
Manufacturer Details	MANI SALES (BANGALORE), No.6, Ground & First Floor, Krishnappa Compound, Off, Kanakapura Rd Jarganahalli, JP Nagar 7th Phase, Bengaluru, Karnataka-560078, India
Packer Details	MANI SALES (BANGALORE), No.6, Ground & First Floor, Krishnappa Compound, Off, Kanakapura Rd Jarganahalli, JP Nagar 7th Phase, Bengaluru, Karnataka-560078, India
Common/Generic Name	Changeover Switch
Dimensions LxWxH	8.5x5.4x7.5 cm
Weight	0.2 kg

Show All Specifications

Product Details

Electron M304 4A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/4A ACCL is a premium quality product from Electron . Moglix is a well-known ecommerce platform for qualitative range of Changeover Switches. All Electron M304 4A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/4A ACCL are manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field. The materials utilized to manufacture Electron M304 4A DP FR Polycarbonate Single Phase Automatic Changeover Cum Current Limiter Relay Logic, M304/4A ACCL, are sourced from the most reliable and official vendors, chosen after performing detailed market surveys. Electron products are widely acknowledged in the market for their high quality. We are dedicatedly involved in providing an excellent quality array of Electron Changeover Switches .
