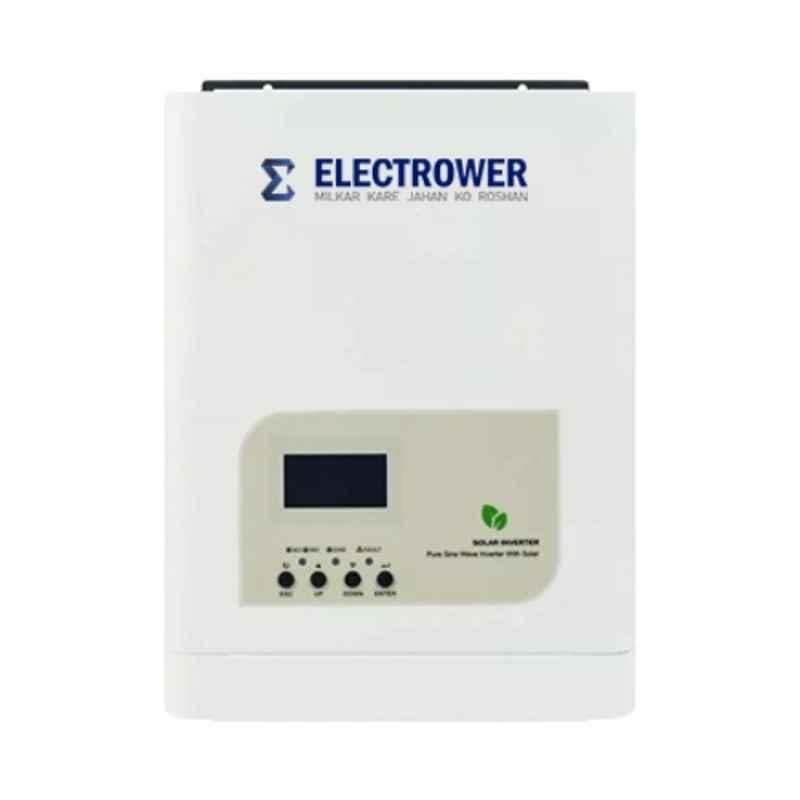

Electrower 10kW 150V Triple MPPT On Grid & Off Grid Pure Sine Wave Solar Inverter with Battery Less Function

₹107,415 (Incl. of all taxes)

₹102,300 ₹5,115 GST

MRP ₹120,000 10% OFF

AVAILABLE ON REQUEST

About This Product

Key Features

  • Overload Protection, Short Circuit Protection & Surge Protection.

  • Reverse Polarity Protection, Over Temperature Protection, Low Battery Cutoff, Communication & Monitoring.

Product Specifications

Brand
Additional Details
Output Voltage Range: 180-260 V AC
Battery Mode Efficiency: 93% or Higher
Inverter Charger Mode: Integrated Smart Charging System
Surge Power Capacity: 6.4 kW for a Short Period (2x Nominal Power)
Inverter Efficiency: 95-98% (Depending on Model & Brand)
Battery Capacity
200-400 Ah
Battery Type
Lithium-ion
Battery Voltage
48/96 V DC
Certification
IEC 62109, CE, RoHS, ISO & BIS
Charging Current
100-120 A
Communication Port
RS232 & RS485
Display Type
LED
Humidity
0 to 95% Non-Condensing
Input Power
12-13 kW
Max. Input Current
20-30 A
Maximum Input Voltage
500-600 V DC
Mppt Voltage Range
250-500 V DC
Noise Level
<50 dB
Number of MPPT
2 (For Optimizing Energy from Different Solar Arrays)
Operating Temperature
-10 to 55 deg C
Output Frequency
50 Hz
Output Power
10000 W
Output Voltage
Single Phase: 230 V AC & Three Phase: 400 V AC
Output Waveform
Pure Sine Wav
Power Factor
Output: 0.8 to 1.0
Protection Class
IP65
Rated Output Current
42-45 A
Rated Power
10 kW
Start-up Voltage
150 V DC
Voltage Range
150-550 V DC
Warranty
3 Years
cooling method
Smart Fan
Country of origin
India
Manufacturer Details
Electrower Technology Private Limited, Plant No.- 6, The Printers House Pvt.Ltd, 22/1, Mathura Road, Ballabhgarh, Faridabad, Haryana-121004
Packer Details
Electrower Technology Private Limited, Plant No.- 6, The Printers House Pvt.Ltd, 22/1, Mathura Road, Ballabhgarh, Faridabad, Haryana-121004
Common/Generic Name
Solar Inverter
Dimensions LxWxH
50x40x20 cm
Weight
40 kg
Show All Specifications

Product Details

Introducing the Electrower 10kW 150V Triple MPPT On Grid & Off Grid Pure Sine Wave Solar Inverter with Battery Less Function. Perfectly designed for all your solar power needs, this innovative product from Electrower combines advanced technology with user-friendly features. With its triple MPPT functionality, this solar inverter ensures optimal energy conversion, maximizing the efficiency of your solar power system. The on-grid and off-grid capabilities provide flexibility, allowing you to use solar power even in remote areas. The cooling method of this inverter is through a smart fan, ensuring efficient and reliable operation. Operating at temperatures ranging from -10 to 55 degrees Celsius, the Electrower Solar Inverter can withstand various climate conditions. The LED display provides clear and easy-to-read information, making it convenient to monitor and control your solar power system. With a rated output current of 42-45 A, this inverter is suitable for both residential and commercial applications. Additional details include an output voltage range of 180-260 V AC, MPPT voltage range of 250-500 V DC, and a charging current of 100-120 A. Invest in clean, sustainable energy with the Electrower Solar Inverter.
