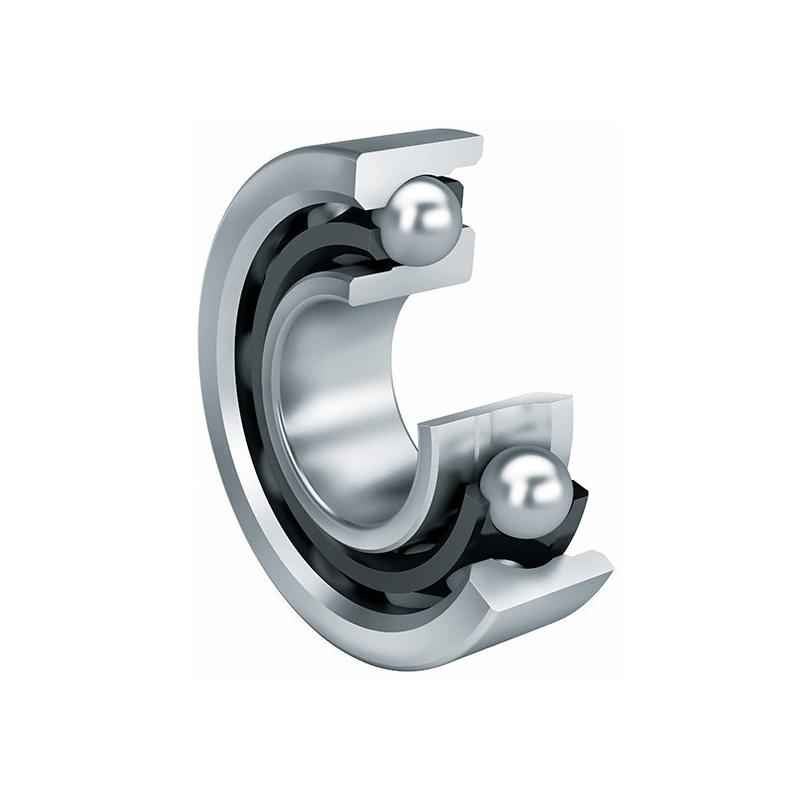

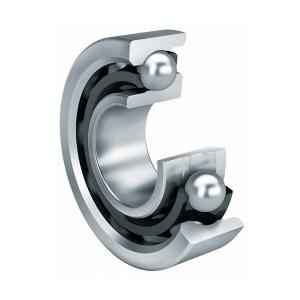

FAG 3209-BD-XL-TVH-L285 Angular Contact Ball Bearing 45x85x30.2 mm

₹3,575 (Incl. of all taxes)

₹3,033 ₹542 GST

MRP ₹5,169 30% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	FAG
Bearing Number	3209-BD-XL-TVH-L285
Bore Diameter	45 mm
Outer Diameter	85 mm
Width	30.2 mm
Basic Dynamic Load	50 kN
Contact Angle	30 deg
Enclosure	Open
Lubrication Enhancement	Non-Standard
Operating Temperature	Upto 120 deg C
Price Type	Domestic
Radial Internal Clearance	Normal
Bore Type	Standard
Cage Material	Polyamide
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product
Type of Ball Bearing	Angular Contact
Country of origin	India
Manufacturer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Packer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Common/Generic Name	Ball Bearing
Dimensions LxWxH	100x55x21 mm
Weight	17 g

Show All Specifications

Product Details

Ball bearings are an essential component for a wide range of applications in various industries, and the FAG brand has been a leading name in the Bearings & Power Transmission category for many years. The 3209-BD-XL-TVH-L285 is a standout product from the FAG range, featuring a bore diameter of 45mm and an outer diameter of 85mm. The ball bearing is designed with a standard bore type and normal radial internal clearance, making it suitable for a wide range of applications. The contact angle of 30 degrees ensures optimal contact between the ball and raceway, providing enhanced load carrying capacity and extended bearing life.The ball bearing has an open enclosure, which makes it easier to lubricate and inspect. The 30.2mm width of the bearing enables it to handle high loads without sacrificing speed. The bearing is rated for a maximum operating temperature of up to 120 degrees Celsius, making it suitable for high-temperature applications

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other FAG Ball Bearings. available at Moglix in the lowest price range.
