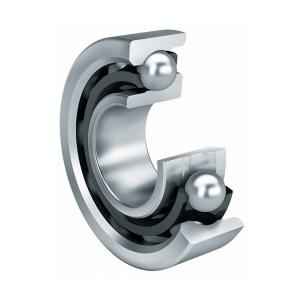

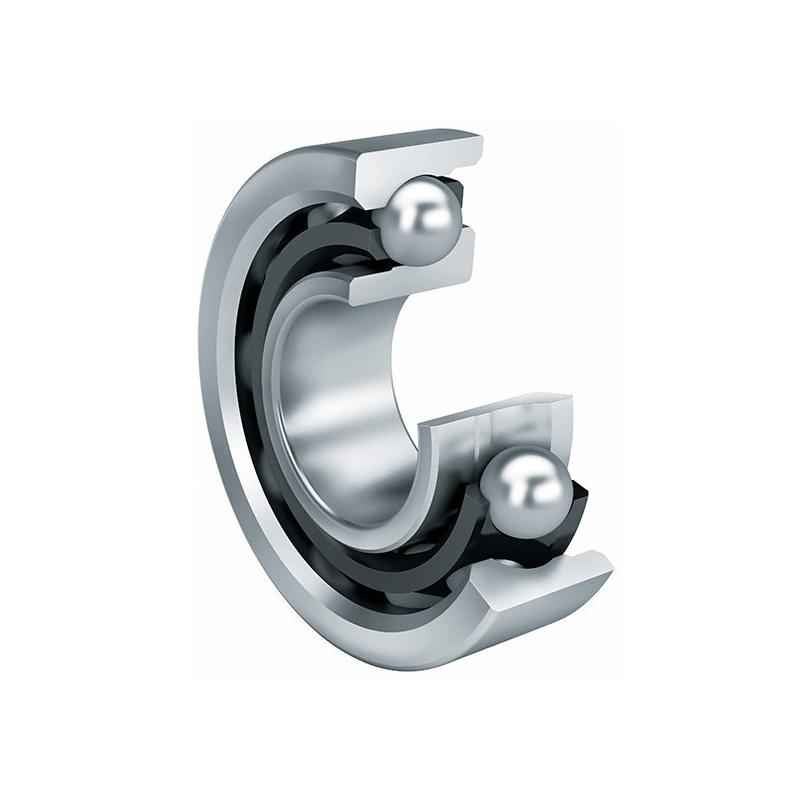

FAG 3316-BD-XL-TVH-C3 Angular Contact Ball Bearing 80x170x68.3 mm

₹25,506 (Incl. of all taxes)

₹21,617 ₹3,889 GST

MRP ₹45,657 44% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	FAG
Bearing Number	3316-BD-XL-TVH-C3
Bore Diameter	80 mm
Outer Diameter	170 mm
Width	68.3 mm
Basic Dynamic Load	199 kN
Contact Angle	30 deg
Enclosure	Open
Limiting Speed	3950 rpm
Lubrication Enhancement	Standard
Operating Temperature	Upto 120 deg C
Price Type	Imported
Radial Internal Clearance	C3
Bore Type	Standard
Cage Material	Polyamide
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product
Type of Ball Bearing	Angular Contact
Country of origin	India
Manufacturer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Packer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Common/Generic Name	Ball Bearing
Dimensions LxWxH	100x55x21 mm
Weight	17 g

Show All Specifications

Product Details

Ball bearings are essential components for any mechanical system, ensuring smooth and efficient operation without any unwanted friction. The FAG 3316-BD-XL-TVH-C3 ball bearing, designed for superior performance, is an excellent choice for demanding applications in the Bearings & Power Transmission category. With a width of 68.3 mm, an outer diameter of 170 mm, and a bore diameter of 80 mm, this ball bearing is perfect for a wide range of mechanical systems.The FAG 3316-BD-XL-TVH-C3 ball bearing is built to perform in high-temperature environments, with an operating temperature of up to 120 degrees Celsius. The open enclosure design ensures maximum ventilation, which helps maintain optimal operating conditions for the bearing.The bearing number, contact angle of 30 degrees, and C3 radial internal clearance guarantee consistent performance, while the standard lubrication enhancement and bore type ensure proper lubrication and ease of installation

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other FAG Ball Bearings. available at Moglix in the lowest price range.
