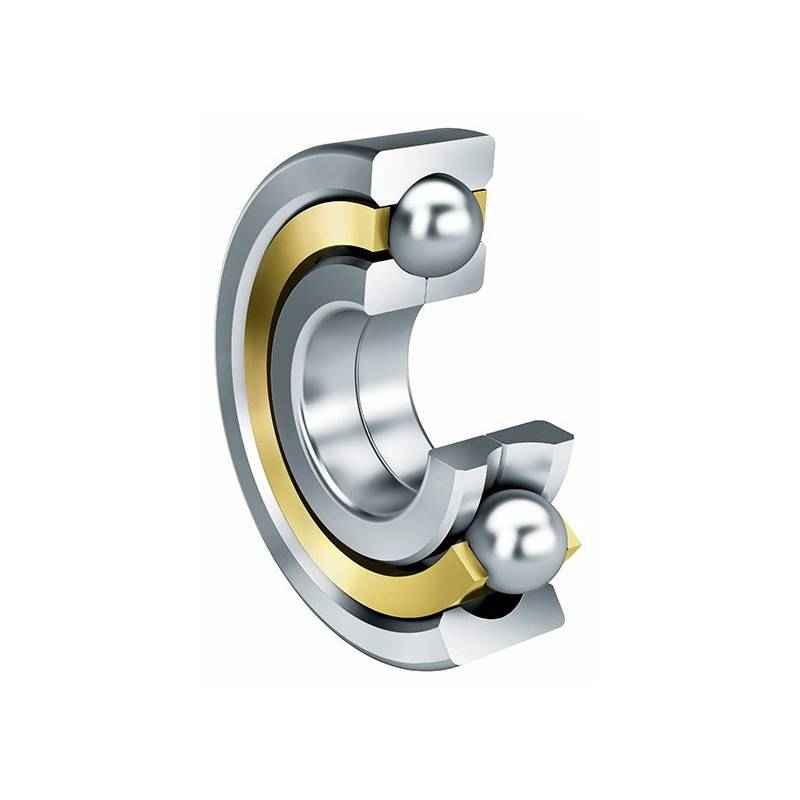

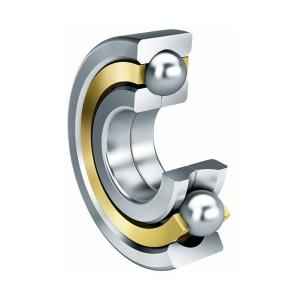

FAG QJ209-XL-TVP-C3 Four Point Contact Ball Bearing 45x85x19 mm

₹3,929 (Incl. of all taxes)

₹3,329 ₹600 GST

MRP ₹6,850 42% OFF

AVAILABLE ON REQUEST

Moglix Insights

FAG is one of the top brand in ball bearings, preferred by 2% of the users

21% of the users prefer ball bearings in ₹3000-4000 price range

About This Product

Product Specifications

Brand	FAG
Bearing Number	QJ209-XL-TVP-C3
Bore Diameter	45 mm
Outer Diameter	85 mm
Width	19 mm
Basic Dynamic Load	66 kN
Contact Angle	35 deg
Enclosure	Open
Limiting Speed	9800 rpm
Lubrication Enhancement	Standard
Operating Temperature	Upto 120 deg C
Price Type	Imported
Radial Internal Clearance	C3
Bore Type	Standard
Cage Material	Polyamide
Notes	Unboxing Video is Mandatory for any Damage or Leakage Product
Type of Ball Bearing	Four Point Contact
Country of origin	India
Manufacturer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Packer Details	148, Barakhamba Rd, Connaught Place, New Delhi, Delhi 110001, Phone: +91-8448233444
Common/Generic Name	Ball Bearing
Dimensions LxWxH	100x55x21 mm
Weight	17 g

Show All Specifications

Product Details

Ball bearings are an essential component in the world of power transmission and bearings. One such premium ball bearing is the FAG QJ209-XL-TVP-C3. This ball bearing belongs to the parent category of bearings and power transmission and is manufactured by the renowned brand FAG. The ball bearing is 19mm wide and can operate in a temperature range of up to 120 degrees Celsius. The ball bearing is open and has an outer diameter of 85mm and a bore diameter of 45mm.The FAG QJ209-XL-TVP-C3 ball bearing is designed for standard bore type and lubrication enhancement. The ball bearing has a radial internal clearance of C3 and is perfect for applications that require high performance and reliability. The contact angle of the ball bearing is 35 degrees, which enables it to handle high axial loads with ease.The ball bearing has a limiting speed of 9800 rpm and a basic dynamic load rating of 66 kN
