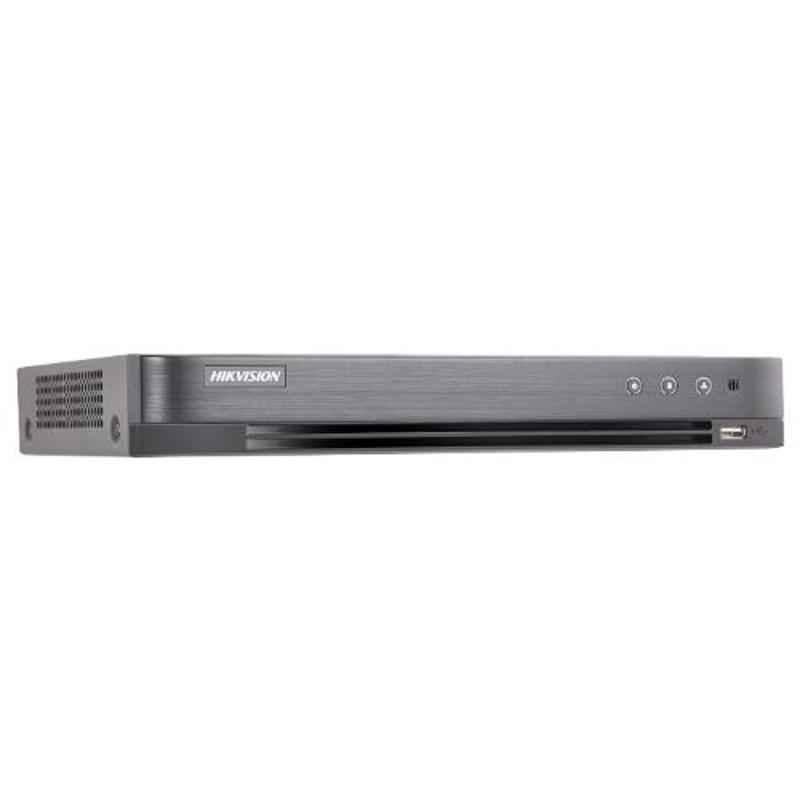

Hikvision 16 Channel 5MP Turbo HD-TVI DVR, DS-7B16HUHI-K2
(5 Reviews)
₹23,880 (Incl. of all taxes)
₹20,237 ₹3,643 GST
About This Product
Key Features
Dual Stream Support.
Video Input & Transmission: Self-Adaptive HDTVI/HDCVI/AHD/CVBS Signal Input.
Upto 2-Ch 6 MP IP Cameras Input.
5 MP/4 MP HDTVI Video Input & Live View.
Defogging Function Enabled for the Supported Analog Cameras.
Long Distance Transmission Over UTP & Coaxial Cable: Max. 800m for 1080p & 1200m for 720p HDTVI Signal.
Compression & Recording: H.265+/H.265/H.264+/H.264 Encoding for the Main Stream, & H.265/H.264 for the Sub-Stream of Analog Cameras.
Connectable to H.265+/H.265/H.264+/H.264 IP Cameras.
H.265+ can be Enabled to Improve Encoding Efficiency & Reduce Data Storage Costs.
Full Channel Recording at Upto 5 MP Resolution.
Storage & Playback: 8/16-Ch Synchronous Playback.
Smart Search for Efficient Playback.
Supports the 3rd Party Cloud Storage (Dropbox/Google Drive/Microsoft Onedrive).
Smart Function: Supports Multiple VCA (Video Content Analytics) Events for Both Analog & Smart IP Cameras.
Supports Line Crossing Detection & Intrusion Detection of all Channels, & 2-Ch Sudden Scene Change Detection.
VCA Information Overlay in Live View & Smart Playback.
VQD (Video Quality Diagnostics).
Supports PTZ Control Via Omnicast VMS of Genetec Protocol.
Network & Ethernet Access: Hik-Connect & DDNS (Dynamic Domain Name System) for Easy Network Management.
Output Bandwidth Limit Configurable.
Show All Key Features
Product Specifications
Brand | |
Audio Bit rate | 64 Kbps |
Audio Compression | G.711u |
Audio Input | 4-Ch, RCA (2.0 VP-P, 1 KΩ) Two-Way: 1-Ch, RCA (2.0 VP-P, 1 KΩ) (Using the 1 st Audio Input) |
Audio Output | 1-Ch, RCA (Linear, 1 KΩ) |
CVBS output | 1-Ch, BNC (1.0 VP-P, 75 Ω), Resolution: PAL: 704x576, NTSC: 704x480 |
Customer Care Number | 1800 222 699 |
Dimensions | 318x242x45 mm |
Encoding resolution | 5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
Frame rate | Main Stream: 5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-Stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
HDMI / VGA output | 1-Ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz VGA: 1-Ch, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 1-Ch, 4K (3840x2160)/30Hz, 2K (2560x1440)/60Hz, 1920x1080/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Hard Disc(SATA)/Hard Disc(Capacity) | 2 SATA Interface/Upto 8 TB Capacity For Each Disk |
IP Video Input | 2-Ch Upto 6 MP Resolution Supports H.265+/H.265/H.264+/H.264 IP Cameras |
Input | HDTVI: 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 AHD: 1080p25, 1080p30, 720p25, 720p30 HDCVI: 1080p25, 1080p30, 720p25, 720p30 CVBS: PAL/NTSC |
Item Code | DS-7B16HUHI-K2 |
Network interface | 1, RJ45 10M/100M/1000M Self-Adaptive Ethernet Interface |
Network protocols | TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP & HTTPS |
Power | Without HDD: ≤25 W |
Remote Connection | 128 |
Serial interface | RS-485 (Half-Duplex) |
Stream Type | Video & Audio |
Synchronous playback | 16-Ch |
USB interface | Front Panel: 1xUSB 2.0 Rear panel: 1xUSB 3.0 |
Video Bit Rate | 32 Kbps to 10 Mbps |
Video Compression | H.265+/H.265/H.264+/H.264 |
Video Input | Analog & HD-TVI: 16-Ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection |
Video Output | Simultaneous HDMI/VGA Output HDMI Output at Upto 4K (3840x2160) |
Voltage | 12 V DC |
Warranty | 1 Year |
Weight | Without HDD: ≤ 2 kg |
Working Humidity | 10-90% |
Working Temperature | -10 to 55 deg C |
Manufacturer Details | Prama Hikvision India Pvt. Ltd.,Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai � 400 063.Tel: +91-22-4041 9900, 2846 9900 |
Packer Details | Prama Hikvision India Pvt. Ltd.,Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai � 400 063.Tel: +91-22-4041 9900, 2846 9900 |
Common/Generic Name | DVR |
Dimensions LxWxH | 318x242x45 mm |
Weight | 618 g |
Show All Specifications
Product Details
The Hikvision 16 Channel 5MP Turbo HD-TVI DVR is a top of the line CCTV camera that is perfect for any home or business security system. With its 16 channels, this DVR can record up to 5MP of video footage, making it one of the most powerful CCTV cameras on the market. If you're looking for a top quality CCTV camera to help keep your home or business safe, then you'll want to check out the Hikvision. This camera is voltage is 12 V DC and it only uses 5 watts of power, making it very energy efficient. The dimensions of the Hikvision are 318x242x45 mm and it has a 1 year warranty. This CCTV Camera is perfect for your security needs. It is lightweight and easy to install. With HDD, it is 2.5 kg.
Browse through the extensive list of DVR at Moglix. Shop online for other Hikvision DVR. available at Moglix in the lowest price range.
Read More
Hikvision 16 Channel 5MP Turbo HD-TVI DVR, DS-7B16HUHI-K2
Verified Purchase
Amit Panjwani
December 24, 2022
Hikvision cctv cameras are great.
I am very happy with the hikvision 16 channel 5mp turbo hd-tvi dvr that i bought from moglix. it is very easy to use and the image quality is excellent. i would definitely recommend this product to anyone looking for a good cctv camera.
Verified Purchase
Doming Francisco
November 2, 2022
This product is awesome.
The hikvision 16 channel 5mp turbo hd-tvi dvr is a great cctv camera. it is very easy to install and the picture quality is excellent. i would highly recommend this camera to anyone looking for a good quality cctv camera.
Frequently Asked Questions
Displaying Questions 2 / 5
Q1:What is included in the box?
Ans:
Dvr, adapter, sata connector, hdd power connector, usb mouse & user manual.
Q2:Can connect to mobile ?
Ans:
Yes, you can connect it with your mobile.
