Imported 100x170x42mm Spherical Roller Thrust Bearing, 29320 E

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Basic Dynamic Load	465 kN
Basic Static Load	1290 kN
Bearing Number	29320 E
Bore Diameter	100 mm
Limiting Speed	3600 rpm
Outer Diameter	170 mm
Type of Roller Bearing	Spherical
Additional Details	Axial Load Factor: min 0.16 Fillet Radius: 1.5 mm Fatigue Load Limit: 156 kN Material: High Carbon Chromium Steel Reference Speed: 2200 rpm
Cage type	Stamped Steel Cage

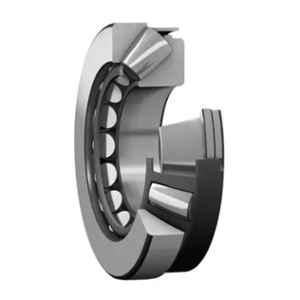

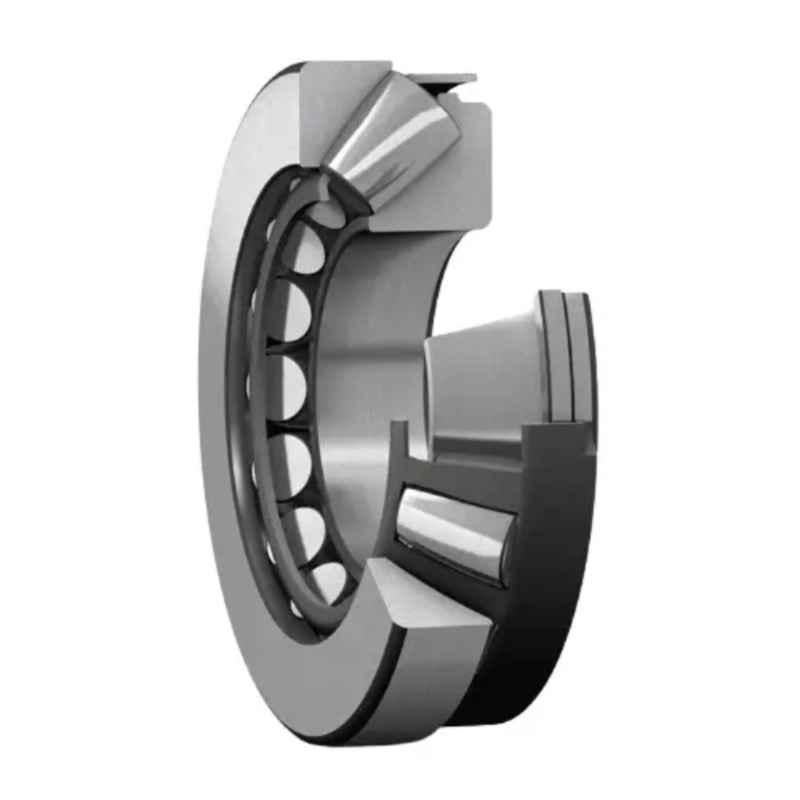

Notes	Image for reference purposes only
Suitable For	Used in Heavy Machinery
Weight	3.65 kg
Width	42 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Thrust Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the high-quality Imported 100x170x42mm Spherical Roller Thrust Bearing, 29320 E. Part of our Roller Bearings category, this exceptional bearing is brought to you by the renowned brand Imported. It falls under the type of Spherical Roller Bearing, providing superior performance and reliability. With a impressive Basic Static Load capacity of 1290 kN, this bearing effortlessly handles heavy loads. Despite its robust construction, it weighs a mere 3.65 kg, ensuring ease of installation and maneuverability. The Bore Diameter of 100 mm perfectly complements its Outer Diameter of 170 mm, offering optimal functionality. It operates at a Limiting Speed of 3600 rpm, guaranteeing efficient and smooth operation. Please note that the image provided is for reference purposes only. Upgrade your machinery with this high-performing Imported Spherical Roller Thrust Bearing!
