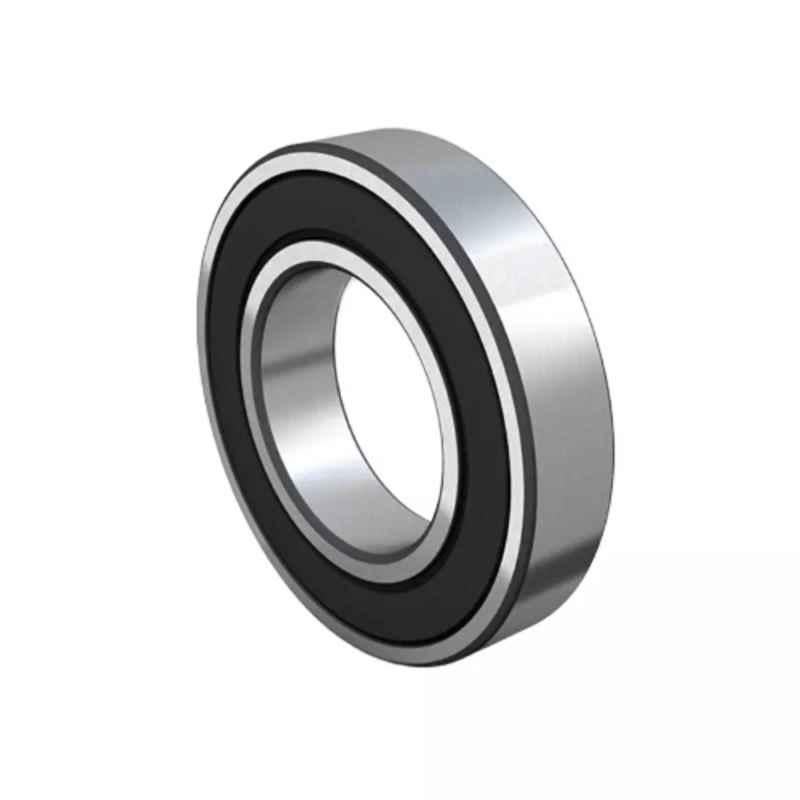

Imported 15x35x14mm Double Row Deep Groove Ball Bearing, 4202ATN9

Name: Imported 15x35x14mm Double Row Deep Groove Ball Bearing, 4202ATN9
Brand: Imported
SKU: MSN457MN064Q9J
Price: 1176 INR
Availability: OutOfStock

₹1,176 (Incl. of all taxes)

₹996 + ₹180 GST

MRP ₹2,668 55% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Bearing Number	4202ATN9
Bore Diameter	15 mm
Outer Diameter	35 mm
Width	14 mm
Limiting Speed	17000 rpm
Additional Details	Fillet Radius: min. 0.6 mm Radius of Shaft/Housing Fillet: max. 0.6 mm Housing Diameter: max. 30.8 mm Fatigue Load Limit: 0.32 kN Material: Steel Shaft Diameter: min. 19.2 mm Shoulder Diameter: 21.5 mm & 29 mm
Dynamic Load Rating	11.9 kN
Notes	Image for reference purposes only
Number of Row	Double Row
Reference speed	32000 rpm
Static Load Rating	7.5 kN
Type of Ball Bearing	Deep Groove
Weight	0.059 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the 'Imported 15x35x14mm Double Row Deep Groove Ball Bearing, 4202ATN9' from our renowned brand 'Imported'. This high-quality ball bearing falls under the category of 'Ball Bearings' and features a deep groove design. With a limiting speed of 17000 rpm, it ensures efficient performance. Its double row construction enhances load-bearing capacity and durability. Its compact width of 14 mm and lightweight design of 0.059 kg make it suitable for various applications. The bore diameter of 15 mm allows for smooth rotation and movement. This bearing can withstand a static load rating of 7.5 kN, ensuring reliability and longevity in demanding conditions.
