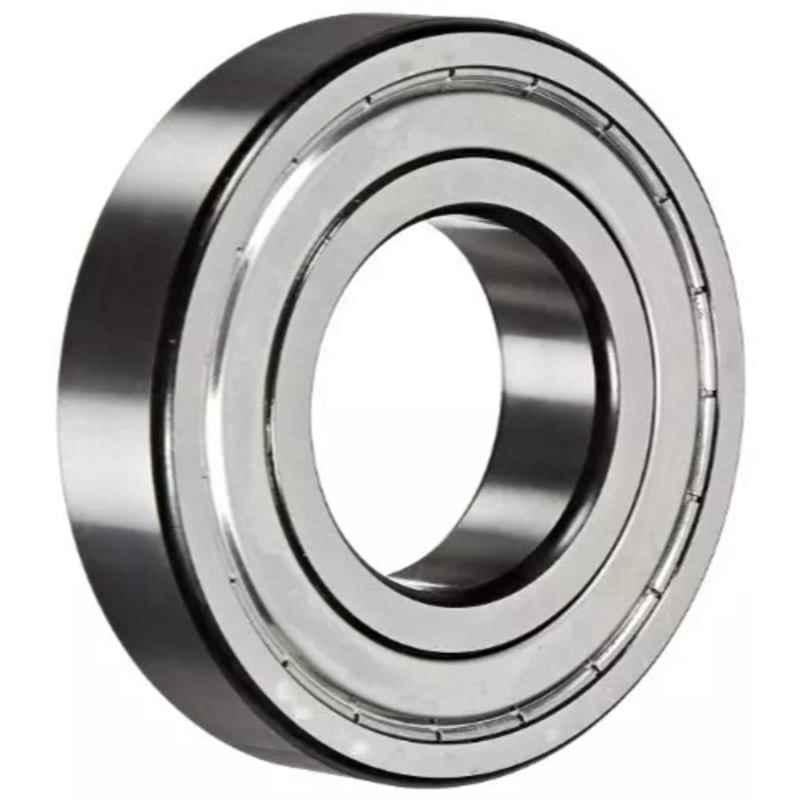

Imported 17x35x10mm Deep Groove Ball Bearing, 6003-2Z

Name: Imported 17x35x10mm Deep Groove Ball Bearing, 6003-2Z
Brand: Imported
SKU: MSNEKPQ8G4DW52
Price: 109 INR
Availability: OutOfStock

₹109 (Incl. of all taxes)

₹92 ₹17 GST

MRP ₹256 57% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6003-2Z
Bore Diameter	17 mm
Outer Diameter	35 mm
Width	10 mm
Limiting Speed	22000 rpm
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 31.2 mm Housing Diameter: max. 33 mm Fatigue Load Limit: 0.137 kN Material: High Carbon Chromium Steel Shaft Diameter: 19-22.9 mm Shoulder Diameter: 23 mm
Dynamic Load Rating	6.37 kN
Reference speed	45000 rpm
Static Load Rating	3.25 kN
Type of Ball Bearing	Deep Groove
Weight	0.041 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 17x35x10mm Deep Groove Ball Bearing, the perfect addition to our extensive selection of ball bearings. Designed for optimized performance, this ball bearing is an essential component for various industrial applications. With a bore diameter of 17mm and a width of 10mm, it effortlessly handles heavy loads with its static load rating of 3.25kN. The deep groove design ensures smooth and efficient operation while the fillet radius of at least 0.3mm ensures durability and longevity. Weighing just 0.041kg, this ball bearing is lightweight yet sturdy. With a limiting speed of 22000 rpm, it guarantees exceptional rotational speeds. Trust the Imported brand for high-quality ball bearings that exceed expectations.
