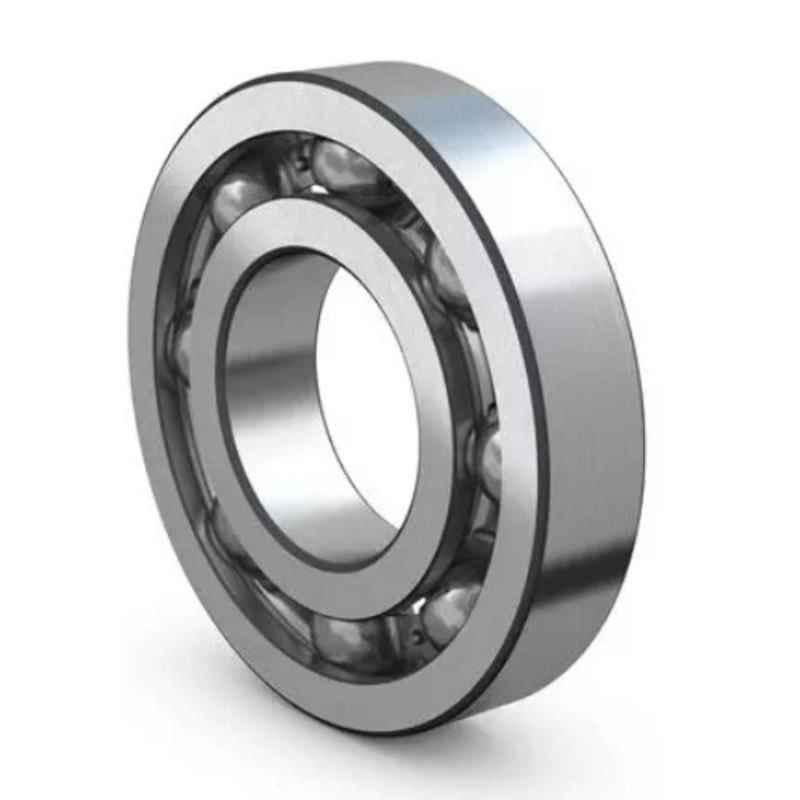

Imported 17x35x10mm Deep Groove Ball Bearing, 6003

Name: Imported 17x35x10mm Deep Groove Ball Bearing, 6003
Brand: Imported
SKU: MSN8KLPNY6YN5V
Price: 89 INR
Availability: OutOfStock

₹89 (Incl. of all taxes)

₹75 + ₹14 GST

MRP ₹221 59% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6003
Bore Diameter	17 mm
Outer Diameter	35 mm
Width	10 mm
Limiting Speed	28000 rpm
Additional Details	Fillet Radius: min. 0.3 mm Radius of Shaft/Housing Fillet: max. 0.3 mm Recess Diameter: 31.2 mm Housing Diameter: max. 33 mm Fatigue Load Limit: 0.137 kN Material: High Carbon Chromium Steel Shaft Diameter: min. 19 mm Shoulder Diameter: 23 mm
Dynamic Load Rating	6.37 kN
Reference speed	45000 rpm
Static Load Rating	3.25 kN
Type of Ball Bearing	Deep Groove
Weight	0.038 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 17x35x10mm Deep Groove Ball Bearing from our renowned brand, Imported. This exceptional ball bearing falls into the Ball Bearings category, satisfying all your ball bearing needs. Designed with a Type of Ball Bearing in Deep Groove, it ensures optimal performance and reliability in various applications. With a Limiting Speed of an impressive 28000 rpm, this bearing guarantees smooth and efficient operations. Weighing only 0.038 kg, it offers lightweight yet sturdy construction. The 10 mm width facilitates easy installation and compatibility with diverse machinery. Boasting a remarkable Static Load Rating of 3.25 kN, it can withstand heavy loads effortlessly. The 17 mm Bore Diameter ensures a perfect fit for your equipment. Additionally, the Fillet Radius is kept at a minimum of 0.3 mm, enhancing the bearing's durability and longevity. Elevate your machinery's performance with the Imported 17x35x10mm Deep Groove Ball Bearing - a reliable and versatile option for various industrial applications.
