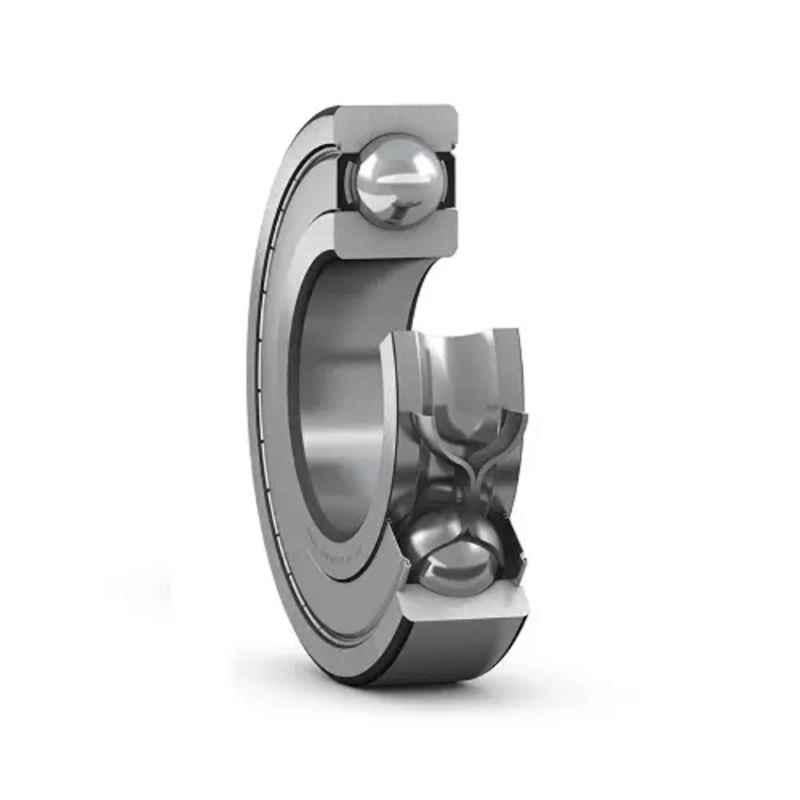

Imported 20x47x14mm Deep Groove Ball Bearing, 6204-2Z

Name: Imported 20x47x14mm Deep Groove Ball Bearing, 6204-2Z
Brand: Imported
SKU: MSN4K6ZXVWG3KQ
Price: 139 INR
Availability: OutOfStock

₹139 (Incl. of all taxes)

₹117 ₹22 GST

MRP ₹328 57% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6204-2Z
Bore Diameter	20 mm
Outer Diameter	47 mm
Width	14 mm
Limiting Speed	17000 rpm
Additional Details	Fillet Radius: min. 1 mm Radius of Shaft/Housing Fillet: max. 1 mm Recess Diameter: 40.59 mm Housing Diameter: max. 41.4 mm Fatigue Load Limit: 0.28 kN Material: Steel Shaft Diameter: 25.6-28.7 mm Shoulder Diameter: 28.8 mm
Dynamic Load Rating	13.5 kN
Reference speed	32000 rpm
Static Load Rating	6.55 kN
Type of Ball Bearing	Deep Groove
Weight	0.11 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 20x47x14mm Deep Groove Ball Bearing, 6204-2Z, a reliable and durable component within the Ball Bearings category. As part of the renowned Imported brand, this high-quality ball bearing boasts a Type of Ball Bearing Deep Groove, ensuring exceptional performance in various applications. The Limiting Speed of 17000 rpm guarantees swift and efficient operation, while the lightweight design, weighing only 0.11 kg, simplifies handling and installation. With a Width of 14 mm and a Bore Diameter of 20 mm, this ball bearing effortlessly accommodates a range of demanding tasks. Additionally, the Static Load Rating of 6.55 kN ensures optimal load-bearing capacity, while the Fillet Radius, with a minimum of 1 mm, enhances overall durability. This Imported 20x47x14mm Deep Groove Ball Bearing, 6204-2Z is the ideal choice for those seeking reliable performance and longevity.
