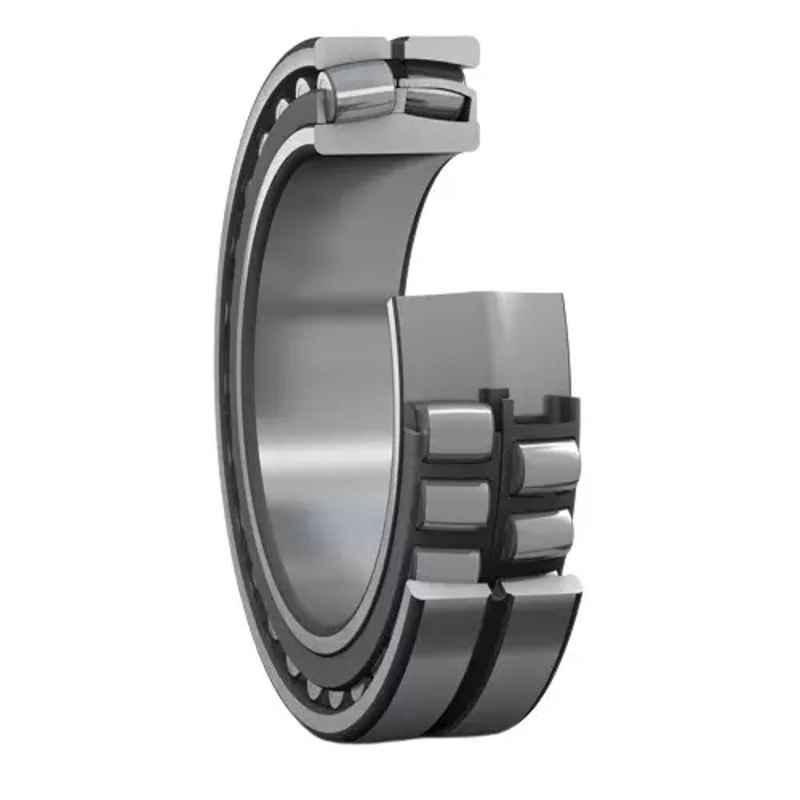

Imported 22326 CCJA/W33VA405 Spherical Roller Bearing, 130x280x93mm

Name: Imported 22326 CCJA/W33VA405 Spherical Roller Bearing, 130x280x93mm
Brand: Imported
SKU: MSNG9VN1W4R6KP
Price: 35086 INR
Availability: OutOfStock

₹35,086 (Incl. of all taxes)

₹29,733 + ₹5,353 GST

MRP ₹77,940 54% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	22326 CCJA/W33VA405
Bore Diameter	130 mm
Outer Diameter	280 mm
Type of Roller Bearing	Spherical
Basic Dynamic Load	1176 kN
Basic Static Load	1320 kN
Limiting Speed	2400 rpm
Additional Details	Fillet Radius: min. 4 mm Fatigue Load Limit: 114 kN
Reference speed	1800 rpm
Suitable For	Wind Turbine Main Shafts, Continuous Casters, Vibratory Applications & High-Speed Applications
Weight	29 kg
Width	93 mm
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Roller Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 22326 CCJA/W33VA405 Spherical Roller Bearing, our premium addition to the Roller Bearings category. This Imported bearing, with a Bore Diameter of 130mm and an Outer Diameter of 280mm, guarantees exceptional performance and durability. Designed with a Type of Roller Bearing Spherical, it is perfectly suited for applications requiring heavy radial loads and misalignment compensation. With a Basic Static Load capacity of 1320kN, it ensures reliable operation even under extreme conditions. Weighing 29kg, this bearing is solidly built and promises long-lasting performance. Its Limiting Speed of 2400rpm guarantees efficient rotation, providing smooth and stable operation. Additionally, with a Fillet Radius of min. 4mm, this bearing offers enhanced stress distribution and improved load support. Elevate your machinery's performance with the Imported 22326 CCJA/W33VA405 Spherical Roller Bearing – the perfect blend of reliability and efficiency.
