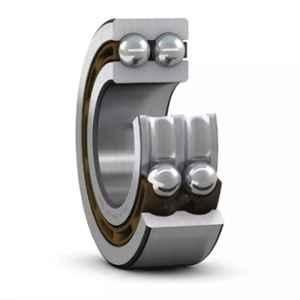

Imported 25x52x18mm Double Row Deep Groove Ball Bearing, 4205ATN9

Name: Imported 25x52x18mm Double Row Deep Groove Ball Bearing, 4205ATN9
Brand: Imported
SKU: MSNZ5262G0XM9X
Price: 1399 INR
Availability: OutOfStock

₹1,399 (Incl. of all taxes)

₹1,185 + ₹214 GST

MRP ₹3,110 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	4205ATN9
Bore Diameter	25 mm
Outer Diameter	52 mm
Width	18 mm
Limiting Speed	11000 rpm
Additional Details	Fillet Radius: min. 1 mm Radius of Shaft/Housing Fillet: max. 1 mm Housing Diameter: max. 46.4 mm Fatigue Load Limit: 0.62 kN Material: Steel Shaft Diameter: min. 30.6 mm Shoulder Diameter: 34.2 mm & 42.8 mm
Dynamic Load Rating	19 kN
Number of Row	Double Row
Reference speed	20000 rpm
Static Load Rating	14.6 kN
Type of Ball Bearing	Deep Groove
Weight	0.17 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the 'Imported 25x52x18mm Double Row Deep Groove Ball Bearing, 4205ATN9' from the renowned brand Imported. This ball bearing falls under the category of Ball Bearings and belongs to the type of Deep Groove. With a limiting speed of 11000 rpm, it ensures efficient and smooth operation even under high-speed conditions. Featuring a double row design, it offers enhanced load-bearing capacity and improved stability. The 18 mm width makes it suitable for various applications. Weighing just 0.17 kg, it is lightweight yet durable. The bore diameter of 25 mm and the static load rating of 14.6 kN further demonstrate its reliability. Bring precision and performance to your machinery with this imported double row deep groove ball bearing.
