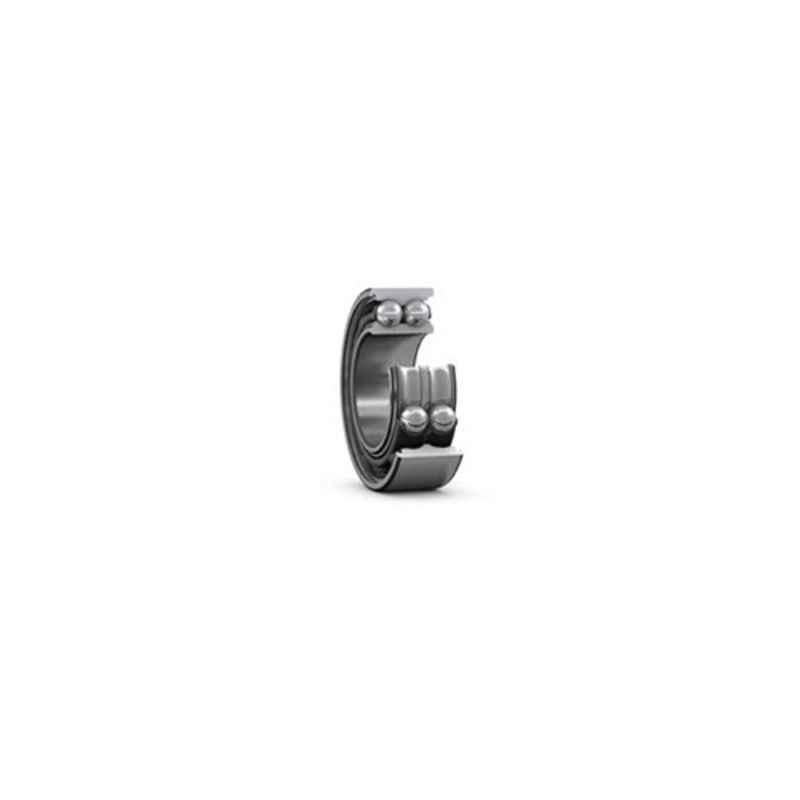

Imported 3204 ATN9 Angular Contact Ball Bearing, 20x47x20.6mm

Name: Imported 3204 ATN9 Angular Contact Ball Bearing, 20x47x20.6mm
Brand: Imported
SKU: MSNPKEPOYJRQ9G
Price: 1329 INR
Availability: OutOfStock

₹1,329 (Incl. of all taxes)

₹1,126 + ₹203 GST

MRP ₹2,972 55% OFF

AVAILABLE ON REQUEST

Moglix Insights

About This Product

Product Specifications

Brand	Imported
Bearing Number	3204 ATN9
Bore Diameter	20 mm
Outer Diameter	47 mm
Width	20.6 mm
Basic Dynamic Load	20.4 kN
Contact Angle	30 deg
Enclosure	Open
Limiting Speed	14000 rpm
Lubrication Enhancement	Standard
Operating Temperature	Upto 120 deg C
Radial Internal Clearance	Normal
Bore Type	Standard
Cage Material	Polyamide
Type of Ball Bearing	Angular Contact
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Imported 3204 ATN9 Angular Contact Ball Bearing is a high-quality product designed specifically for industrial applications. With its compact size of 20x47x20.6mm, this ball bearing is suitable for various machinery needs. Its angular contact design ensures optimal load distribution and enhanced performance. The bearing is built to withstand high temperatures of up to 120 degrees Celsius, making it ideal for demanding operating conditions. The polyamide cage material provides excellent durability and reduces friction. With a width of 20.6mm and a bore diameter of 20mm, this ball bearing offers precise and smooth operation. Its standard bore type and a limiting speed of 14000 rpm make it perfect for use in a wide range of rotational applications. Choose the Imported 3204 ATN9 Angular Contact Ball Bearing for reliable and efficient performance.
