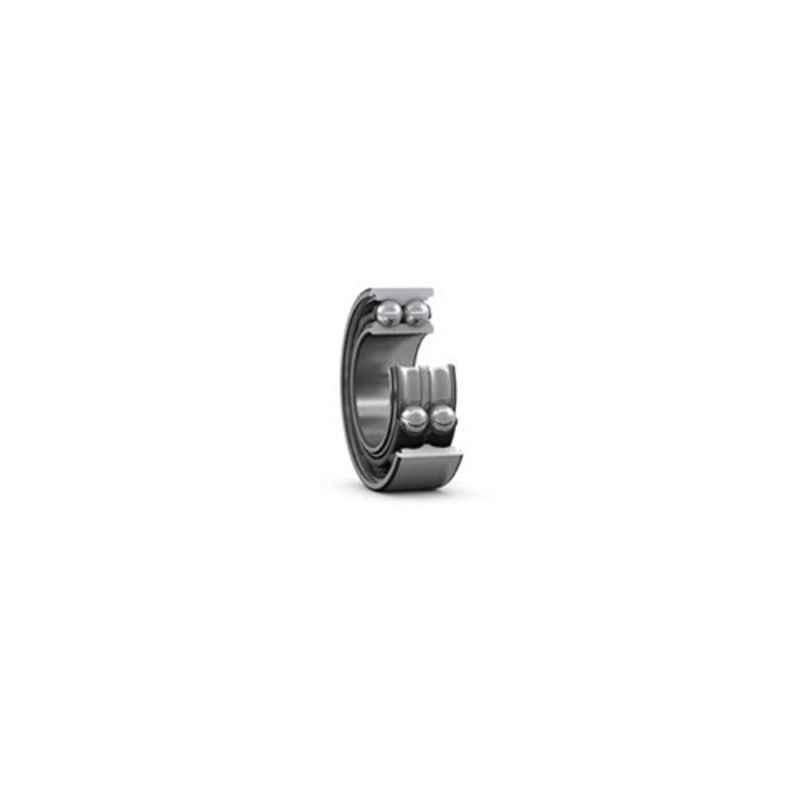

Imported 3309 ATN9/C3 Angular Contact Ball Bearing, 45x100x39.7mm

Name: Imported 3309 ATN9/C3 Angular Contact Ball Bearing, 45x100x39.7mm
Brand: Imported
SKU: MSNNKQGXEPMZ9X
Price: 5529 INR
Availability: OutOfStock

₹5,529 (Incl. of all taxes)

₹4,685 + ₹844 GST

MRP ₹12,269 54% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	3309 ATN9/C3
Bore Diameter	45 mm
Outer Diameter	100 mm
Width	39.7 mm
Basic Dynamic Load	75 kN
Contact Angle	30 deg
Enclosure	Open
Limiting Speed	6700 rpm
Lubrication Enhancement	Standard
Operating Temperature	Upto 120 deg C
Radial Internal Clearance	C3
Bore Type	Standard
Cage Material	Polyamide
Type of Ball Bearing	Angular Contact
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 3309 ATN9/C3 Angular Contact Ball Bearing, the perfect addition to our wide range of Ball Bearings. This high-quality bearing is designed to provide exceptional performance and durability. With its angular contact design, it ensures smooth and efficient operation, making it suitable for various applications.

The Imported 3309 ATN9/C3 Angular Contact Ball Bearing is built to withstand challenging conditions, with an operating temperature of up to 120 degrees Celsius. Its cage material is made of polyamide, known for its strength and resistance to wear and tear. With a width of 39.7mm, this bearing offers stability and reliability.

Featuring a limiting speed of 6700 rpm, this ball bearing guarantees optimal performance even at high speeds. The standard bore type and a bore diameter of 45mm ensure compatibility with a wide range of equipment and machinery. Choose the Imported brand for unparalleled quality and reliability in the world of ball bearings.

Browse through the extensive list of Ball Bearings at Moglix. Shop online for other Imported Ball Bearings. available at Moglix in the lowest price range.
