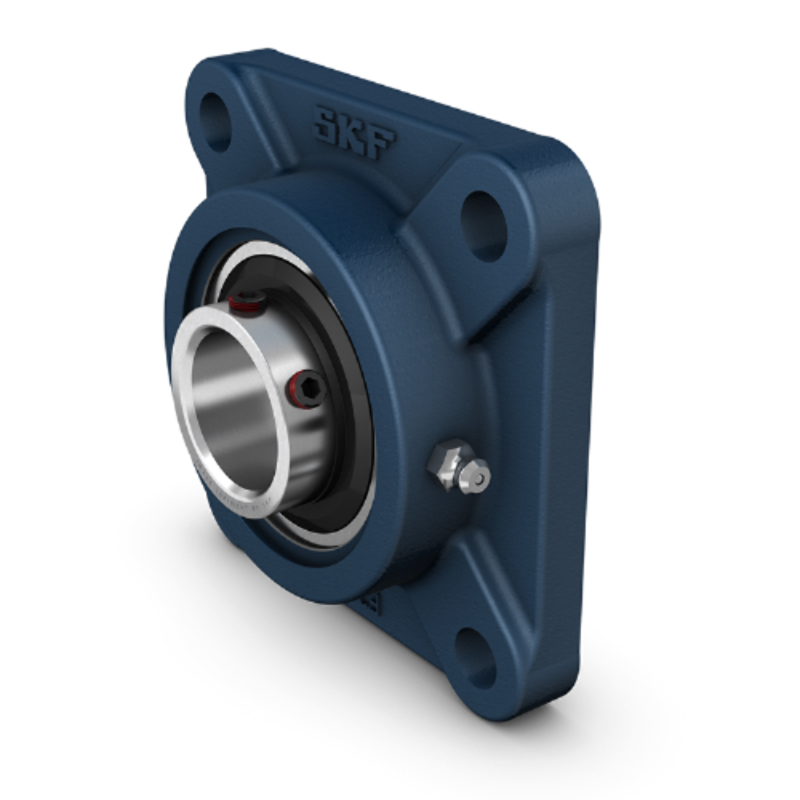

Imported 35mm 4-Bolt Flange Housing Set Screw Type Insert Bearing Flanged Unit for Metric Shaft, UCF 207

Name: Imported 35mm 4-Bolt Flange Housing Set Screw Type Insert Bearing Flanged Unit for Metric Shaft, UCF 207
Brand: Imported
SKU: MSNR50NO73L251
Price: 980 INR
Availability: OutOfStock

₹980 (Incl. of all taxes)

₹830 + ₹150 GST

MRP ₹1,976 50% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Additional Details	Appropriate End Cover: UCY 207
Base Width	15.1 mm
Basic Dynamic Load	25.5 kN
Basic Static Load	15.3 kN
Bearing Number	UC 207
Bearing Type	Ball Bearing
Bolt Size	M12
Centre Distance Between Bolt Holes	92 mm
Dynamic Load Rating	25.5 kN
Fatigue Load Limit	0.7 kN
Hole Diameter	14 mm
Housing Number	F 207
Housing Width	32 mm
Item Code	UCF 207
Limiting Speed	4300 rpm
Locking Device	Set Screw
Material	Cast Iron
Mounting type	Thread Grub Screw
Overall Length	117.5 mm
Overall Unit Width	44.4 mm
Shaft Diameter	35 mm
Shape	Flange
Static Load Rating	15.3 kN
Unit Number	UCF 207
Weight	1.25 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Flanged Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

The Imported 35mm 4-Bolt Flange Housing Set Screw Type Insert Bearing Flanged Unit for Metric Shaft, UCF 207 is a high-quality flange bearing designed for durability and efficiency. It belongs to the Flange Bearings category and is proudly manufactured by the brand Imported. With a bolt size of M12 and a weight of 1.25 kg, this bearing provides a secure and stable connection. The housing number F 207 and mounting type of threaded grub screw ensure easy installation and maintenance. Its hole diameter of 14 mm and basic static load of 15.3 kN make it suitable for various applications. The static load rating of 15.3 kN guarantees its reliability and performance in demanding conditions. Trust in this Imported flange bearing for exceptional performance and long-lasting durability.
