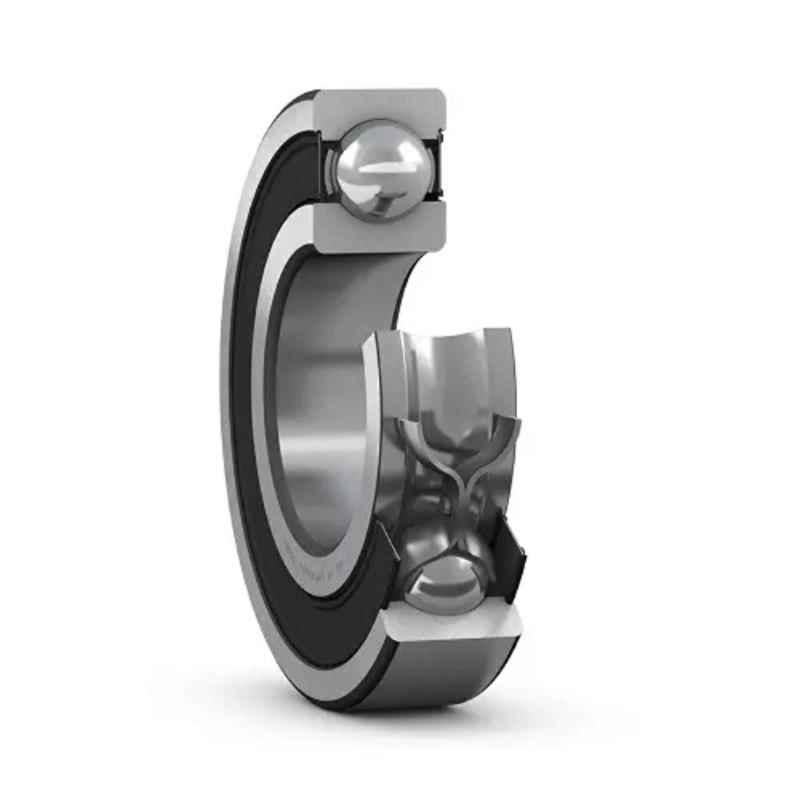

Imported 45x100x25mm Deep Groove Ball Bearing, 6309-2RS1

Name: Imported 45x100x25mm Deep Groove Ball Bearing, 6309-2RS1
Brand: Imported
SKU: MSNE5N8Y7WEYKL
Price: 769 INR
Availability: OutOfStock

₹769 (Incl. of all taxes)

₹651 + ₹118 GST

MRP ₹1,715 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6309-2RS1
Bore Diameter	45 mm
Outer Diameter	100 mm
Width	25 mm
Limiting Speed	4500 rpm
Additional Details	Fillet Radius: min. 1.5 mm Radius of Shaft/Housing Fillet: max. 1.5 mm Recess Diameter: 86.7 mm Housing Diameter: max. 91 mm Fatigue Load Limit: 1.34 kN Material: Steel Shaft Diameter: 54-62.1 mm Shoulder Diameter: 62.18 mm
Dynamic Load Rating	55.3 kN
Static Load Rating	31.5 kN
Type of Ball Bearing	Deep Groove
Weight	0.86 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB Road, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the Imported 45x100x25mm Deep Groove Ball Bearing, 6309-2RS1, your ultimate solution for high-performance ball bearings. This product belongs to our extensive range of ball bearings, ensuring top-notch quality and excellent durability. Designed with a deep groove, this ball bearing provides exceptional efficiency and reliability in various applications. With a limiting speed of 4500 rpm, this bearing guarantees optimum performance, even in demanding conditions. Weighing only 0.86 kg, it offers lightweight maneuverability without compromising its superior strength. Boasting a width of 25 mm and a bore diameter of 45 mm, this ball bearing is perfect for precision engineering projects. It features a static load rating of 31.5 kN, guaranteeing exceptional load-bearing capacity. Additionally, this product comes with a fillet radius of a minimum of 1.5 mm, ensuring enhanced structural integrity. Trust the Imported brand for superior ball bearings that will elevate your machinery's performance to new heights.
