Imported 45x100x25mm Deep Groove Ball Bearing, 6309-RS1

Name: Imported 45x100x25mm Deep Groove Ball Bearing, 6309-RS1
Brand: Imported
SKU: MSNE9J8RQND09D
Price: 719 INR
Availability: OutOfStock

₹719 (Incl. of all taxes)

₹609 ₹110 GST

MRP ₹1,602 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6309-RS1
Bore Diameter	45 mm
Outer Diameter	100 mm
Width	25 mm
Limiting Speed	4500 rpm
Additional Details	Fillet Radius: min. 1.5 mm Radius of Shaft/Housing Fillet: max. 1.5 mm Recess Diameter: 86.7 mm Housing Diameter: max. 91 mm Fatigue Load Limit: 1.34 kN Material: Steel Shaft Diameter: 54-62.1 mm Shoulder Diameter: 62.18 mm
Dynamic Load Rating	55.3 kN

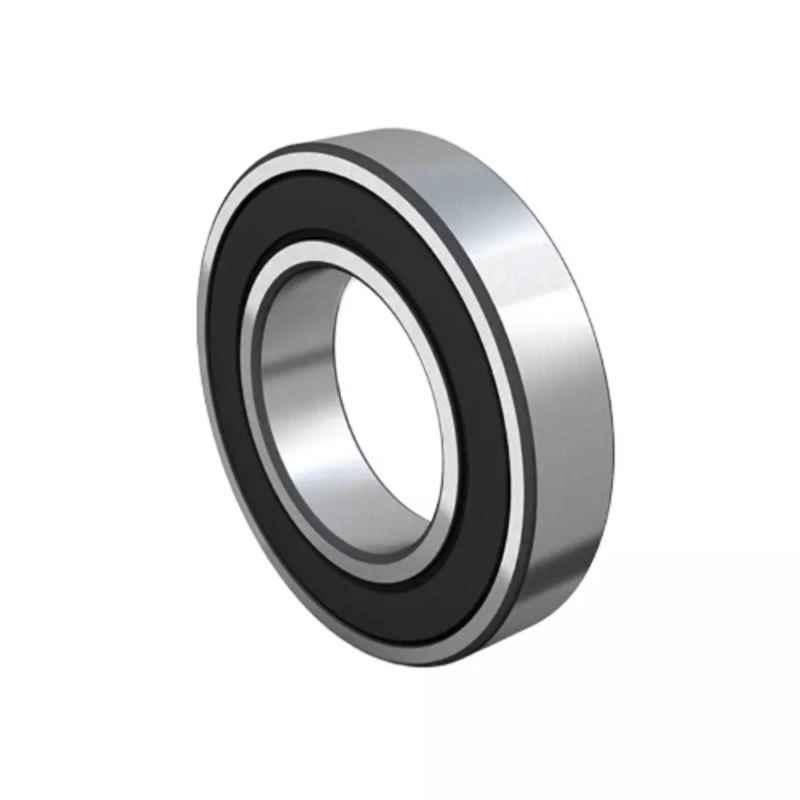

Notes	Image for reference purposes only
Static Load Rating	31.5 kN
Type of Ball Bearing	Deep Groove
Weight	0.84 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the 'Imported 45x100x25mm Deep Groove Ball Bearing, 6309-RS1' from the renowned brand Imported, your trusted source for high-quality bearings. This exceptional ball bearing falls under the Ball Bearings category, making it an essential component for various industrial applications. Crafted with precision, this ball bearing features a deep groove design, ensuring optimal performance and reliability.

With a limiting speed of 4500 rpm, this ball bearing guarantees smooth and efficient operation in demanding environments. Its compact design with a width of 25mm allows easy integration into your machinery, enhancing productivity and performance. Weighing just 0.84 kg, it offers ease of handling and installation.

Engineered for durability, this ball bearing boasts a static load rating of 31.5 kN, ensuring exceptional resilience and longevity. The bore diameter of 45mm provides a secure and precise fit, minimizing any operational disruptions.

Please note that the image provided is for reference purposes only, allowing you to visualize the product accurately. Invest in the 'Imported 45x100x25mm Deep Groove Ball Bearing, 6309-RS1' for superior performance and reliability in your industrial needs.
