Imported 45x100x25mm Deep Groove Ball Bearing, 6309-Z

Name: Imported 45x100x25mm Deep Groove Ball Bearing, 6309-Z
Brand: Imported
SKU: MSNO5WNVGV1R51
Price: 729 INR
Availability: OutOfStock

₹729 (Incl. of all taxes)

₹617 ₹112 GST

MRP ₹1,620 55% OFF

AVAILABLE ON REQUEST

About This Product

Product Specifications

Brand	Imported
Bearing Number	6309-Z
Bore Diameter	45 mm
Limiting Speed	9500 rpm
Outer Diameter	100 mm
Width	25 mm
Additional Details	Fillet Radius: min. 1.5 mm Radius of Shaft/Housing Fillet: max. 1.5 mm Recess Diameter: 86.7 mm Housing Diameter: max. 91 mm Fatigue Load Limit: 1.34 kN Material: Steel Shaft Diameter: 54-62.1 mm Shoulder Diameter: 62.18 mm
Dynamic Load Rating	55.3 kN

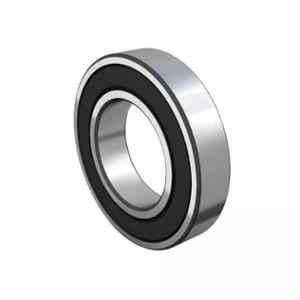

Notes	Image for reference purposes only
Reference speed	15000 rpm
Static Load Rating	31.5 kN
Type of Ball Bearing	Deep Groove
Weight	0.85 kg
Country of origin	China
Manufacturer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Packer Details	No. 7, Lijing Road, Jiangbei New Area, Nanjing, Jiangsu, China
Importer Details	10 BRBB ROAD, Canning St, Kolkata, West Bengal-700001, India
Common/Generic Name	Ball Bearing
Dimensions LxWxH	10x10x10 cm
Weight	0.2 kg

Show All Specifications

Product Details

Introducing the highly versatile Imported 45x100x25mm Deep Groove Ball Bearing, exclusively designed for exceptional performance. This top-tier ball bearing, categorized under 'Ball Bearings', is brought to you by the trusted brand, Imported. With its deep groove construction, this ball bearing ensures optimal functionality and reliable operation.

Engineered to perfection, this deep groove ball bearing boasts a maximum limiting speed of 9500 rpm, guaranteeing smooth and efficient rotation. Not only that, but it also offers a superior static load rating of 31.5 kN, making it perfect for heavy-duty applications.

With a conveniently compact size of 45x100x25mm and a svelte weight of 0.85 kg, this ball bearing is incredibly lightweight, making it easy to handle and install. The precisely manufactured 25mm width and 45mm bore diameter ensure a precise fit and efficient operation.

Please note that the displayed image is for reference purposes only and the actual product may slightly differ. In conclusion, invest in the Imported 45x100x25mm Deep Groove Ball Bearing today for exceptional performance, reliability, and longevity.
